Cable alargador de corriente Renkforce SATA 15 polos macho a 15 polos hembra, 0,30 m, negro/rojo/amarillo

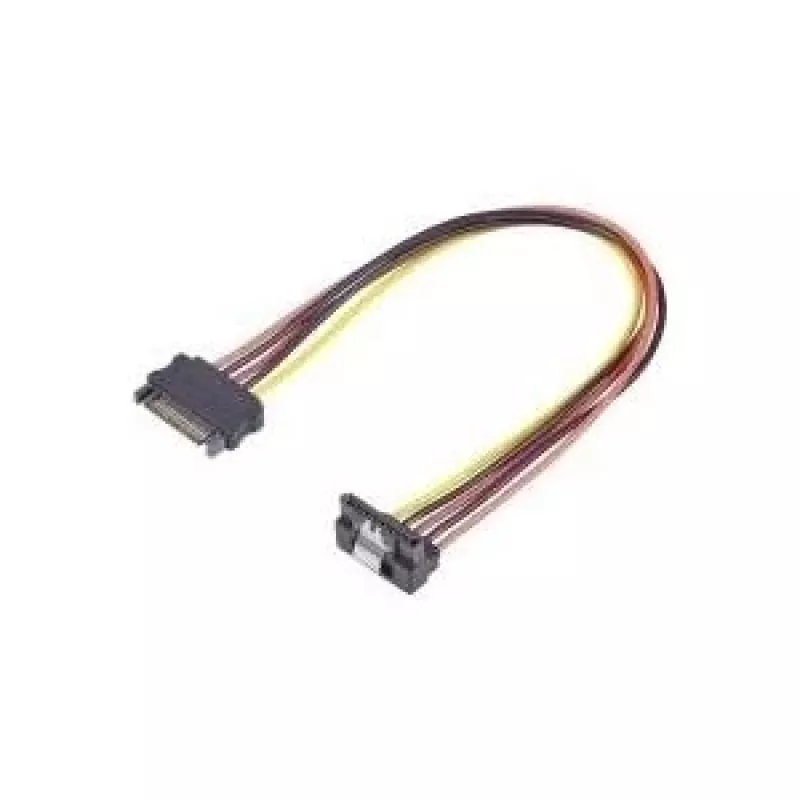

Renkforce SATA 15-pin power extension cable (0.30 m) provides a straightforward way to extend an existing SATA power connection inside a PC case. The cable features a 15-pin SATA power male connector to a 15-pin SATA power female connector and uses the standard black, red and yellow wiring for the 3.3V, 5V and 12V rails. It is intended to increase reach between the power supply unit and SATA storage or optical drives when original cables are too short.

Advantages

The extension maintains the standard pinout and voltage rails, preserving compatibility with SATA SSDs, HDDs and optical drives. With a compact 0.30 m length and a flexible sheath in black with red/yellow wiring, the cable is easy to route in most PC cases and helps avoid strain on existing connectors. The simple male-to-female design enables quick installation without tools or additional adapters.

Suitable for

• Extending PSU-to-drive power connections inside desktop PC cases
• Connecting SATA SSDs and HDDs located further from the power supply
• Providing additional reach for internal optical drives
• Temporary or permanent routing where original cables are too short

Key specifications

• Connector type: 15-pin SATA power male to 15-pin SATA power female
• Cable length: 0.30 m
• Wiring: standard 3.3V (orange/lead), 5V (red), 12V (yellow) rails using black ground
• Colour: black cable jacket with visible red and yellow leads
• Usage environment: internal PC case power extension for SATA devices

How to use

Power off the computer and disconnect it from mains before installation. Locate the existing SATA power lead from the power supply and plug the male end of the extension into the PSU cable or existing connector. Connect the female end of the extension to the SATA device's power port. Ensure connectors are fully seated and that cable routing does not interfere with fans or moving parts. Restore power and verify that the drive is detected by the system.

Recommendations

Use this extension only for internal SATA power connections; do not expose the cable to liquids, excessive heat or sharp edges. Check that the device does not require non-standard power pins or voltages and avoid daisy-chaining many extensions to prevent voltage drop.
