Cable alargador DisplayPort DeLOCK 87084 3 m 8K 60 Hz conector macho 90° hacia arriba a conector hembra

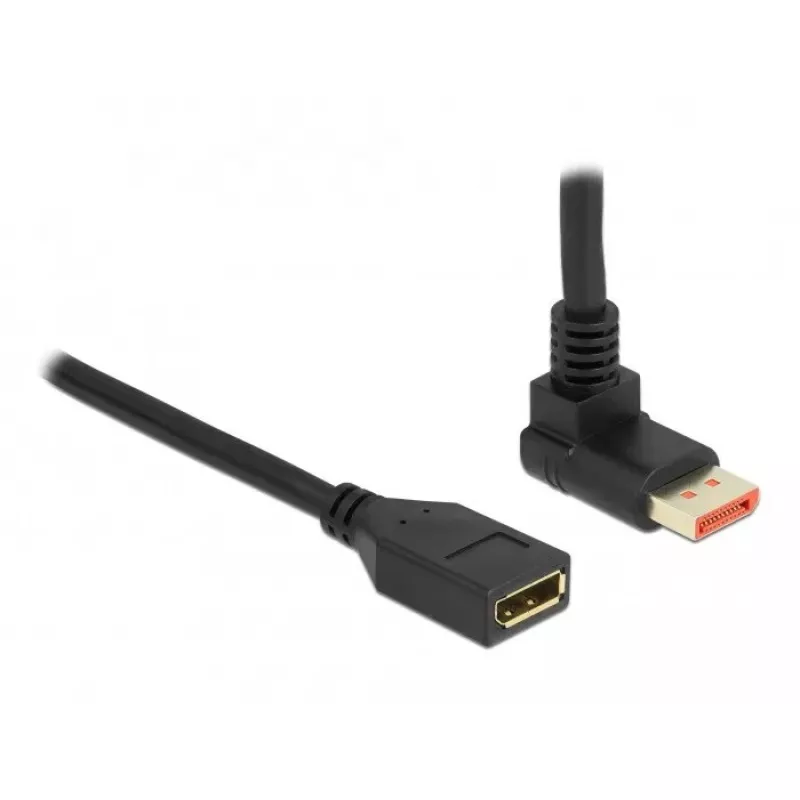

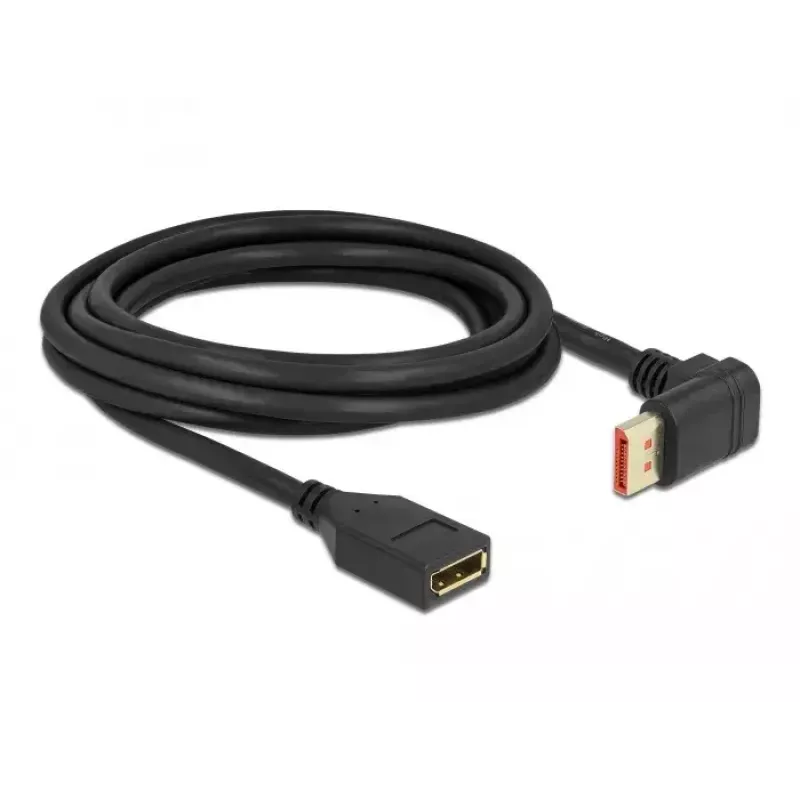

The DeLOCK DisplayPort extension cable model 87084 extends a DisplayPort connection with a 90° upwards angled male connector and a female connector. The 3 m, 7 mm diameter, triple-shielded cable supports resolutions up to 8K Ultra HD (7680 x 4320 @ 60 Hz) and is downwards compatible to 4K. The cable is black and designed for use where space is limited.

Advantages

Triple shielding reduces signal interference and helps maintain stable high-resolution output. The 90° upwards angled male connector minimizes stress on the port and simplifies connection in tight spaces. A 3 m length provides additional reach between monitor and source without repeating or active components.

Suitable for

• Connecting a PC or laptop to a monitor or display at long distance
• Setups with limited rear clearance where a straight connector would not fit
• High-resolution video applications up to 8K @ 60 Hz or 4K displays

Key specifications

• Manufacturer: DELOCK
• Model: 87084
• Cable length: 3 m
• Supported resolution: up to 8K Ultra HD (7680 x 4320 @ 60 Hz), downwards compatible to 4K
• Connector 1: DisplayPort (male, 90° upwards)
• Connector 2: DisplayPort (female)
• Product colour: Black
• Diameter: 7 mm
• Shielding: triple shielded
• MPN: 87084
• EAN: 4043619870844

How to use

Insert the 90° upwards DisplayPort male connector into the source device (PC, laptop or graphics card) with the angled side aligned to avoid port strain, then connect the DisplayPort cable from your monitor to the female connector. Ensure both devices are powered off when connecting or disconnecting to prevent hot-plug issues. After connections are made, power on the devices and select the correct input on the display if necessary.

Recommendations

For best performance at 8K @ 60 Hz use a DisplayPort 1.4-compatible graphics source and monitor and avoid running the cable near large sources of electromagnetic interference. If using longer runs or multiple adapters, verify signal integrity and compatibility with your devices.
