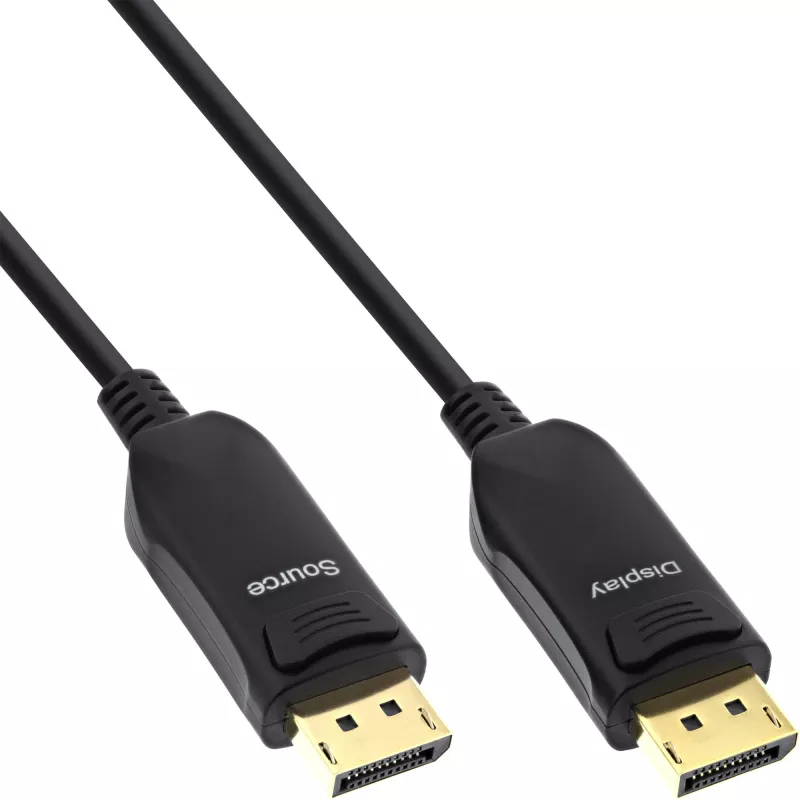

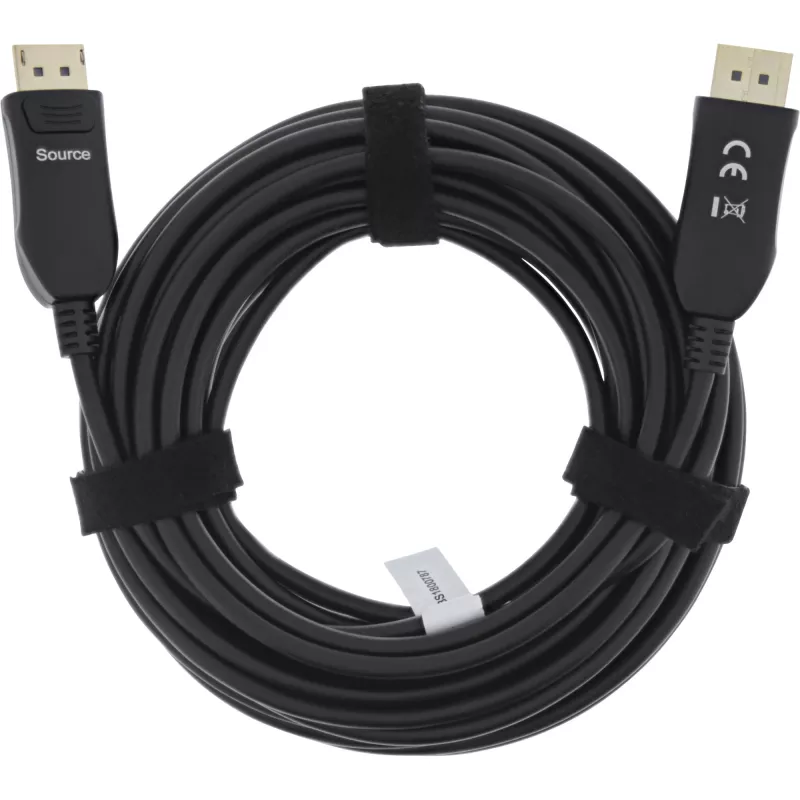

Cable AOC DisplayPort 2.1 InLine, UHBR, negro 25 m

Future-proof technology: Supports the latest DisplayPort 2.1 standard for highest data rates and full compatibility with modern systems.
Lossless transmission: The active optical cable solution (AOC) enables interference-free signal transmission over up to 3 meters.
Maximum picture quality: Supports resolutions up to 10K @ 60 Hz with DSC, 8K @ 60 Hz or 4K @ 144 Hz - ideal for graphics-intensive applications.
Rugged and durable: Aramid-protected TPU cable with metal connectors and gold-plated contacts for durable use.
Easy integration: Plug & play functionality enables fast, error-free installation in professional system environments.

The InLine® DisplayPort 2.1 AOC cable was developed for professional requirements in IT environments where the highest signal quality and reliability are required. The combination of active optical technology and high-quality workmanship enables data transfer rates of up to 54 Gb/s - ideal for graphics-intensive applications such as CAD, multimedia productions or high-end presentation systems.
The hybrid cable combines four optical fibers and seven copper wires for an optimal balance between range and performance. Thanks to the directional design with robust metal connectors, a secure and stable connection is possible. The cable supports current standards such as HDCP2.2, EDID and DPCP and is fully backwards compatible with DisplayPort 1.4 and 1.2.
The black TPU sheathing with aramid-reinforced inner structure effectively protects the cable from wear and tear and mechanical stress. Installation is straightforward via Plug & Play, without additional configuration. Ideal for use in conference rooms, control centers, industrial facilities or IT infrastructures.

Hybrid cable with 4 optical fibers & 7 copper strands
Cable diameter: Ø 4.8 mm, aramid-reinforced
Gold-plated DisplayPort metal connectors
Max. Data rate: 54 Gb/s (UHBR 13.5)
Supports: 3D, HDCP2.2, DPCP1.0, EDID
DisplayPort version: 2.1, backwards compatible with DP 1.4 / 1.2
Maximum resolutions: 10K @ 60Hz (DSC), 8K @ 60Hz (4:4:4 8-bit), 4K @ 144Hz
Plug & Play: no driver installation required
Color: black

InLine DisplayPort 2.1 AOC cable, UHBR, black 25m. Cable length: 25 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Cable diameter: 4.8 mm, Weight: 561 g. Package width: 205 mm, Package depth: 215 mm, Package height: 67 mm. Country of origin: Germany. Depth: 25000 mm, Height: 10 mm, Width: 20 mm

How to use

Connect one DisplayPort connector to the source device (for example a PC or graphics card) and the other connector to the DisplayPort input of the monitor or display. Ensure both devices support DisplayPort 2.1 to take full advantage of UHBR bandwidth. No drivers or additional power are required; the cable is plug & play. Route the flexible cable as needed, avoiding sharp bends below the manufacturer’s recommended bend radius and protecting it from mechanical damage.

Recommendations

For optimal performance, use the cable with devices that explicitly support DisplayPort 2.1 and UHBR modes. Avoid tight bends and pinch points, and secure the cable in fixed installations to prevent strain on connectors. If maximum resolution or refresh rate is not achieved, verify source and sink device settings and firmware compatibility.
