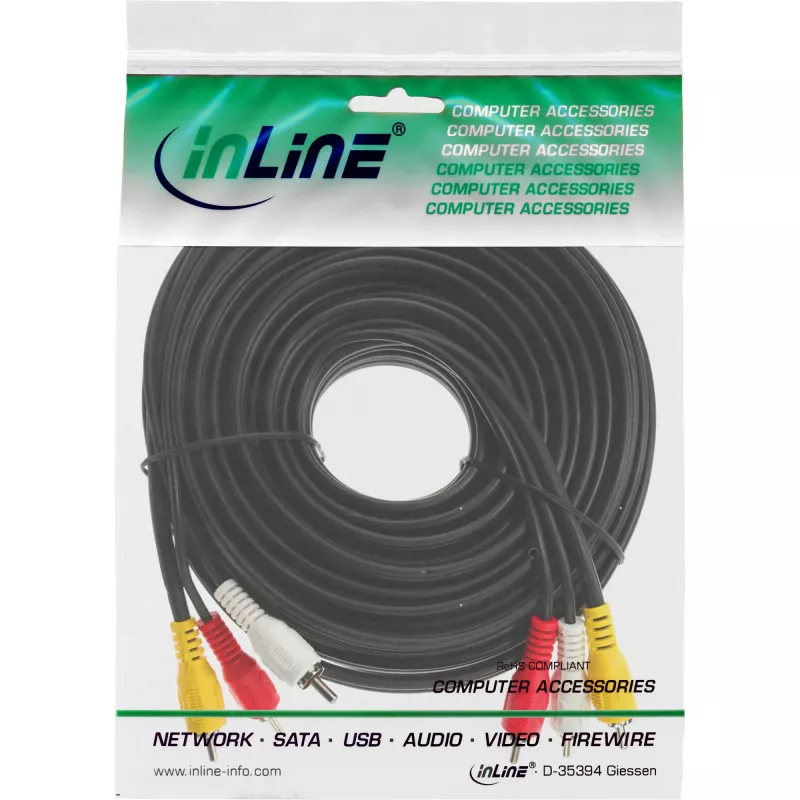

Cable AV 3x conector RCA macho/macho 10 m InLine 89610

Reliable audio and video transmission:The 3x RCA cable enables the analogue transmission of video and audio signals between AV devices equipped with the appropriate RCA connectors.
Standardised 3x RCA configuration:3x RCA male to 3x RCA male connectors ensure a direct and compatible connection without the need for additional adapters.
Colour-coded signal assignment:Red and white for audio and yellow for video enable quick, error-free installation and clear channel separation.
Optimised video cable:The video cable with a larger diameter supports stable signal transmission when transmitting the video signal.
Flexible length options:Available in 0.5 metres, 1 metre, 1.5 metres, 2 metres, 3 metres, 5 metres and 10 metres for project planning tailored to your needs.

The InLine® RCA cable with 3x RCA plugs to 3x RCA plugs is designed for the analogue transmission of audio and video signals between devices with the appropriate AV interface. It is suitable for standard audio/video connections within existing installations.
The standardised 3x RCA configuration allows for a direct connection without additional adapters. The colour-coding of the connectors – red and white for audio and yellow for video – ensures clear signal identification and facilitates quick installation.
A special feature is the video cable with a larger diameter. It supports stable transmission of the video signal in the analogue AV sector.
As it is available in several defined lengths, the cabling can be planned flexibly and according to requirements. The cable is available in 0.5 metres, 1 metre, 1.5 metres, 2 metres, 3 metres, 5 metres and 10 metres.

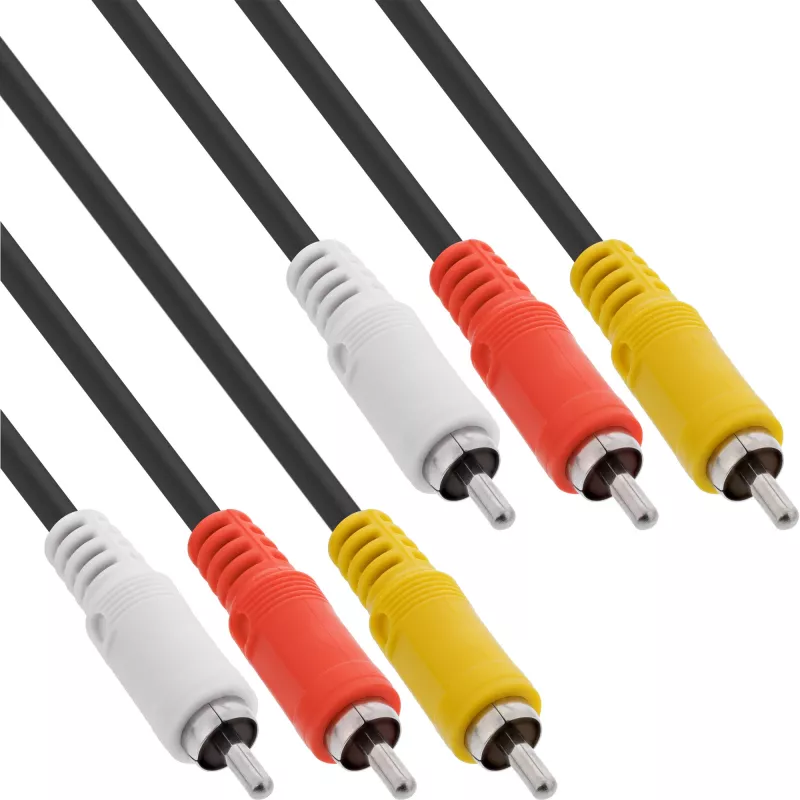

Connector type: 3x RCA plug to 3x RCA plug
Signal type: Audio / Video
Audio channels: 2x RCA (red / white)
Video channel: 1x RCA (yellow)
Video cable: larger diameter

InLine AV Cable 3x RCA male / male 10m. Connector 2: 3 x RCA, Connector contacts plating: Gold, AWG wire size: 24/28, Cable length: 10 m, Product colour: Black

How to use

Connect the three RCA plugs on one end to the corresponding color-coded RCA inputs or outputs (Video = yellow, Audio left = white, Audio right = red) on the source device and the three plugs on the other end to the matching jacks on the display or receiver. Ensure snug connections and route the cable to avoid sharp bends. Select the correct input on the TV or AV receiver to view the connected device.

Recommendations

For best signal integrity, keep the cable away from large power cables and sources of electromagnetic interference. If available, use the shortest length necessary for the installation; for high-definition sources consider using component, HDMI, or digital connections where supported.
