Cable Bachmann 3 m Schuko H05VV-F 3G 1,50 mm² blanco

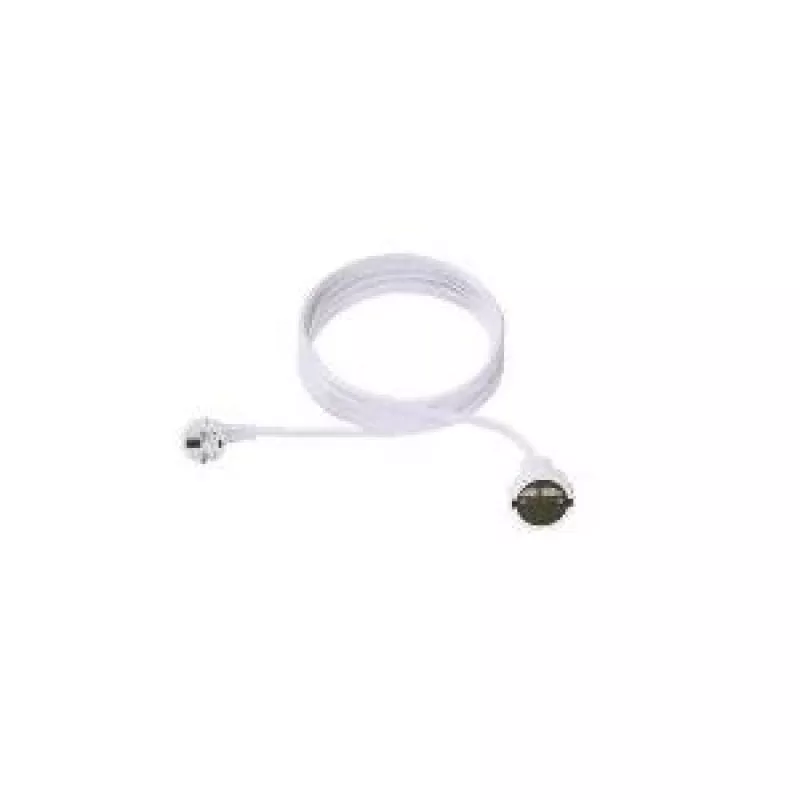

The Bachmann 3m Schuko H05VV-F 3G 1.50mm² cable provides a 3-metre flexible power connection with a Schuko earthing contact system. It is rated for 16 A and 250 V and features PVC insulation rated to 70°C. One end is a moulded right-angle plug with a dual earthing contact system; the other end is a moulded earthing contact coupling, offering reliable earthing continuity for compatible devices and installations.

Advantages

This cable combines a compact right-angle moulded plug and a moulded coupling to reduce strain at the connection points and improve usability in tight spaces. Constructed with H05VV-F 3G 1.50mm² conductors and PVC insulation, it supports up to 16 A at 250 V and is rated to 70°C for typical domestic and light-commercial use. The dual earthing contact system ensures proper grounding when connected to compatible outlets and equipment.

Suitable for

• Powering household appliances and office equipment
• Temporary connections in workshops and events
• Situations requiring a right-angle plug to save space behind furniture or equipment

Key specifications

• Brand: Bachmann
• Model / MPN: 341.285
• EAN: 4016514000722
• Cable length: 3 m
• Cable type: H05VV-F 3G 1.50 mm²
• Rated current: 16 A
• Rated voltage: 250 V~
• Insulation material: PVC, 70°C
• Colour: White

How to use

Inspect the cable and connectors for damage before use. Insert the right-angle Schuko plug into a compatible 250 V outlet until fully seated. Connect the moulded earthing contact coupling to the device or extension with a matching Schuko inlet. Do not exceed the rated current of 16 A. Avoid running the cable through sharp edges and keep it away from heat sources above 70°C.

Recommendations

Use this cable for standard mains connections where a compact right-angle plug and reliable earthing are required. Replace the cable if insulation is damaged or if contacts show signs of wear; do not attempt repairs that compromise safety.
