Cable Bachmann H05VV-F 5G 2.5mm² blanco 1,5 m

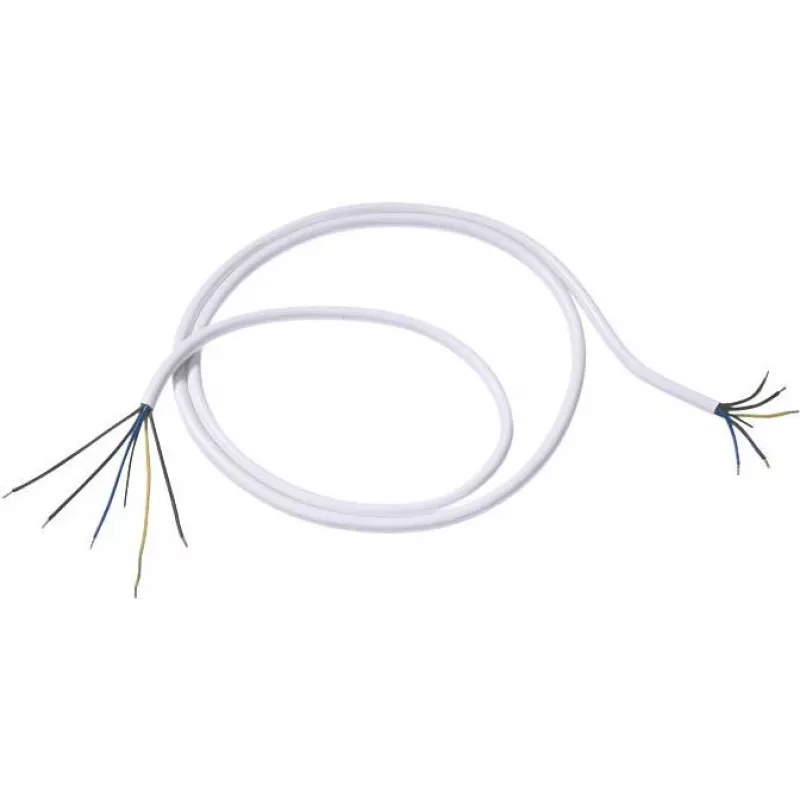

The Bachmann H05VV-F 5G 2.5mm² cable, 1.5 m long and white, is an appliance connection lead intended for connecting stoves and other fixed appliances. Constructed with five conductors each of 2.5 mm² cross-section and PVC insulation rated to 70°C, this cable provides the required conductor count and cross-section for many domestic and light commercial installations.

Advantages

The cable combines a compact length of 1.5 m with five flexible conductors, PVC outer sheath and ferrule-ready conductor ends suitable for reliable termination. Its 2.5 mm² conductor cross-section delivers good current-carrying capacity for typical stove and appliance circuits while the white outer jacket offers a discreet appearance.

Suitable for

• Connection of stoves and ovens to fixed wiring
• Wiring of large appliances requiring five conductors (including protective earth and neutral)
• Short power runs in residential or light commercial installations

Key specifications

• Brand: Bachmann
• Type: H05VV-F
• Conductors: 5G (five cores)
• Cross-section: 2.5 mm² per conductor
• Length: 1.5 m
• Sheath material: PVC
• Temperature rating: 70°C
• Colour: White
• Manufacturer part number (MPN): 119270
• EAN: 4016514001040

How to use

Prepare the fixed installation cable and the appliance connection point by isolating power before work. Strip the outer sheath and individual conductors to the required length, fit ferrules (aderendhülsen) on each conductor if required and terminate into the appliance terminal block according to the appliance wiring diagram and local wiring regulations. Ensure secure mechanical fixing of the cable entry to prevent strain on terminals.

Recommendations

Use this cable only where H05VV-F type and 2.5 mm² conductor size meet the appliance and local electrical code requirements. Verify required conductor count and protective earth connection before installation. If in doubt, consult a qualified electrician.
