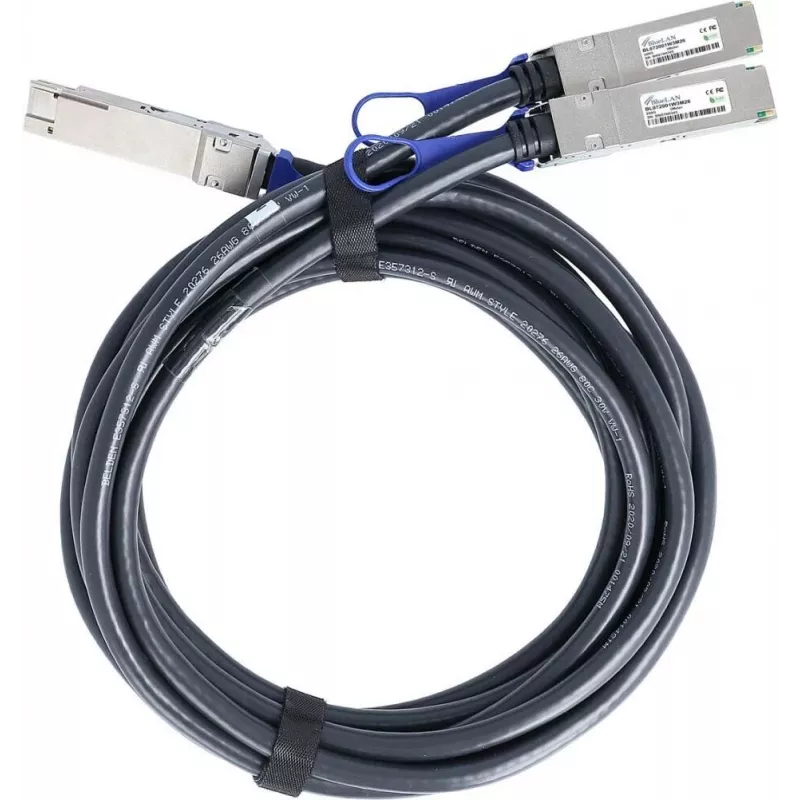

Cable Breakout Direct Attach pasivo BlueLAN QSFP56 a 2x QSFP56 BlueOptics P08244-001 compatible, 2m, AWG26

The BlueOptics P08244-001 compatible BlueLAN QSFP56 to 2x QSFP56 Passive Direct Attach Breakout Cable is a high-performance interconnect solution designed for modern data centers and high-performance computing environments. This breakout cable enables a single 200GBASE-CR4 QSFP56 port to connect to two 100GBASE-CR2 QSFP56 ports, providing flexible and cost-effective network upgrades.

Advantages

This cable offers seamless compatibility with HPE P08244-001 equipment, ensuring reliable operation without the need for additional configuration. Its passive copper design consumes zero power, reducing overall energy costs and heat generation. The breakout configuration maximizes port utilization and simplifies cable management.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Network aggregation and core switching
• Storage area networks requiring high bandwidth

Key specifications

• Connector A: QSFP56
• Connector B: 2x QSFP56
• Data Rate: 200 Gbps aggregate (4x 50 Gbps per lane on End A; 2x 100 Gbps on End B)
• Ethernet Standard: 200GBASE-CR4 to 2x 100GBASE-CR2
• Cable Length: 2 meters
• Wire Gauge: AWG26
• Cable Technology: Passive Copper
• Power Consumption: 0W (Passive)
• Hot-Pluggable: Yes
• Protocol Support: Ethernet

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP56 ports. This cable is ideal for short-reach interconnects within racks or between adjacent racks. Always handle with care to avoid damage to the connectors.
