Cable cambiador de género USB InLine 69927L — Adaptador para invertir la orientación del conector USB

USB-C connector for outdoor use:The shielded connector protects your connection from water, dust, and environmental influences thanks to its IP68 protection rating.
Reliable data transfer:Supports transfer rates of up to 5 Gb/s—ideal for industrial and outdoor applications.
Power supply included:Charging function with 5 V / 2 A – suitable for live USB connections.
Compact design with M20 thread:Enables integration into standard housings and distribution systems.
Flexible cable compatibility:Suitable for cable diameters of 1.5–4.5 mm, 4.5–7.5 mm – tool-free installation via silicone seal.

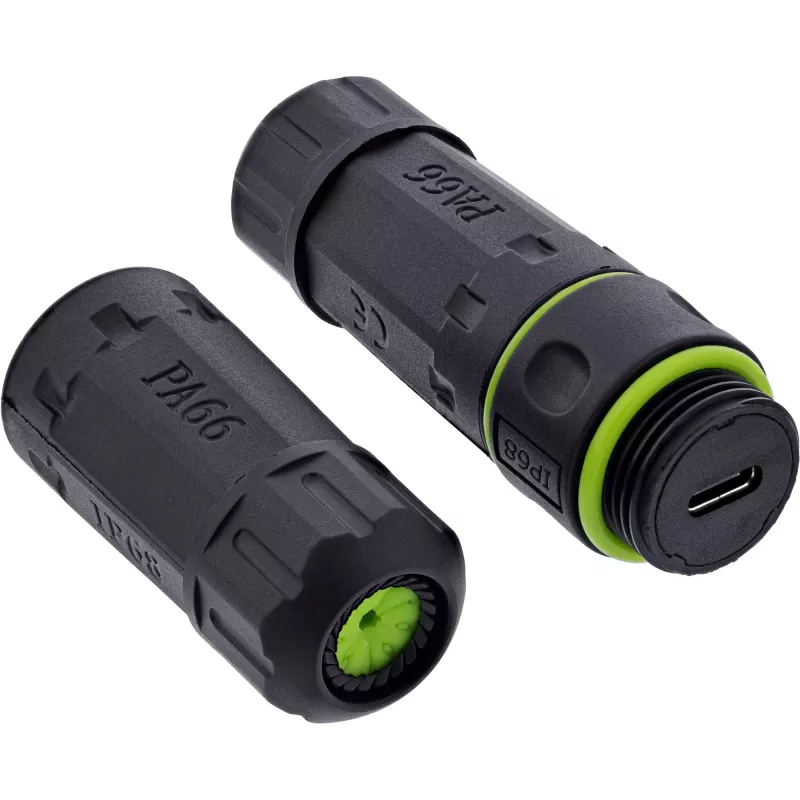

The InLine® USB-C cable coupling with IP68 protection is the robust solution for modern connections in demanding environments.

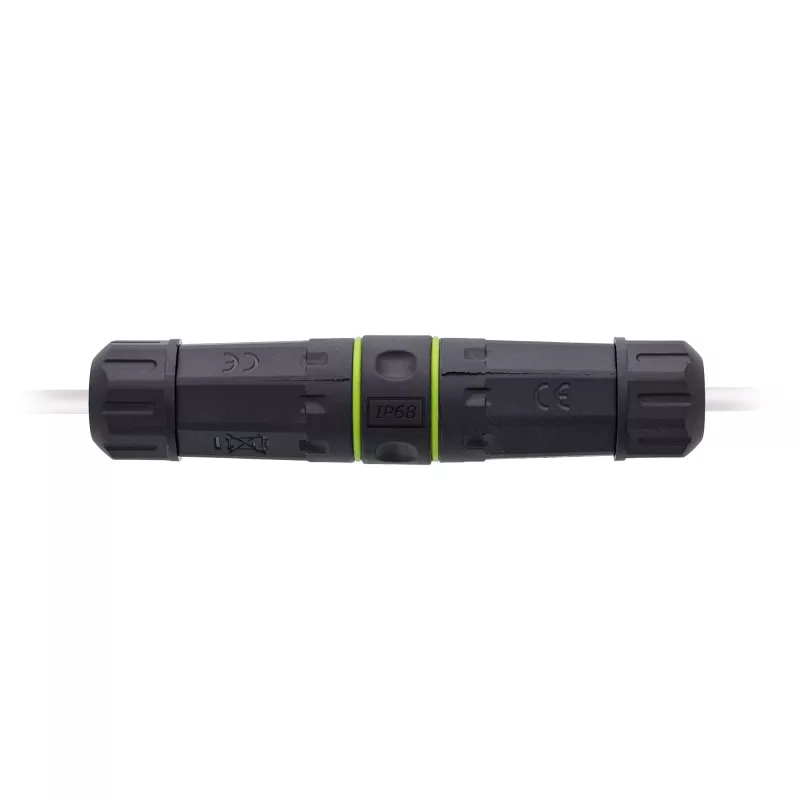

It connects two USB-C cables securely and permanently – ideal for industrial applications, outdoor areas, mobile systems, or measurement environments.
The coupler supports data transfers of up to 5 Gb/s and can simultaneously provide a power supply of 5 V at 2 A – for combined charging and data connections. The housing is made of durable PA66 and protects the connection from dust, water, and mechanical stress.
Thanks to its M20 thread, the coupler can be integrated into distribution boxes or enclosures. The included silicone seal ensures secure routing of cables with diameters between 1.5 and 4.5 mm, 4.5 and 7.5 mm. Installation is quick and tool-free, simply by screwing it in place.
Whether for connecting sensors, embedded systems, or mobile devices, the InLine® USB-C coupler provides reliable protection for your connections.

Material: Nylon (PA66)
Thread size: M20
Module: USB-C female/female
Seal: Silicone
Transfer rate: 5 Gb/s
Current: 2 A
Voltage: 5 V
Charging: yes
Protection rating: IP68
Temperature resistance: -25 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

InLine 69927L. Product type: Cable coupler, Product colour: Black, Material: Polyamide, Silicone. Compliance certificates: TÜV mark. Width: 25 mm, Depth: 125 mm, Height: 25 mm. Quantity per pack: 1 pc(s). Package width: 70 mm, Package depth: 140 mm, Package height: 30 mm

How to use

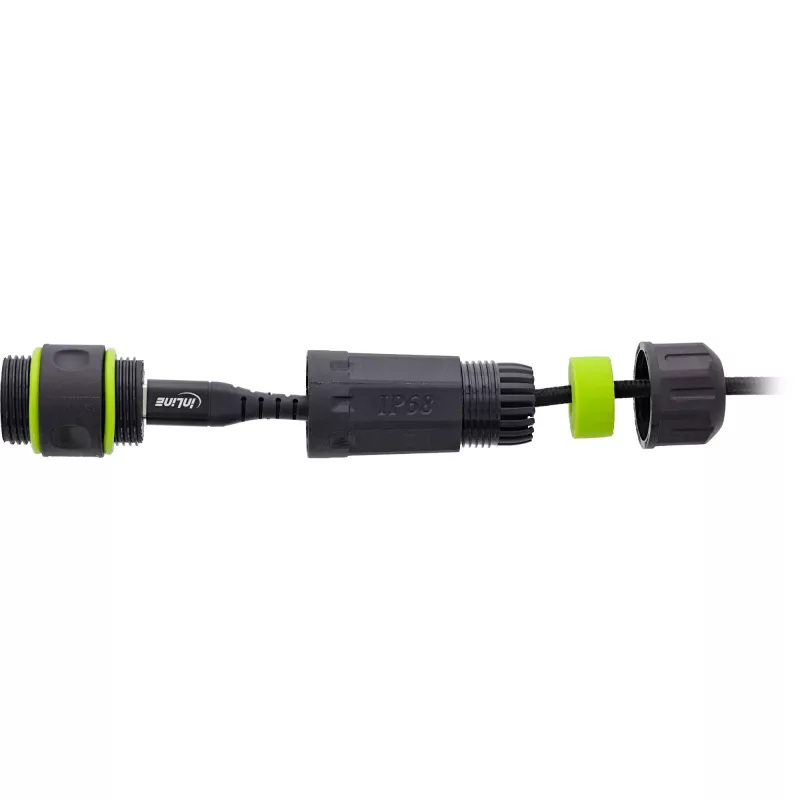

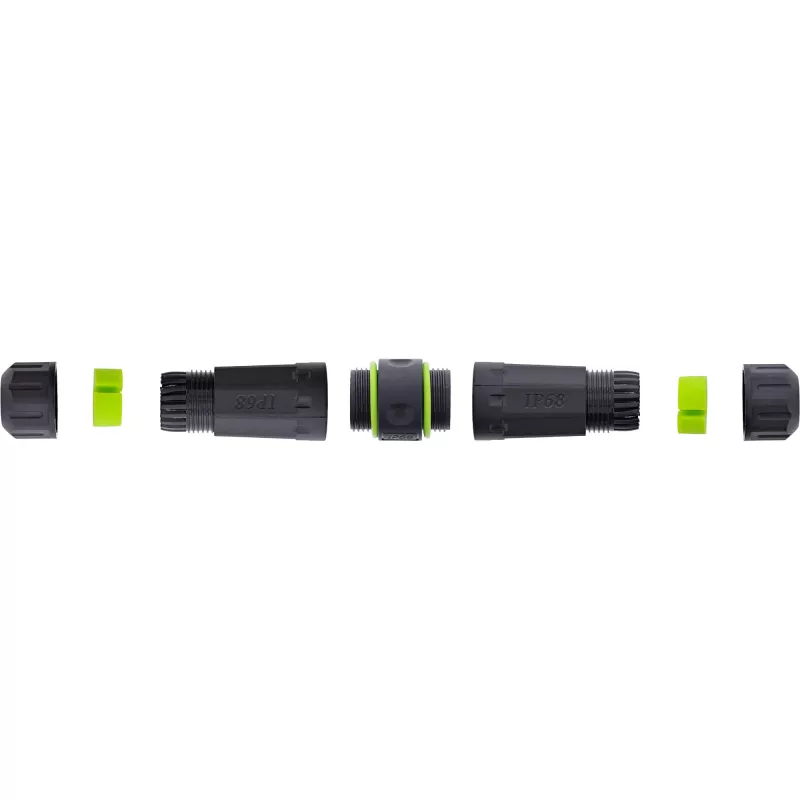

Route the two USB-C cables through the coupler and position the silicone seal according to the cable diameter. Screw the coupler into the M20 threaded opening of the enclosure or panel until it is securely seated. Connect the USB-C plugs into each side of the female/female module to establish a sealed data and power connection. No special tools are required for installation.

Recommendations

For long-term outdoor use, ensure the coupler is mounted in an appropriate enclosure and that cable entries are free of debris before sealing. Verify that connected devices do not exceed the specified 5 V / 2 A power rating and that required data speeds are within the 5 Gb/s limit.
