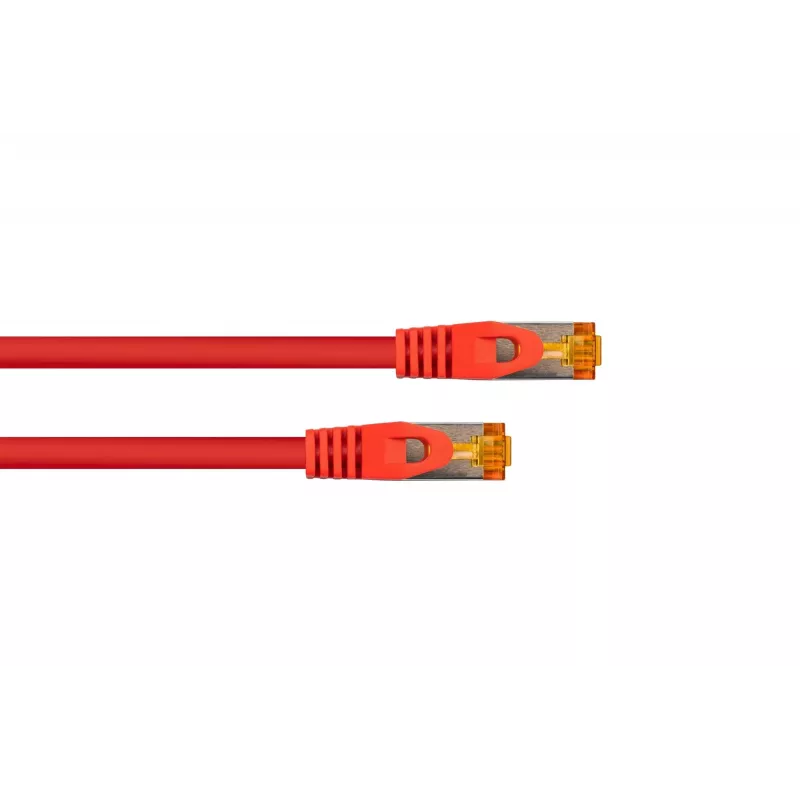

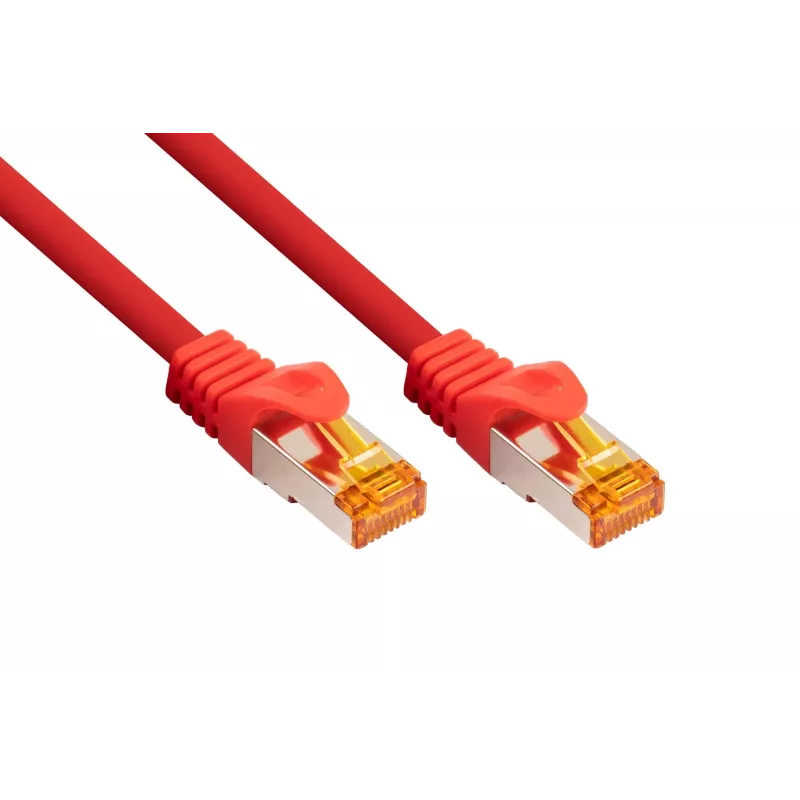

Cable Cat.7 RJ45 Patch, S/FTP, 2m, rojo, funda TPE libre de halógenos, 10 Gbps KABELMEISTER

With a 600 MHz bandwidth and full 10 Gigabit Ethernet support, this KABELMEISTER Cat.7 patch cable delivers the headroom your high-speed network demands. The S/FTP shielding (individually foil-wrapped pairs plus an overall braid) virtually eliminates crosstalk and EMI, making it ideal for data centres, server rooms, and dense office environments.

Overview

Engineered for reliability, the PK7-TPE-020R is a 2-metre red RJ45 patch cable built around a Cat.7 raw cable with a highly flexible, halogen-free TPE outer jacket. The stranded 26 AWG copper conductors (7-wire construction) provide excellent flexibility for tight bends and frequent re-patching, while gold-plated contacts (50µm) ensure consistent, corrosion-resistant connections. The cable is wired to TIA/EIA-568B and supports 10GBASE-T up to 100 metres, making it a future-proof choice for demanding applications.

What stands out

• Cat.7 (Class F) performance: 600 MHz bandwidth, up to 10 Gbps data transfer rate.
• S/FTP shielding: PiMF (pairs in metal foil) plus overall braid for superior noise immunity.
• Halogen-free TPE jacket: flexible, durable, and low-smoke zero-halogen for safety.
• Gold-plated contacts (50µm): reliable, low-resistance connections over thousands of mating cycles.
• Stranded 26/7 AWG copper conductors: ideal for patch panels and frequent moves.
• RoHS and REACH compliant, flame retardant to IEC 60332-1.

Technical details

• Cable type: RJ45 Patch Cable, Cat.7 (Class F)
• Shielding: S/FTP (PiMF + overall braid)
• Length: 2 m
• Colour: Red
• Jacket material: TPE (halogen-free, LSZH)
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold-plated contacts (50µm)
• Conductor material: Copper (Cu)
• Conductor construction: Stranded (7-wire)
• Conductor gauge: AWG 26/7
• Bandwidth: Up to 600 MHz
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Wiring standard: TIA/EIA-568B
• Flame retardancy: IEC 60332-1
• Operating temperature: -20°C to +60°C
• Standards compliance: RoHS, REACH
• Outer diameter: Approx. 6.2 mm

Our verdict

The KABELMEISTER PK7-TPE-020R is a top-tier Cat.7 patch cable that combines exceptional shielding, flexibility, and safety. Its halogen-free TPE jacket and gold-plated contacts ensure long-term reliability in demanding environments, making it an excellent investment for high-performance networks.
