Cable coaxial Alantec Trishield RG6 75 Ohm

The Alantec Coaxial Cable Trishield RG6 75 Ohm is a high-performance coaxial cable designed for reliable signal transmission in satellite TV, cable TV (CATV), terrestrial antenna, and CCTV applications. Featuring triple shielding (trishield) and a 75 Ohm impedance, this cable ensures excellent protection against electromagnetic interference (EMI) and signal loss, making it ideal for both residential and commercial installations.

Advantages

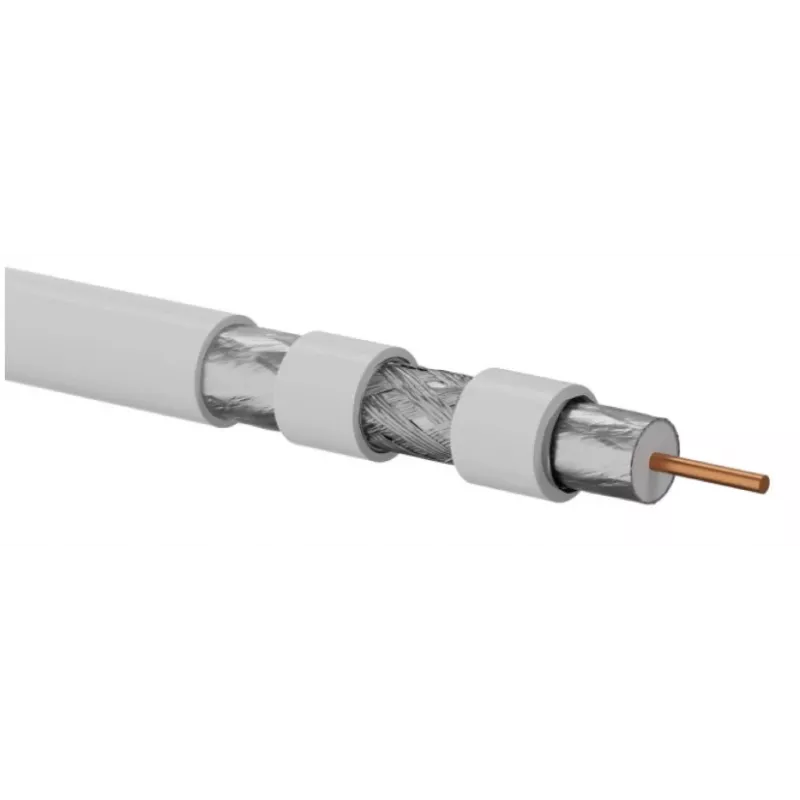

This RG6 cable offers superior shielding with three layers: bonded aluminum foil, aluminum braid (60% coverage), and an additional aluminum foil layer. The bare copper inner conductor (1.02 mm / 18 AWG) provides excellent conductivity, while the foamed polyethylene dielectric ensures low signal attenuation. The PVC jacket is durable and suitable for indoor use, and the cable is RoHS compliant.

Suitable for

• Satellite TV connections
• Cable TV (CATV) systems
• Terrestrial antenna installations
• CCTV camera connections
• Any application requiring 75 Ohm coaxial cable with high shielding

Key specifications

• Cable type: RG6
• Impedance: 75 Ohm
• Shielding: Trishield (triple shield)
• Inner conductor: Bare copper, 1.02 mm (18 AWG)
• Dielectric: Foamed polyethylene (FPE)
• Jacket material: PVC
• Outer diameter: 6.9 mm
• Braid coverage: 60%
• Capacitance: 53 pF/m
• Velocity of propagation: 85%
• Operating temperature: -20°C to +70°C
• Colour: White

Recommendations

For optimal performance, use with F-Type connectors and ensure proper termination. This cable is designed for indoor/general use and is not UV resistant. Always check compatibility with your equipment's impedance requirements.
