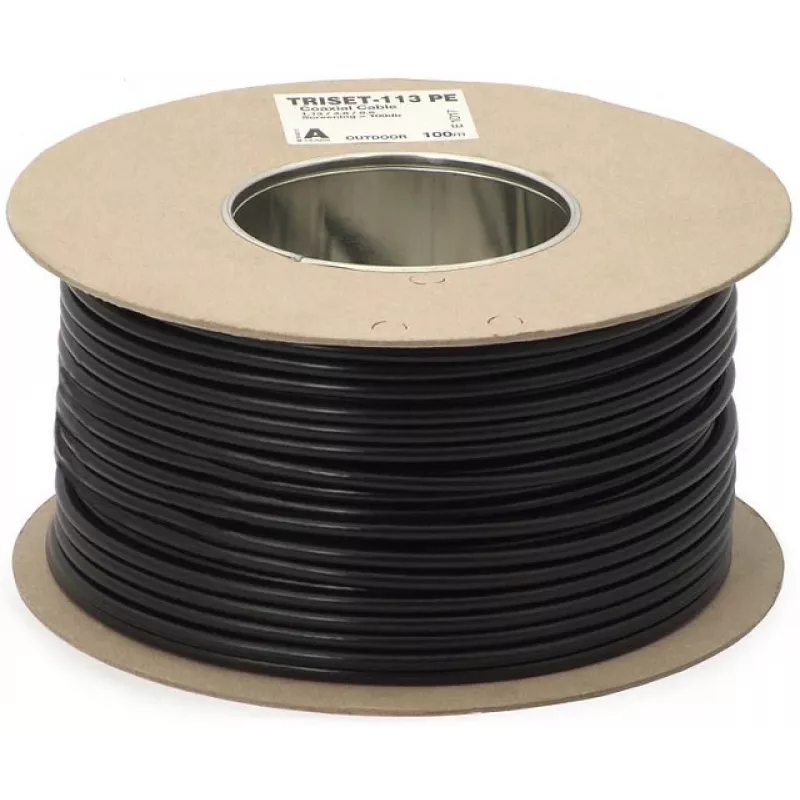

DIPOL TRISET-113 cable coaxial relleno de gel 75 Ohm funda PE clase A 100 dB

Outdoor coaxial installations often fail due to moisture ingress, which degrades signal quality over time. The DIPOL TRISET-113 gel-filled coaxial cable solves this by incorporating a water-blocking gel between its shielding layers, ensuring reliable performance even in direct burial or harsh weather conditions.

Who is it for

This cable is ideal for professional installers and network operators who need a dependable 75-ohm coaxial cable for CATV, satellite, and broadband applications in outdoor or underground environments. It suits both residential and commercial projects requiring long-term signal integrity.

Main features

• Triple shielding (Al-foil + Al-braid + Al-foil) with 77% braid coverage for excellent interference rejection.
• Gel-filled construction prevents water migration, making it suitable for direct burial.
• Class A shielding effectiveness (>100 dB) ensures minimal signal leakage and ingress.
• Solid copper inner conductor (1.13 mm) and foamed PE dielectric (4.8 mm) provide low attenuation.
• Durable PE outer jacket (6.8 mm) resists UV and abrasion for long outdoor life.
• CPR fire class Fca for basic fire safety compliance.

Specifications

• Impedance: 75 Ohm
• Inner conductor: Copper, 1.13 mm diameter
• Dielectric: Foamed PE, 4.8 mm diameter
• Outer jacket: PE, 6.8 mm diameter
• Shielding: Triple (Al-foil + Al-braid + Al-foil), braid coverage 77%
• Shielding effectiveness: >100 dB (Class A)
• Water blocking: Gel filled
• CPR fire class: Fca
• Attenuation @ 2150 MHz: ~32.0 dB/100m
• Return loss (5-3000 MHz): >16 dB

Tips

When installing, use connectors designed for 75-ohm cables with a 6.8 mm jacket to maintain shielding integrity. For direct burial, ensure the cable is laid in a trench free of sharp rocks and backfilled with sand to prevent jacket damage.
