Cable coaxial DeLOCK 88810 0,2 m MHF II RP-SMA gris

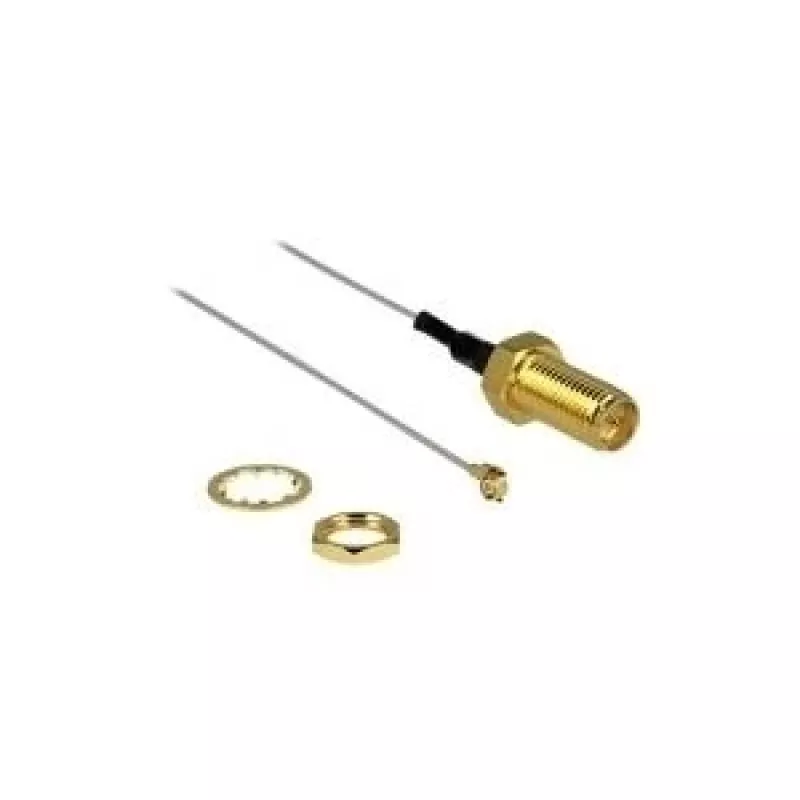

The DeLOCK 88810 coaxial cable is a 0.2 m cable with an MHF II (I-PEX) plug and an RP-SMA jack bulkhead. It is a 50 Ω coaxial connection cable with a 0.81 mm diameter conductor, intended for connecting radio frequency components where space is limited.

Advantages

The cable combines an MHF II (I-PEX) plug compatible with U.FL-LP(V)-040 (Hirose) and an RP-SMA jack bulkhead for a secure RF interface. Its short 200 mm length and small 0.81 mm diameter make it suitable for compact device layouts, while the grey jacket provides a discreet appearance. The 50 Ω impedance supports standard RF applications.

Suitable for

Key specifications

How to use

Align the MHF II (I-PEX) plug with the corresponding socket on the RF module and press gently until it clicks. Secure the RP-SMA jack bulkhead to the panel or adapter, then attach the mating RP-SMA connector from the antenna or external device. Ensure connections are not subjected to excessive bending or tension to maintain signal integrity.

Recommendations

For reliable performance, avoid repeated mating cycles at the MHF II plug and protect the cable from sharp bends. Use the cable for short interconnections in shielded environments and verify compatibility with device connector footprints before installation.
