Cable coaxial DeLOCK 89600 94,8 m SMA extremo abierto estañado dorado gris

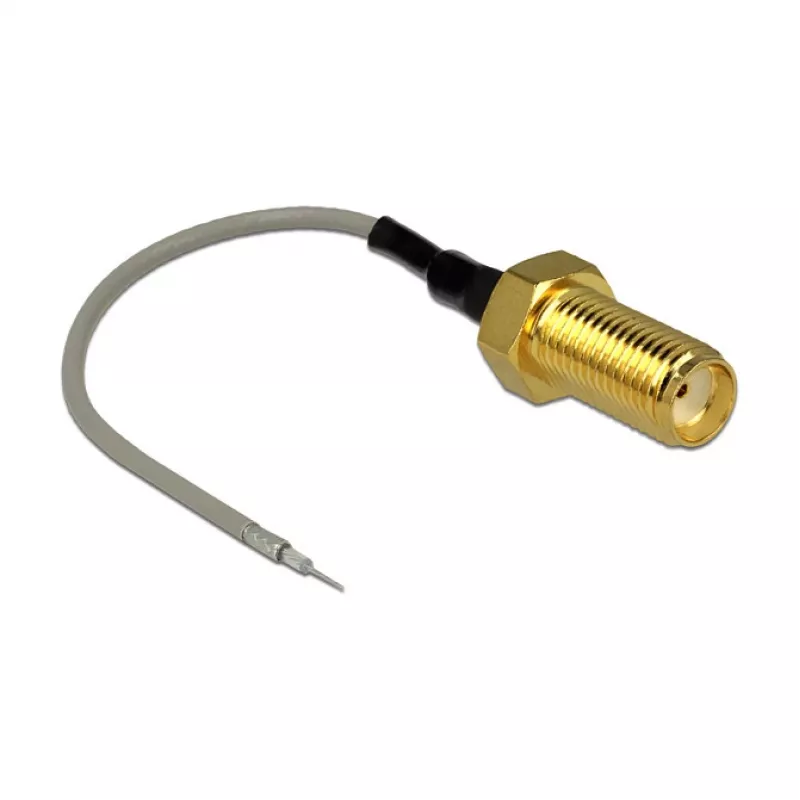

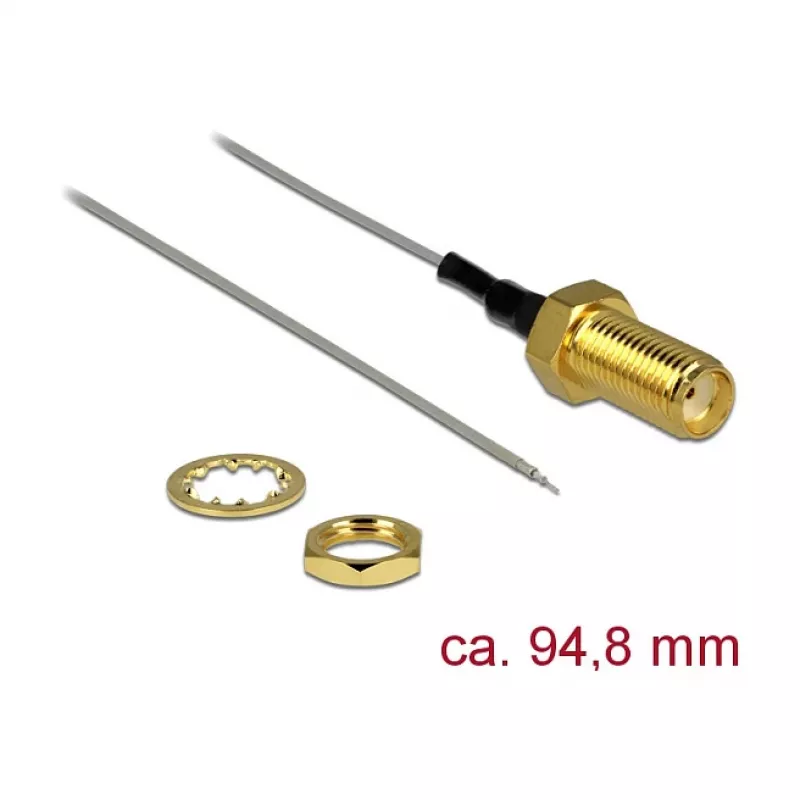

This coaxial cable from Delock is designed to supply an antenna signal inside a device. It features an SMA jack bulkhead connector on one end and an open/tinned end on the other, with a total cable length of approximately 94.8 mm. The cable has a characteristic impedance of 50 Ohm and is a coaxial type with a grey outer jacket.

Advantages

The cable provides a compact connection solution for internal antenna installations, with a standard SMA jack bulkhead for secure mounting and an open tinned end for flexible termination. With a small cable diameter and a short thread length of about 10 mm, it is suitable for tight spaces and offers moderate attenuation at 2.4 GHz.

Suitable for

Key specifications

How to use

Mount the SMA jack bulkhead into the device chassis or intended panel location and secure it using the bulkhead mounting method. Route the coaxial cable to the required internal antenna position and terminate the open tinned end by soldering or attaching to the target connector or PCB pad according to your application’s requirements. Ensure the cable bend radius is not smaller than the specified approx. 4.5 mm to avoid damage.

Recommendations

Use the cable for internal connections only and avoid exposing it to mechanical stress or outdoor conditions. Maintain recommended bend radius and verify solder joints or terminations to ensure reliable antenna performance at 2.4 GHz.
