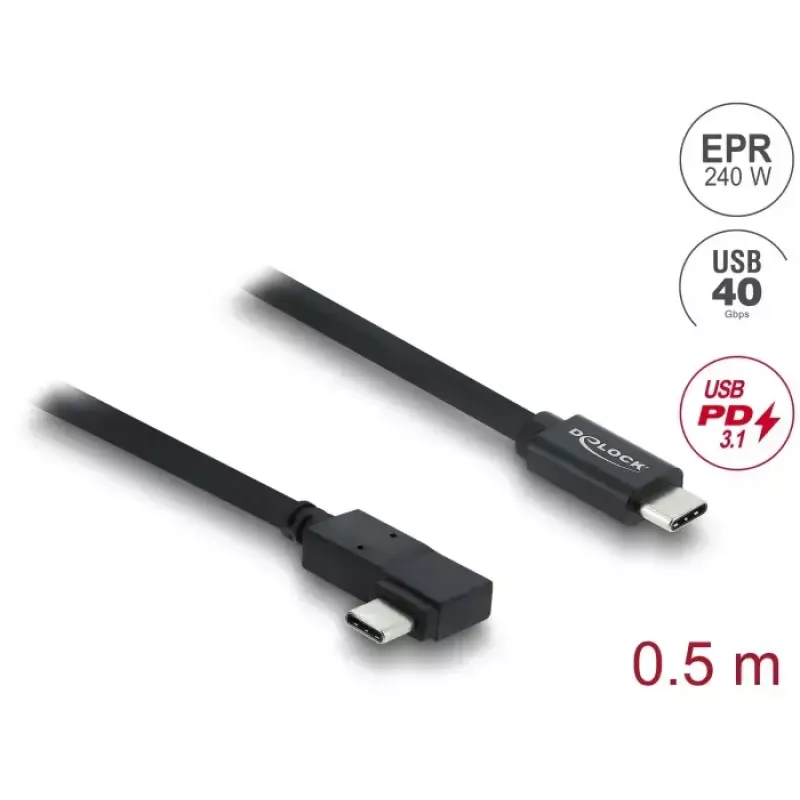

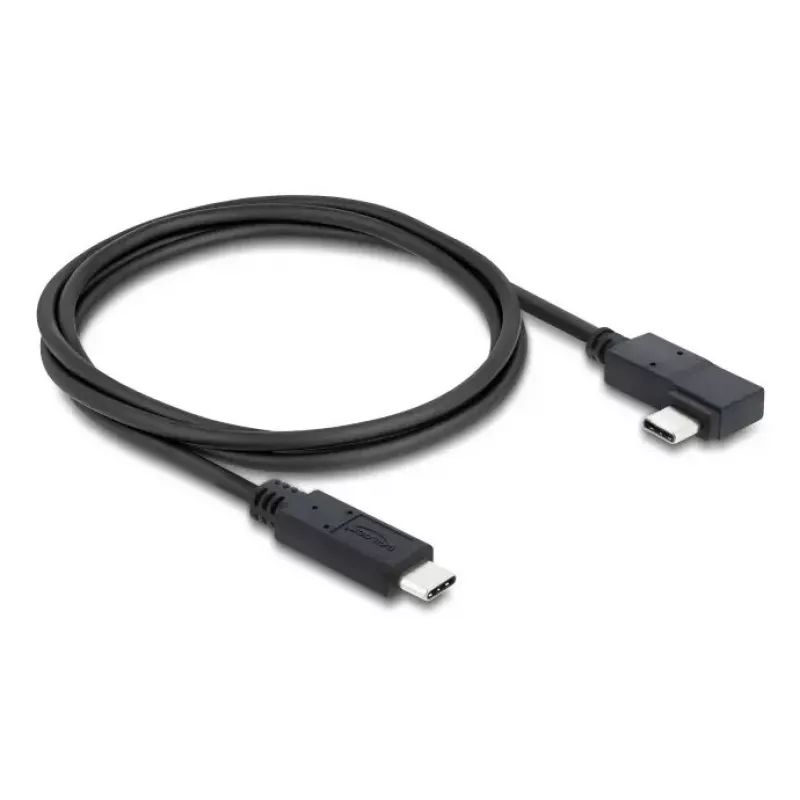

Cable coaxial DELOCK USB4 Gen 3x2 en ángulo izquierda/derecha USB-C a USB-C 40 Gbit/s USB PD 3.1 240 W 0,5 m

The DELOCK coaxial USB4 Gen 3x2 cable with angled left and right USB-C connectors connects laptops, docking stations, monitors and external storage via a USB-C or Thunderbolt 3 port. It supports USB data transmission as well as DisplayPort and PCI Express Alternate Modes, enabling both high-speed data transfer and video output over a single cable.

Advantages

This 0.5 m cable supports data transfer rates up to 40 Gbps and is backward compatible with USB 3.2 and USB 2.0 devices. It supports DisplayPort 1.4a and DisplayPort 2.0 Alternate Mode for video output up to 4K at 144 Hz. The cable also supports USB Power Delivery (USB PD 3.1) Extended Power Range for device charging and power delivery up to 240 W (48 V / 5 A). Gold-plated contacts improve signal reliability and resist corrosion.

Suitable for

• Connecting modern laptops and PCs with USB-C or Thunderbolt 3/USB4 ports to docks or external enclosures
• Driving DisplayPort monitors up to 4K 144 Hz via Alternate Mode
• High-bandwidth connections to external SSDs and NVMe enclosures that require USB4 speeds
• Powering or charging compatible devices using USB Power Delivery up to 240 W

When it may not be suitable

This short 0.5 m cable is designed for close-proximity connections; it may not be suitable when a longer cable run is required. To achieve the maximum 40 Gbps data rate, connected devices and host ports must support USB4 Gen 3x2; older USB or DisplayPort-only devices will operate at their respective lower speeds and feature sets.

Key specifications

• Connector A: Angled USB-C (left/right orientation)
• Connector B: Straight USB-C
• USB standard: USB4 Gen 3x2 (up to 40 Gbps)
• Display support: DisplayPort 1.4a and DisplayPort 2.0 Alternate Mode (up to 4K @ 144 Hz)
• Power Delivery: USB PD 3.1 Extended Power Range up to 240 W (48 V / 5 A)
• Cable length: 0.5 m
• Colour: Black

How to use

Connect the angled USB-C end to the host device and the straight USB-C end to the peripheral, monitor or docking station. Ensure both connected devices support the required standards (USB4 Gen 3x2 for maximum data throughput, DisplayPort Alternate Mode for video, and USB PD 3.1 for high-wattage power delivery). The cable is plug-and-play; operating systems will detect compatible devices automatically.

What to consider before purchase

• Required cable length — this model is 0.5 m long
• Compatibility of host and peripheral ports with USB4 Gen 3x2, DisplayPort Alternate Mode and USB PD 3.1
• Power requirements of the device if you plan to use USB PD up to 240 W
• Physical connector orientation — angled vs straight connector fit for your setup

Recommendations

For maximum performance, use with devices and ports that explicitly support USB4 Gen 3x2 and USB PD 3.1. When connecting high-resolution monitors, verify the monitor and host support the desired DisplayPort version and refresh rate.
