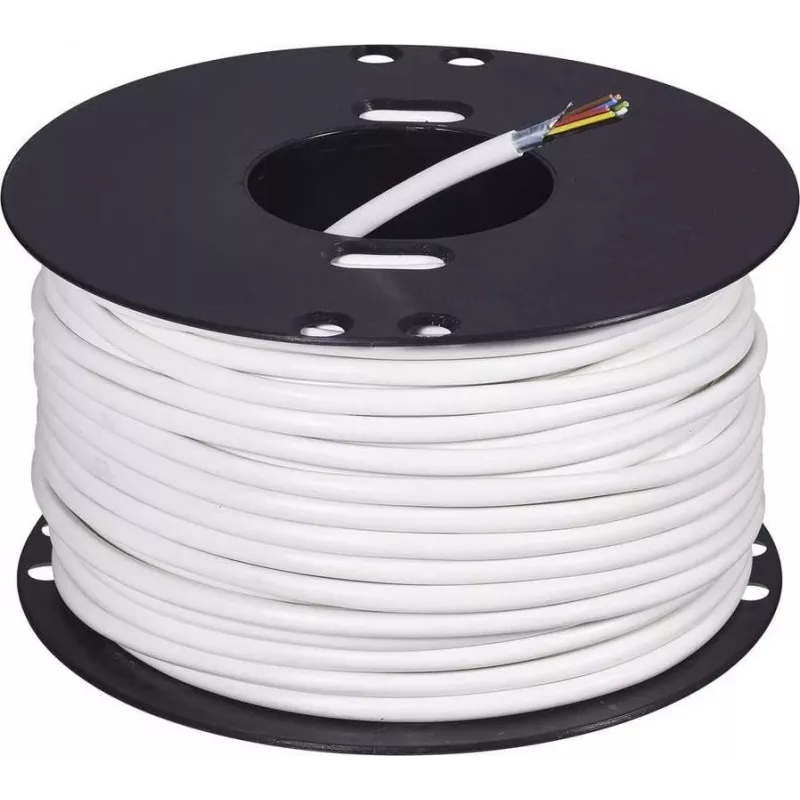

Cable de alarma ABUS Security-Center AZ6360 50m blanco 8 hilos PVC

Reliable low-voltage wiring is the backbone of any intrusion detection system, yet many installers struggle with cables that are stiff, poorly marked, or too short for the job. The ABUS Security-Center AZ6360 alarm cable eliminates those headaches with a 50-metre reel of flexible 8-core stranded copper, jacketed in white PVC and colour-coded for fast, error-free termination. Each core is individually insulated and clearly identified (white, brown, green, yellow, grey, pink, blue, red), so you can wire motion detectors, magnetic contacts, and control panels without second-guessing connections.

Who is it for

Professional alarm installers, security technicians, and advanced DIYers who need a dependable multi-conductor cable for low-voltage alarm circuits. Whether you are pulling cable through conduits, running zones in a small-to-medium installation, or simply keeping a spare reel on the van, this cable delivers consistent performance and easy handling.

Main features

• 50 m continuous length on a convenient reel – enough for multiple zones or a full small-to-medium installation.
• 8 stranded copper cores, 0.22 mm² each, providing flexibility and easy routing through conduits and tight spaces.
• Durable white PVC jacket and core insulation rated for indoor use, with an outer diameter of just 4.5 mm.
• Unshielded construction optimised for low-voltage alarm signalling, rated up to 50 V.
• Operating temperature range from -10 °C to +70 °C, suitable for typical indoor environments.

Specifications

• Brand: ABUS Security-Center
• Model: AZ6360
• MPN: AZ6360
• EAN: 4043158005424
• Cable type: Alarm cable
• Number of cores: 8
• Conductor cross-section: 0.22 mm²
• Conductor material: Stranded copper
• Jacket material: PVC
• Jacket colour: White
• Outer diameter: 4.5 mm
• Shielding: Unshielded
• Rated voltage: 50 V
• Operating temperature range: -10 °C to +70 °C
• Intended use: Intrusion detection systems (IDS)
• Installation environment: Indoor
• Core insulation material: PVC
• Packaging format: Cable reel
• Core colours: White, brown, green, yellow, grey, pink, blue, red

Tips

Always strip the outer jacket carefully to avoid nicking the thin core insulation. Use a cable stripping tool and pull gently. For neat installations, label each core at the control panel end using the colour code as a guide. Store the reel in a dry, cool place to keep the PVC jacket flexible and prevent kinking.
