Cable de alimentación Bachmann 327.876, 5 m, 250 V 16 A, naranja

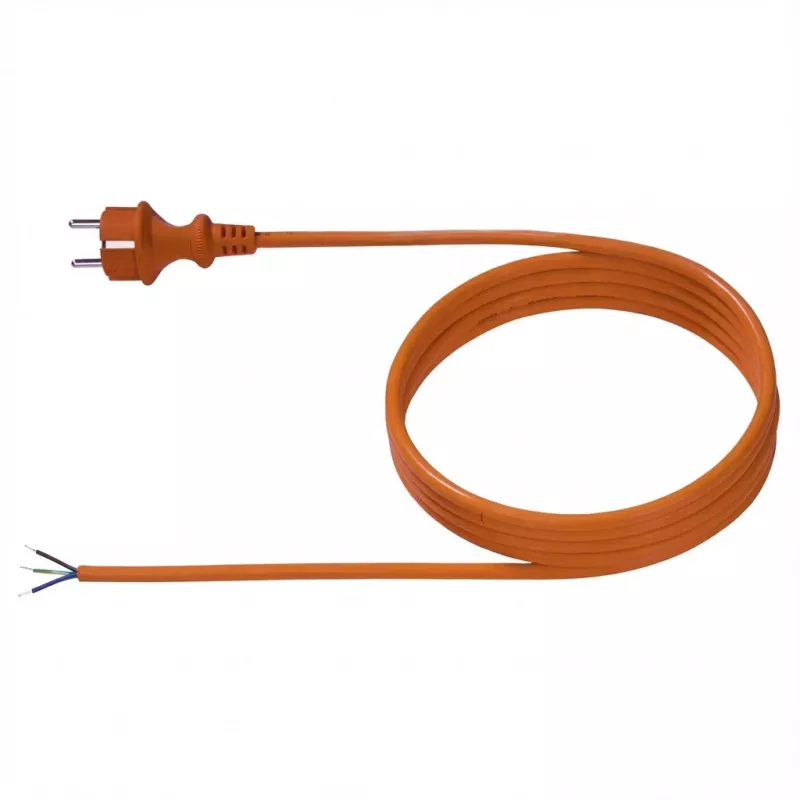

Bachmann 327.876 is a 5 m power cable with a rated input voltage of 250 V and a current rating of 16 A. The cable is finished in orange for high visibility and is intended to deliver mains power to compatible equipment in workshops, events, industrial sites or similar environments. One end is fitted with a moulded central plug featuring a dual earthing contact system and splash-water protection; the opposite end is stripped to 30 mm and fitted with end sleeves for direct connection.

Advantages

The orange jacket improves visibility and helps reduce trip and location errors. The moulded plug with dual earthing contact system offers secure grounding, and the splash-water protected design provides basic protection against moisture. A 5 m length provides extended reach for temporary or fixed installations, while the 16 A rating supports a range of equipment within its rated capacity.

Suitable for

• Temporary power feeds at events and trade shows
• Workshop tools and machinery requiring up to 16 A
• Industrial applications where a visible cable is needed
• Fixed or semi-fixed installations with a 5 m reach

Key specifications

• Length: 5 m
• Rated voltage: 250 V
• Rated current: 16 A
• Colour: Orange
• End 1: moulded central plug with dual earthing contact system, splash-water protected
• End 2: 30 mm stripped with end sleeves
• Brand: Bachmann, MPN: 327.876, EAN: 4016514002887

How to use

Check that the connected equipment does not exceed the cable's 16 A rating and that the supply voltage is 250 V. Insert the moulded central plug into a compatible mains socket ensuring the earthing contact engages. Use the stripped end with end sleeves to connect to terminal blocks or equipment wiring according to applicable electrical regulations and safety practices. Avoid routing the cable through sharp edges or hot surfaces and secure it to prevent strain on connections.

Recommendations

Inspect the cable and plug for damage before each use; do not use the cable if insulation, conductors, plug or end sleeves are damaged. For outdoor or damp environments, ensure the connected equipment and sockets provide appropriate ingress protection beyond splash-water protection if required. Follow local electrical codes for fixed installations and consult a qualified electrician for permanent wiring.
