Cable de alimentación Bachmann GST18 3 m, conector macho de red tipo J, negro

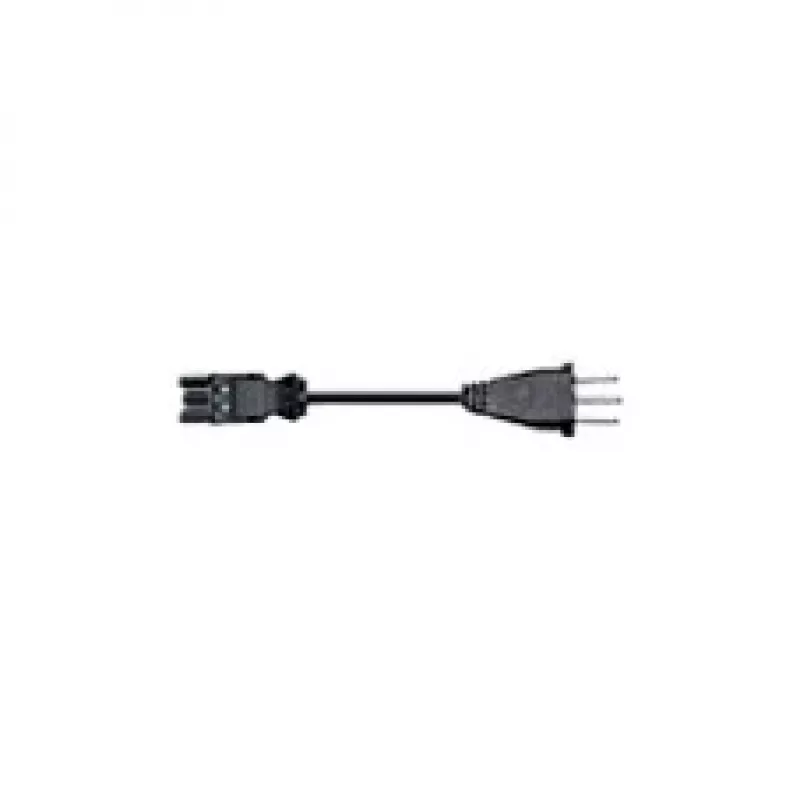

Bachmann GST18 power cable, 3 m long, with a Power plug type J (Swiss CH) on one end and a Wieland GST18i3 socket on the other. The cable uses H05VV-F 3G 1.0 mm² conductors and is finished in black. It is intended to supply mains power to devices and installations that accept a J-type grounded plug and a Wieland GST18i3 inlet.

Advantages

The cable combines a standard H05VV-F 3G 1.0 mm² construction with industry-compatible connectors — Power plug type J (CH/Switzerland) and Wieland GST18i3 — to provide reliable grounded power delivery. Its 3 m length offers flexible placement options for workstations, AV equipment and modular installations. The black jacket provides a neutral appearance and helps hide cable routing.

Suitable for

• Workstations and desks that require a J-type Swiss power connection
• AV racks and stage equipment using Wieland GST18i3 inlets
• Modular power distribution units and devices with matching connectors

Key specifications

• Cable type: H05VV-F 3G 1.0 mm²
• Length: 3 m
• End 1: CH / Switzerland Power plug type J
• End 2: Wieland GST18i3 socket
• Colour: Black
• Brand: Bachmann, MPN: 375.017, EAN: 4016514023592

How to use

Connect the Power plug type J end to the device or mains outlet designed for Swiss J plugs and insert the Wieland GST18i3 socket into the matching inlet on the equipment or distribution module. Ensure connectors are fully seated and that the cable is routed to avoid strain, sharp bends or contact with hot surfaces. Verify grounding continuity before powering sensitive equipment.

Recommendations

Use this cable indoors and within its rated ambient conditions. Do not modify connectors or cable; replace the cable if insulation or connectors are damaged. For installation in permanent or safety-critical systems, follow local electrical regulations and, if required, consult a qualified electrician.
