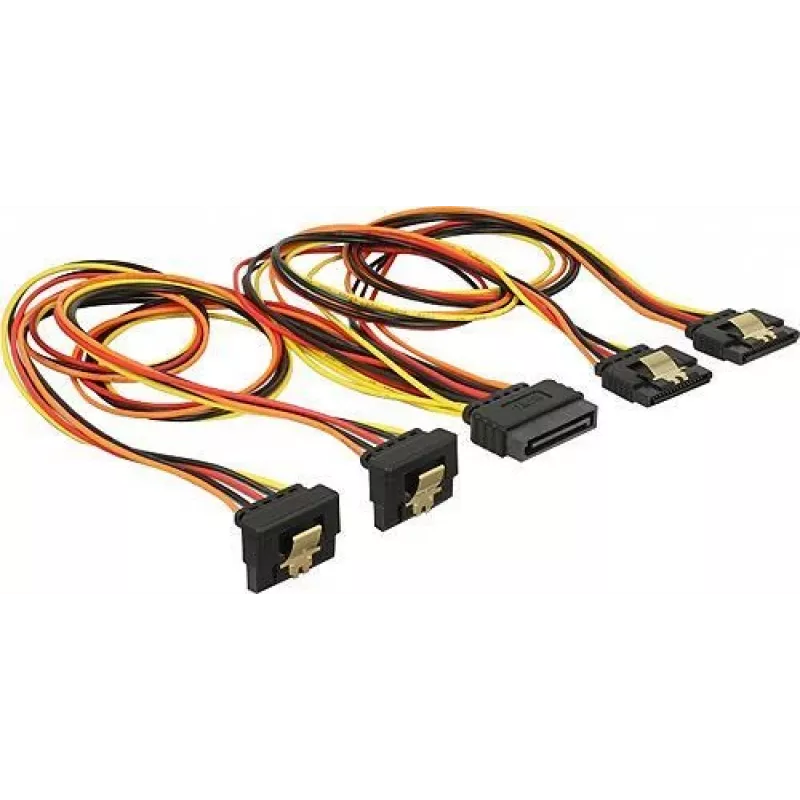

Cable de alimentación interno DeLOCK 60154 0,3 m 4 x SATA 15 pines

The DeLOCK 60154 internal power cable is 0.3 m long and splits one SATA 15-pin power connector into four SATA 15-pin receptacles. It is intended to distribute power from a single power supply connector to multiple SATA devices inside a PC case, providing a short, space-saving connection for drives and optical units. Metal retention clips on the receptacles and the clearance design on the plug help ensure secure and reliable seating.

Advantages

This cable allows powering up to four SATA devices from a single SATA 15-pin connector, reducing the need for additional power connectors. The short 0.3 m length is suitable for compact builds and minimizes cable clutter. Metal clips on each receptacle improve connector retention and the plug geometry supports a firm connection to the power supply.

Suitable for

• Connecting multiple SATA hard drives or SSDs to one SATA power output
• Powering SATA optical drives from a single connector
• Use in small form-factor or compact PC cases where cable length should be minimal

Key specifications

• Brand: DELOCK
• Model / MPN: 60154
• EAN: 4043619601547
• Cable length: 0.3 m
• Connectors: 1 × SATA 15-pin (plug) to 4 × SATA 15-pin (receptacles)

How to use

Power off the system and disconnect the power supply before installation. Insert the single SATA 15-pin plug into an available SATA power output on the power supply. Route the cable inside the case to reach your drives and firmly attach each SATA 15-pin receptacle to the power inlet of the corresponding SATA device until the metal clip engages. Ensure connections are secure before restoring power.

Recommendations

Do not overload the power rail: verify the power supply can handle the combined current draw of all connected SATA devices. Avoid stretching the cable and keep it away from moving fans or sharp edges. Replace the cable if any connector or wiring shows damage.
