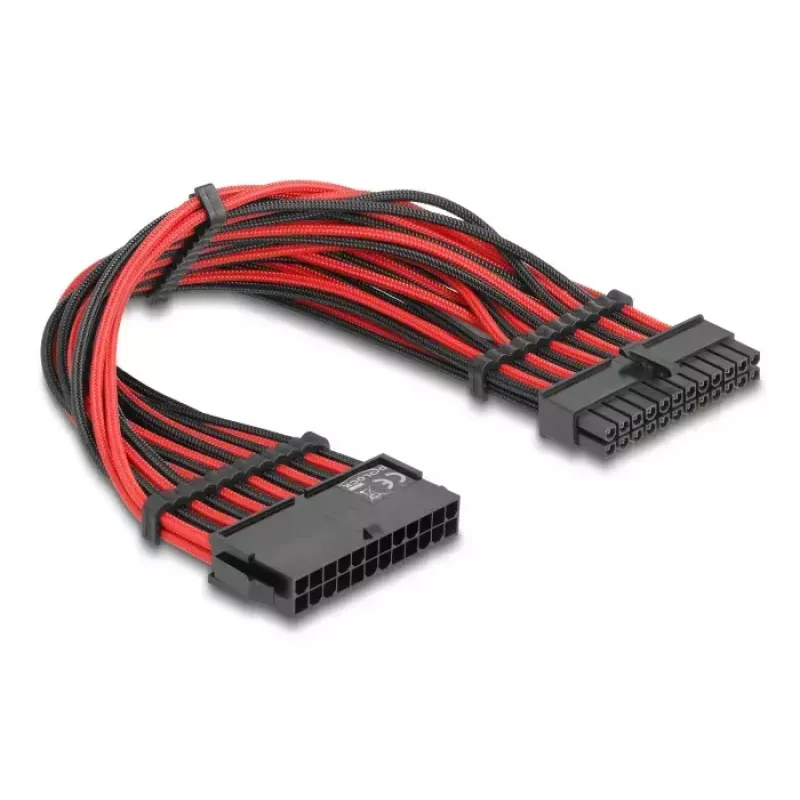

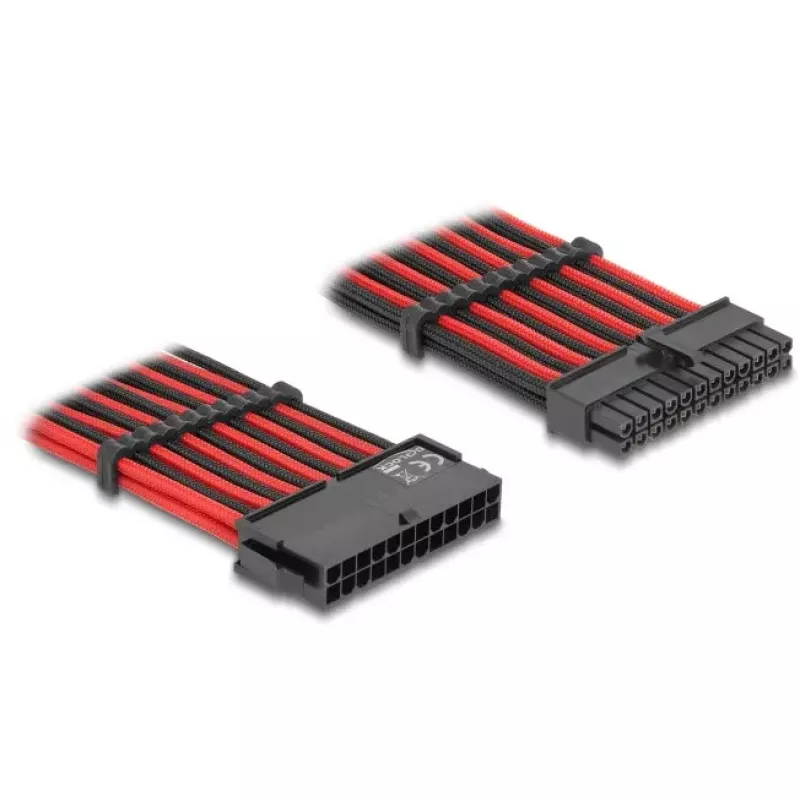

Cable de alimentación interno DeLOCK 80973 0,3 m ATX 24 pines

This extension cable by DeLOCK is designed to extend the reach between a PC power supply and a motherboard with a 24-pin ATX connector. The internal cable measures 0.3 m and provides a straight 24-pin male-to-female connection in black and red wiring, allowing placement flexibility in compact builds or when the original cable falls short.

Advantages

The DeLOCK 80973 offers a simple way to increase cable length without modifying existing power supply wiring. Its standard ATX 24-pin male and female straight connectors maintain compatibility with typical motherboard and PSU headers. The short 0.3 m length reduces excess slack inside the case while providing the required additional reach.

Suitable for

• Extending the main ATX 24-pin power cable inside desktop PC cases
• PC builds where original PSU cable is too short for convenient routing
• Small form-factor builds requiring short extension to reach the motherboard

Key specifications

• Length: 0.3 m
• Connectors: ATX 24-pin male (straight) to ATX 24-pin female (straight)
• Color: black and red wiring
• Brand: DELOCK
• Manufacturer part number (MPN): 80973
• EAN: 4043619809738
• Origin: China

How to use

Power off the system and disconnect the PSU from mains before installation. Plug the female ATX 24-pin connector of the extension cable onto the power supply’s 24-pin plug, then connect the male 24-pin connector to the motherboard’s ATX power header. Ensure the connectors are fully seated and the cable is routed to avoid contact with fans or sharp edges.

Recommendations

Use this cable only for standard ATX 24-pin power connections. Verify connector orientation before insertion and avoid forcing connectors. Do not use the cable if insulation or connectors are damaged.
