Cable de alimentación interno DeLOCK 85364 1 m 4 pines PWM

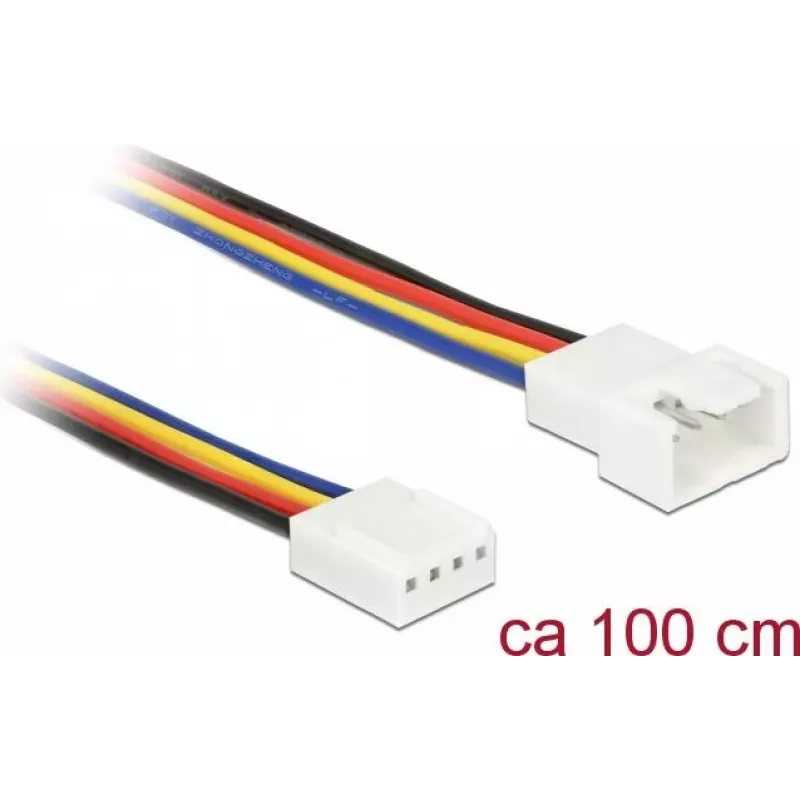

The DeLOCK 85364 internal power cable is a 1 m 4-pin PWM fan extension cable designed to extend fan connections inside PC systems. It features two 4-pin PWM connectors and supports connecting a 3-pin fan to the 4-pin header, allowing use with fans that do not have PWM control while preserving compatibility with PWM devices. The cable is supplied in a polybag and is available in a multicolour conductor arrangement with a black outer sheath.

Advantages

This 4-pin PWM cable provides a reliable extension for fan connections, preserving PWM control when connected to compatible devices. Its 1 m length offers flexible routing inside PC cases. The cable’s connectors conform to standard 4-pin fan pinouts, enabling straightforward connection of both 4-pin PWM fans and 3-pin fans without PWM support.

Suitable for

• Extending internal PC fan connections
• Connecting 4-pin PWM fans to motherboard or fan controllers
• Connecting 3-pin fans to 4-pin headers when PWM is not required
• Routing fan power inside desktop PC cases

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 85364
• EAN: 4043619853649
• Cable length: 1 m
• Connector 1: 4-pin PWM
• Connector 2: 4-pin PWM
• Product colour: black outer sheath; conductors black, blue, red, white, yellow
• Package: polybag

How to use

Connect one 4-pin PWM male connector of the cable to the motherboard or fan controller header and connect the other 4-pin connector to the fan’s female plug. If connecting a 3-pin fan, align the pins and insert the 3-pin connector into the 4-pin plug — PWM control will not be available but the fan will receive power and tachometer signal if supported. Route the cable inside the case to avoid obstruction of airflow and secure it with cable ties as needed.

Recommendations

Use the cable for internal PC fan extensions only. Ensure connectors are correctly aligned before insertion and avoid forcing connectors to prevent pin damage. Keep the cable away from moving parts and high-temperature components.
