Cable de alimentación Microconnect PC1285 negro 2 m conector hembra C20 conector hembra C19

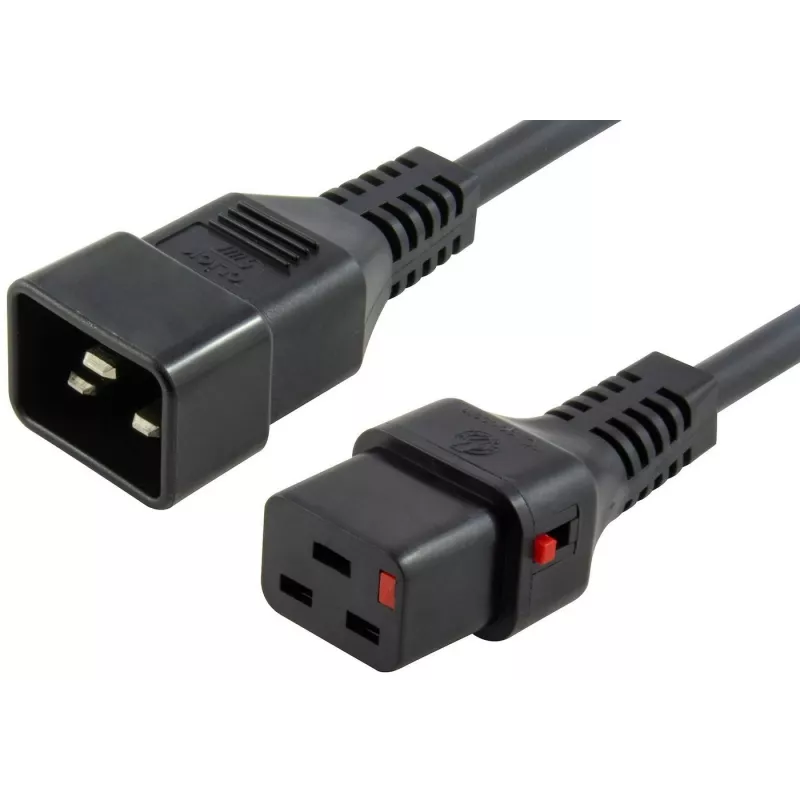

The MicroConnect PC1285 is a 2 m power cable with a C20 inlet on one end and a C19 outlet on the other. It supports up to 250 V and 16 A and is intended for reliable power delivery to PDUs, servers, computers and other equipment with standard IEC C19/C20 connections.

Advantages

This cable provides a secure, standard IEC C20 to C19 connection for rack and data centre equipment. Its 2 m length offers flexibility in rack or cabinet layouts, and the black jacket helps it blend with typical server-room installations. The cable is rated for 250 V and 16 A, matching common power requirements for professional IT hardware.

Suitable for

• Power distribution units (PDUs) in racks
• Servers and blade enclosures
• Network devices with IEC C19/C20 inlets
• Computer workstations and power management equipment

Key specifications

• Connector A: IEC C20 (inlet)
• Connector B: IEC C19 (coupler/outlet)
• Cable length: 2 m
• Rated voltage: 250 V
• Rated current: 16 A
• Colour: Black
• Weight: 0.13 kg

How to use

Connect the C20 end to a compatible power source or PDU inlet and the C19 end to the device requiring power. Ensure that both connected devices are switched off before making connections. Verify that the device's power requirements do not exceed 250 V and 16 A. Route the cable to avoid sharp bends and secure it to prevent strain on connectors.

Recommendations

Use this cable in indoor, dry environments and within equipment racks or cabinets. Periodically inspect the cable and connectors for wear or damage, and replace the cable if insulation or connector integrity is compromised.
