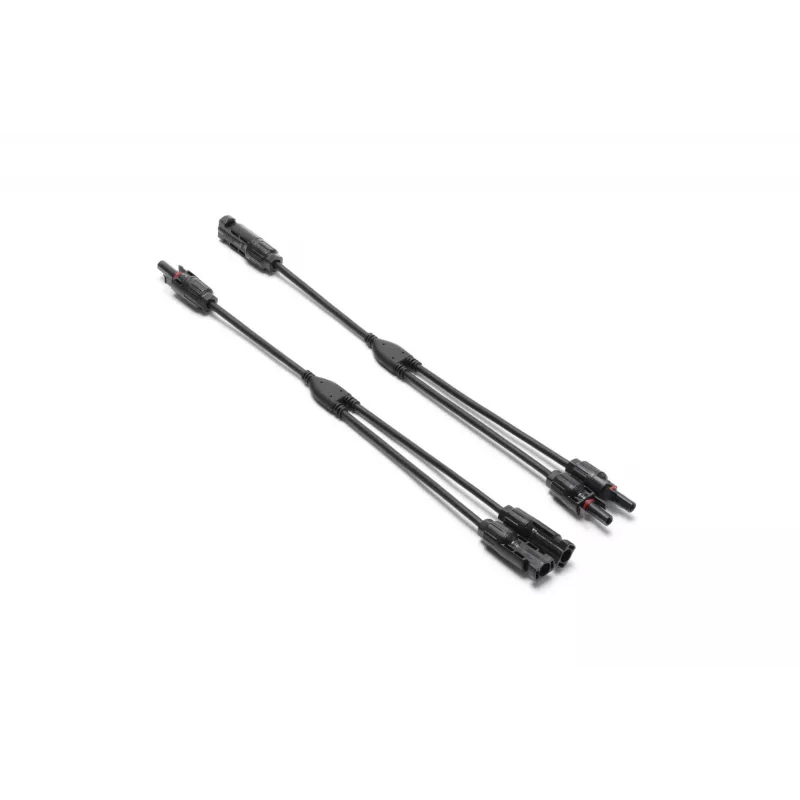

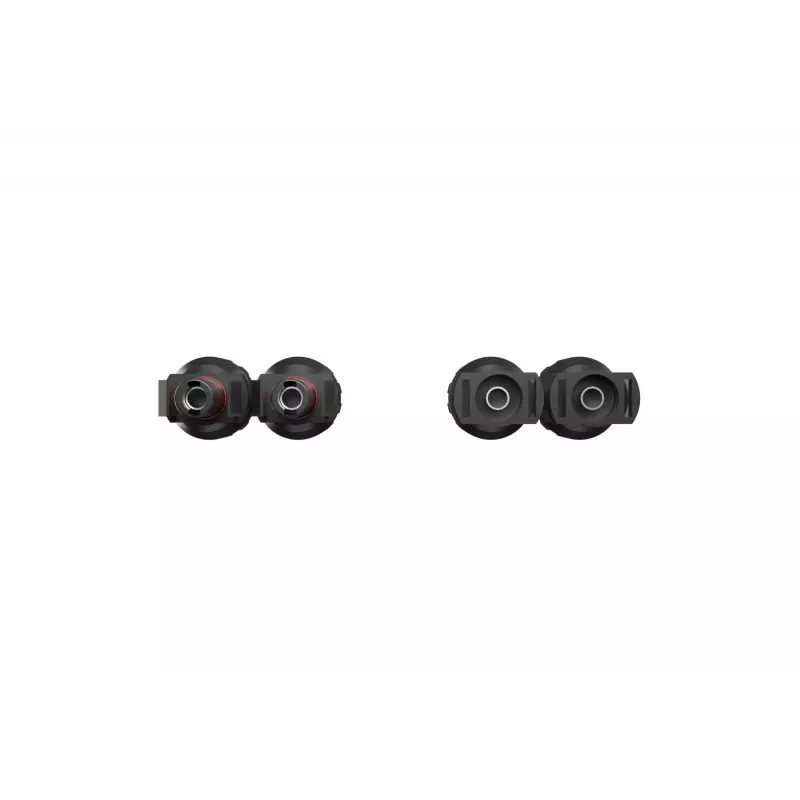

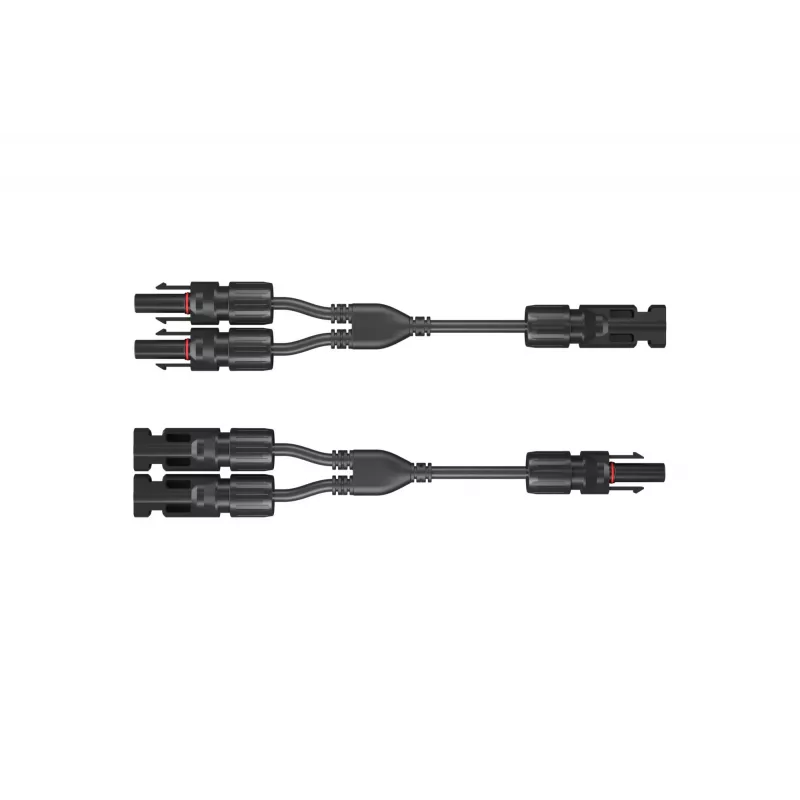

Cable de alimentación para módulo solar DJI DY0030 Cable de conexión en paralelo MC4 para instalaciones solares

DJI Power MC4 parallel cable for photovoltaic panels. The DJI DY0030 MC4 parallel connection cable is designed to connect solar panels in parallel to increase total current output. It is compatible with MC4-equipped panels and intended for use with DJI solar power systems and other solar arrays, offering a simple and reliable way to link panels for outdoor installation and steady power delivery.

Advantages

The cable provides robust MC4-compatible connectors and a 30 cm length that enables convenient parallel connection between adjacent panels. It is built to be weather-resistant and compatible with common 200 W IBCPOWER and LINKSOLAR panels, allowing straightforward installation and dependable electrical contact for charging and power management devices.

Suitable for

• Connecting two or more MC4-equipped solar panels in parallel
• Expanding DJI solar power setups
• Linking IBCPOWER 200W and LINKSOLAR 200W panels
• Small residential or portable PV arrays where increased current is required

Key specifications

• Manufacturer: DJI
• Model / MPN: DY0030 / MC4
• Compatibility: IBCPOWER 200W panel, LINKSOLAR 200W panel and other MC4-equipped panels
• Cable length: 30 cm
• Type: MC4 parallel power cable

How to use

Ensure panels and system are turned off or disconnected from loads. Connect the male MC4 connector to the male/female mating connector on one panel and the female MC4 connector to the corresponding connector on the other panel, forming a parallel link. Verify secure, fully engaged connections and route the cable to avoid sharp edges or excessive tension. After connections are secured, reconnect or power on the system according to the solar controller or inverter manufacturer instructions.

Recommendations

Use the cable only with compatible MC4 connectors and panels. Confirm polarity and connector types before connecting, check for damage or corrosion periodically, and follow local electrical codes and the solar equipment manufacturer’s safety guidelines when installing or servicing PV arrays.
