Cable de alimentación Type-L ProXtend PC-LC13-003

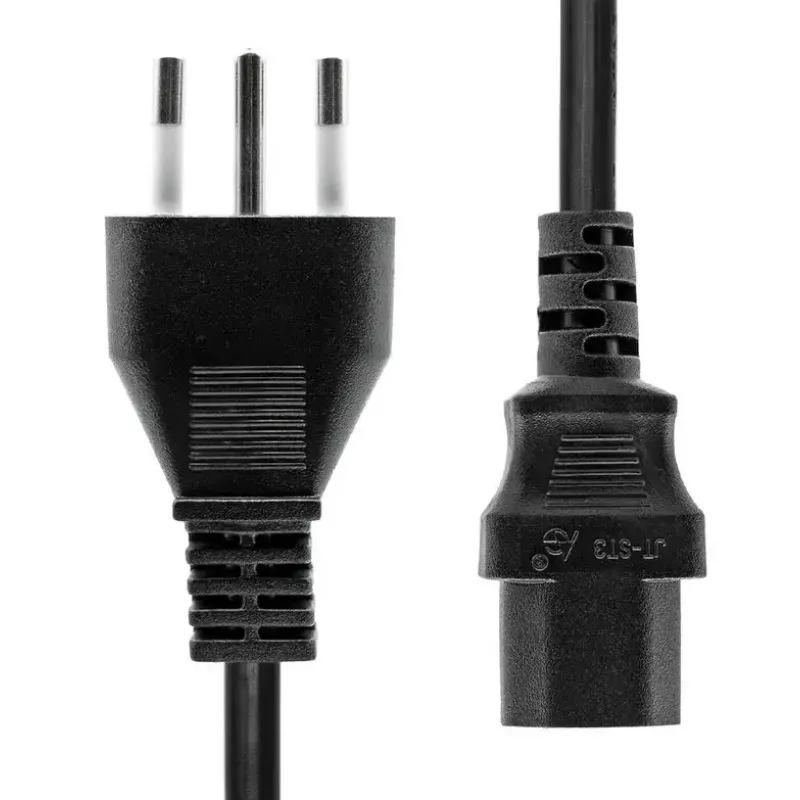

The ProXtend PC-LC13-003 power cord connects a male Type L plug to a female IEC C13 coupler. The cable is 3 m long, black, and uses an H05VV-F construction with a PVC jacket. It is designed for mains use with a rated input voltage of 250 V and a maximum current of 10 A.

Advantages

The cord combines a Type L power plug and a C13 coupler to provide compatibility with equipment that uses IEC C13 in regions where Type L outlets are standard. Its H05VV-F PVC-sheathed construction offers flexibility and basic mechanical protection while the 1.0 mm² conductor size (3 cores of 32 strands each) supports stable power transmission up to the specified ratings. At 3 meters length it provides extended reach between outlet and device.

Suitable for

• Connecting desktop PCs, monitors, or UPS units with IEC C13 inlet to Type L mains outlets
• Office and home equipment in countries using Type L sockets (e.g., Italy)
• Temporary setups where a 3 m cable length is required

Key specifications

• Model: ProXtend PC-LC13-003
• Connector 1: Power plug Type L (male, straight)
• Connector 2: IEC C13 coupler (female, straight)
• Cable length: 3 m
• Cable type: H05VV-F, PVC jacket
• Conductors: 3 cores, 32 strands each, 1.0 mm²
• Rated voltage/current: 250 V, 10 A
• Colour: Black
• MPN: PC-LC13-003
• EAN: 5714590007374

How to use

Inspect the cable and connectors for damage before use. Insert the Type L plug into a compatible mains outlet ensuring correct orientation and secure seating. Connect the IEC C13 coupler to the device’s C13 inlet until it is firmly attached. Do not force connections; if the plug does not fit, verify outlet type and connector compatibility.

Recommendations

Use this cable only within its rated specifications (250 V, 10 A). Avoid routing the cable through sharp edges or hot surfaces, and do not expose it to prolonged moisture. Replace the cable if the insulation or conductors are damaged. For permanent installations or loads near the rating limit, consult a qualified electrician.
