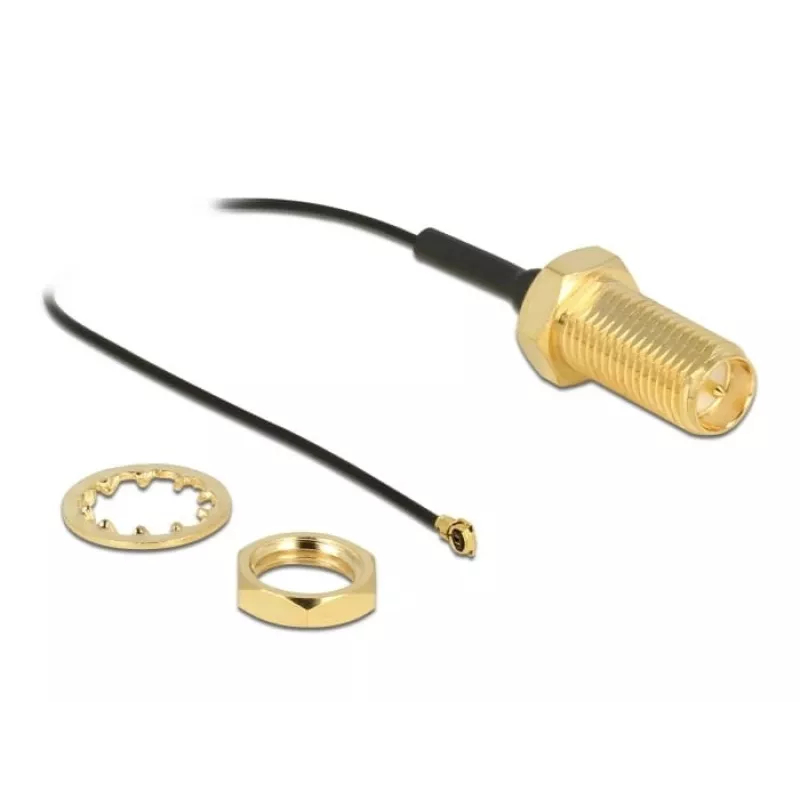

Cable de antena DeLOCK conector hembra RP-SMA montaje en chasis a conector macho I-PEX MHF4 0,81 35 cm

The DeLOCK Antenna Cable is designed to route an antenna signal inside devices. It features an RP-SMA jack bulkhead connector and an I-PEX MHF4 plug, with a 35 cm cable length and a 0.81 mm cable diameter. The bulkhead connector includes a 10 mm thread length for secure mounting in panels or chassis.

Advantages

The RP-SMA jack bulkhead to I-PEX MHF4 plug configuration provides a compact, standardized connection for internal antenna installations. The 35 cm length offers flexibility for routing within small to medium-sized enclosures, while the 10 mm threaded bulkhead ensures stable mechanical fixation. The 0.81 mm cable diameter balances flexibility and signal integrity for typical wireless applications.

Suitable for

• Connecting internal antennas in routers, gateways and access points
• Wireless modules and embedded devices with I-PEX MHF4 ports
• Panel or chassis mounting where an RP-SMA bulkhead is required

Key specifications

• Brand: DELOCK
• Model / MPN: 90478
• EAN: 4043619904785
• Connector A: RP-SMA jack bulkhead (10 mm thread length)
• Connector B: I-PEX MHF4 plug
• Cable length: 35 cm
• Cable diameter: 0.81 mm

How to use

Install the bulkhead RP-SMA jack into the panel or chassis opening and secure it using the provided nut on the 10 mm thread. Connect the I-PEX MHF4 plug to the corresponding socket on the wireless module or board. Route the 35 cm cable to avoid sharp bends and secure it inside the enclosure to prevent strain on connectors. Verify antenna continuity and signal after installation.

Recommendations

Use the cable for internal connections where an RP-SMA exterior interface is required. Avoid repeated disconnections of the I-PEX MHF4 plug to prevent wear; handle the small plug with care. Do not bend the cable sharply; maintain gentle curvature to preserve signal performance.
