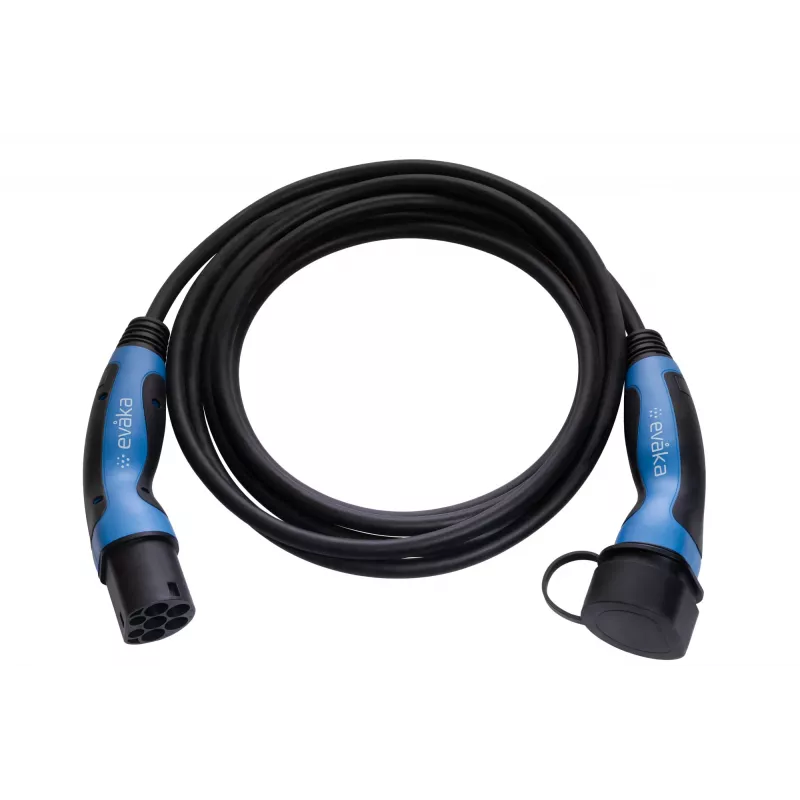

Cable de carga para VE EVAKA Type 2–Type 2, 22 kW, 32 A, 5 m, 5x6 mm² + 1x0,5 mm², negro

EVAKA EV charging cable Type 2–Type 2, 22 kW, 32 A, 5 m is a 5-metre AC charging cable with standard Type 2 plugs at both ends designed for charging electric vehicles at up to 22 kW (32 A). The cable uses five 6 mm² conductors for power and one 0.5 mm² conductor for pilot/communication, and features a durable insulated jacket. It is compatible with home and public AC charging stations that accept Type 2 connectors and provides a straightforward connection for vehicles with Type 2 inlets.

Advantages

The cable supports three-phase charging up to 22 kW (32 A) and includes the required pilot conductor for communication with charging stations. With a 5 m length it offers flexibility in positioning the vehicle relative to the charging point, while the robust insulation and standard Type 2 connectors ensure reliable electrical contact and safe handling. The product is supplied by Evaka and carries a 12‑month warranty.

Suitable for (tasks / use cases)

• Charging electric cars at home using a Type 2 AC wallbox
• Connecting to public Type 2 AC charging stations
• Three-phase charging where up to 22 kW power is available
• Temporary or portable charging when a 5 m cable length is required

Key specifications

• Power rating: 22 kW (32 A)
• Length: 5 m

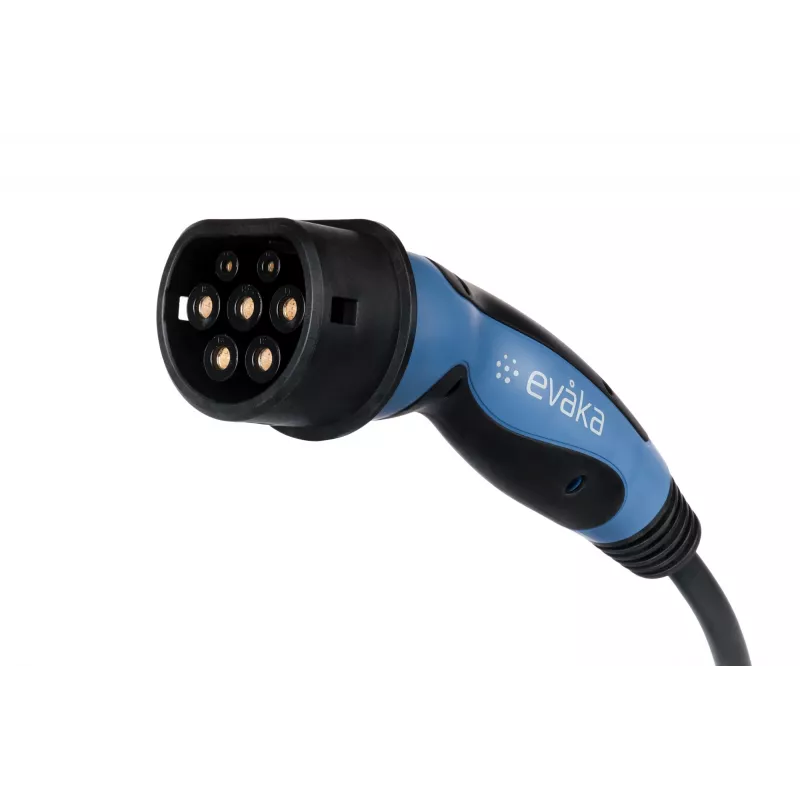

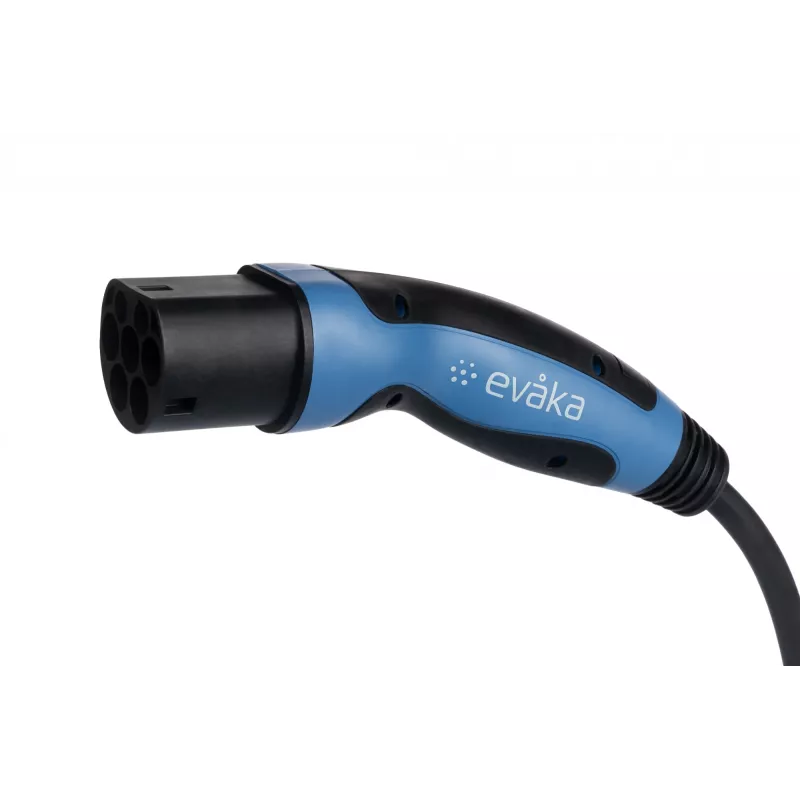

• Connector type: Type 2 – Type 2 (both ends)
• Conductors: 5 x 6 mm² (power) + 1 x 0.5 mm² (pilot/communication)
• Colour: Black
• Net weight: 2.314 kg
• Gross weight (packaged): 2.514 kg
• Producer: Evaka, MPN EVA503325
• Warranty: 12 months

How to use

Inspect the cable and connectors for visible damage before each use. Park the vehicle close enough to the charging point so the 5 m cable can reach the inlet without tension. Insert one Type 2 plug firmly into the vehicle inlet and the other into the charging station socket; follow the station’s start procedure. Monitor the charging session via the vehicle or charging station interface and disconnect first from the station, then from the vehicle when charging completes. Store the cable in a dry place away from direct sunlight and mechanical damage.

Recommendations

Use the EVAKA Type 2–Type 2 cable only with compatible Type 2 charging equipment and vehicles. Do not use the cable if connectors or insulation are damaged, and avoid exposing the cable to sharp edges, chemicals or extreme temperatures. Follow local safety regulations and the charging station instructions when connecting and disconnecting.
