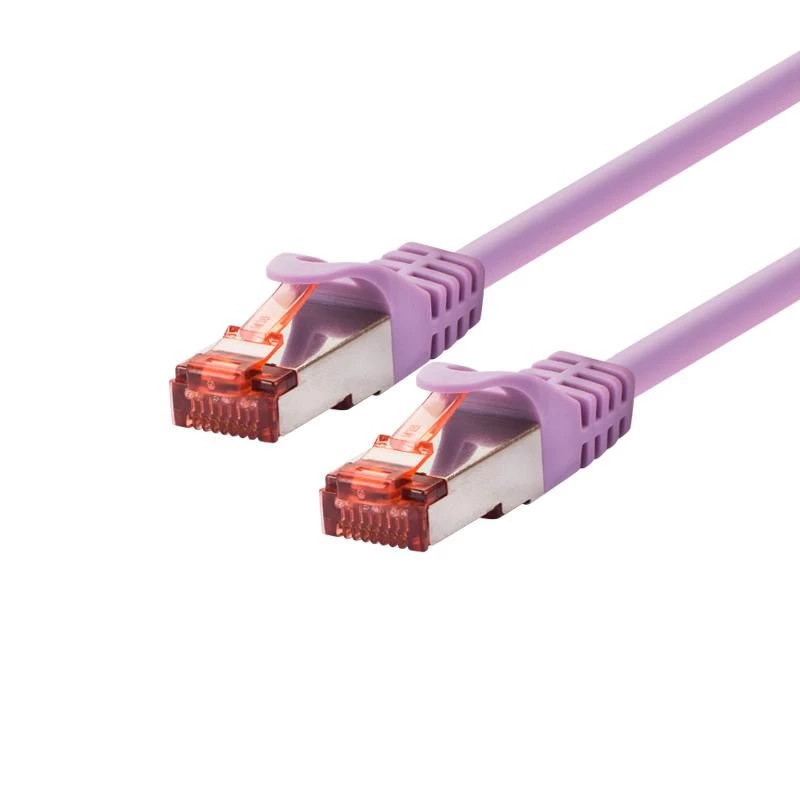

Cable de conexión de red LOGON TCF66F050V Cat6a F/UTP (FTP) Violeta, 5 m, RJ-45–RJ-45

LOGON TCF66F050V is a 5 m Cat6a network patch cable with F/UTP (FTP) foil shielding and shielded RJ‑45 connectors on both ends. It is built to support 10 Gbps Ethernet links and to reduce electromagnetic interference in structured cabling installations. The cable features four twisted pairs with 26 AWG stranded conductors and a 100 Ω characteristic impedance, housed in a PVC sheath and delivered in an individual package for easy deployment.

Advantages

The foil shielding of this Cat6a cable provides additional protection against EMI and crosstalk compared with unshielded alternatives, improving signal integrity in environments with multiple electronic devices or dense cabling. Shielded RJ‑45 connectors maintain the continuity of the shield, while the stranded 26/7 conductors offer flexibility for installation through cable trays or around bends. Compliance with EIA/TIA 568 ensures compatibility with common networking standards and equipment.

Suitable for

• 10 Gbps Ethernet connections between switches, routers and servers
• Patching to patch panels and wall outlets in offices and data closets
• Local area network segments requiring reduced EMI, such as near power supplies or dense cabling
• Temporary or permanent interconnects where a 5 m cable length is appropriate

Key specifications

• Category: Cat6a (F/UTP, FTP)
• Length: 5 meters
• Conductor: 4 pairs, 26 AWG stranded (26/7)
• Characteristic impedance: 100 Ω
• Connectors: Shielded RJ‑45 male – RJ‑45 male
• Sheath material: PVC
• Color: Violet
• Standards: Conforms to EIA/TIA 568
• Installation: Plug-and-play

How to use

Connect one shielded RJ‑45 connector to the network port of a switch, router or patch panel and the other connector to the endpoint device or another panel port. Ensure that mating connectors and panel ports provide proper shield continuity if shielding is required for the installation. Route the cable without excessive bending and avoid running parallel and close to high-voltage power lines to minimize potential interference. The cable is ready for immediate use and requires no additional configuration.

Recommendations

For optimal performance at 10 Gbps, use short, direct runs where possible and verify that all connected equipment and patch panels support Cat6a performance. When installing in environments with significant electromagnetic noise, ensure shield termination at both ends to maintain effective EMI protection. Replace the cable if the sheath or connectors show visible damage.
