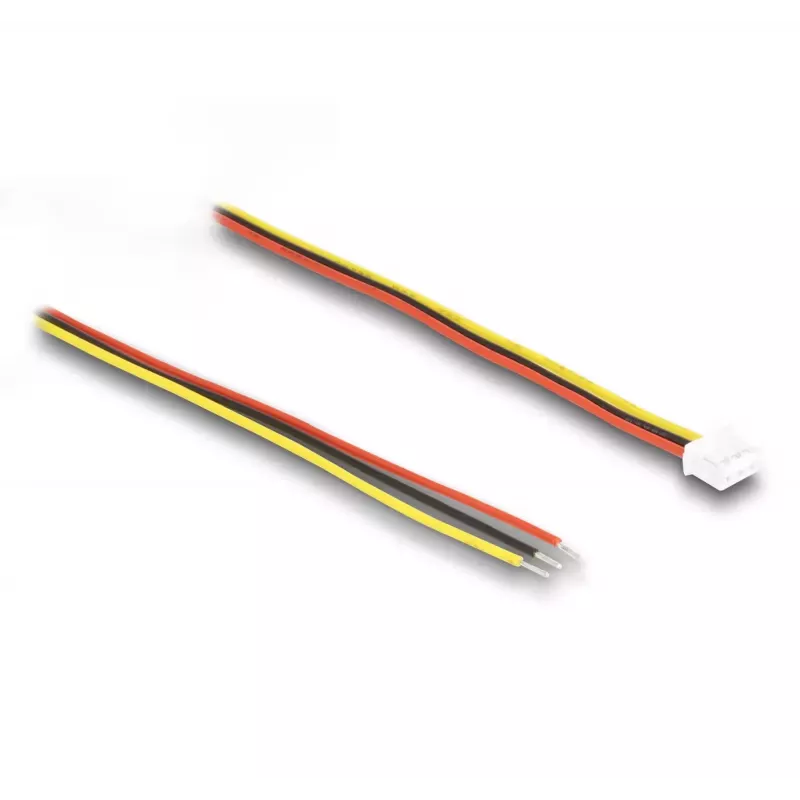

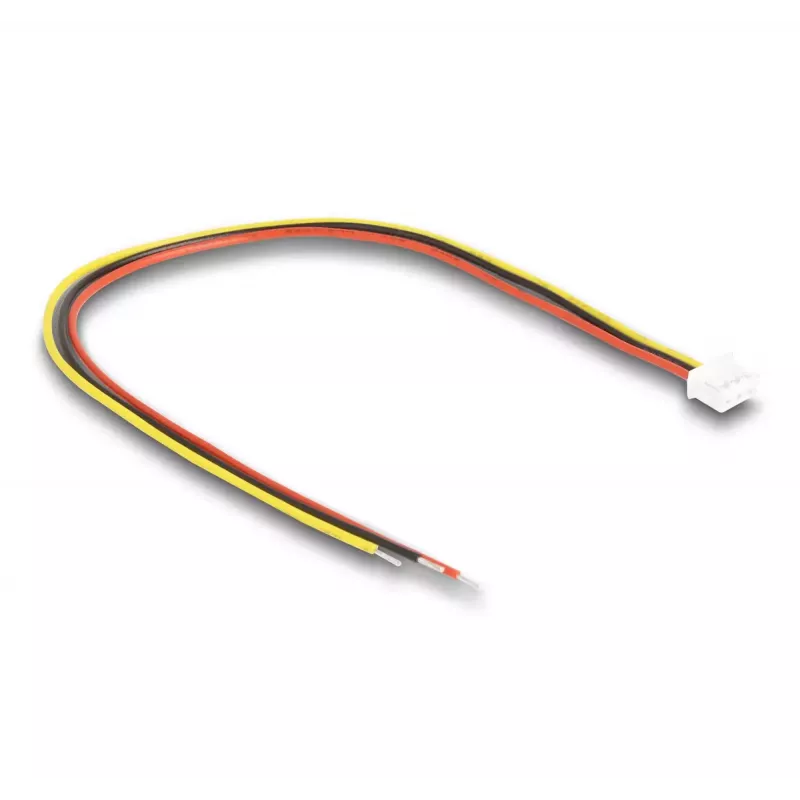

Cable de conexión DeLOCK para módulos de cámara de 3 pines V8 10 cm negro rojo amarillo

This connection cable by DeLOCK is designed to link camera modules with a 3‑pin female port to laptops, IPCs, tablets or PCs. The DeLOCK Connection Cable for 3 pin Camera modules V8 is 10 cm long and uses a black, red and yellow color code with a 3‑pin SMT input, providing a compact wiring solution for camera projects that require reliable signal and power connections.

Advantages

The cable's 10 cm length keeps wiring neat in confined spaces while the 3‑pin SMT input ensures direct compatibility with many camera modules. Color-coded leads (black, red, yellow) simplify identification during installation. Its compact construction is suitable for embedded systems and prototype setups where space is limited.

Suitable for

• Connecting 3‑pin camera modules to laptops and PCs
• Integration with IPC and tablet interfaces
• Embedded systems and prototype camera projects
• Compact wiring runs where short cable length is preferred

Key specifications

• Brand: DELOCK
• Model / MPN: 96004
• EAN: 4043619960040
• Cable length: 10 cm
• Connector type: 3‑pin SMT input (female port compatibility)
• Colours: black, red, yellow
• Category: Computer components accessories

How to use

Identify the camera module's 3‑pin female port and align the cable's 3‑pin SMT connector accordingly. Connect the color‑coded leads following the target device's pinout (black = ground, red = power, yellow = signal where applicable). Route the cable to avoid sharp bends and secure it as needed to prevent strain on the connector. Verify connections before powering the system.

Recommendations

Use the cable for short, internal connections and test pinouts of both camera module and host device before permanent installation. Avoid excessive tensile stress and exposure to liquids or high temperatures to maintain reliable operation.
