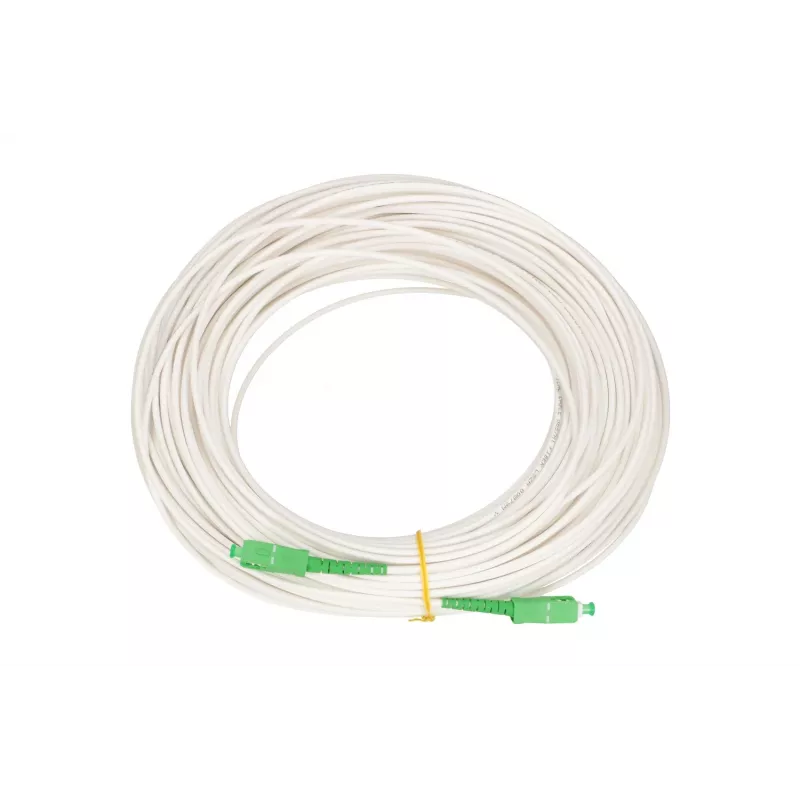

Cable de conexión Extralink SC/APC-SC/APC, LSOH, monomodo, simplex, G.657A2, 3 mm, 15 m, blanco

The Extralink Patch Cord SC/APC-SC/APC is a high-quality fiber optic cable designed for reliable single-mode connections in FTTH, LAN, telecommunication networks, and data centers. With LSOH (Low Smoke Zero Halogen) jacket material, it ensures safety in enclosed spaces. The cable features SC/APC connectors on both ends, providing low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cord offers excellent performance with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The G.657A2 fiber standard allows for tight bend radii (minimum 7.5 mm), making installation flexible even in confined spaces. The durable zirconia ceramic ferrule ensures over 500 mating cycles, and the LSOH jacket reduces toxic smoke in case of fire.

Suitable for

• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN)
• Telecommunication networks
• Data centers
• Any application requiring single-mode, simplex fiber connections

Key specifications

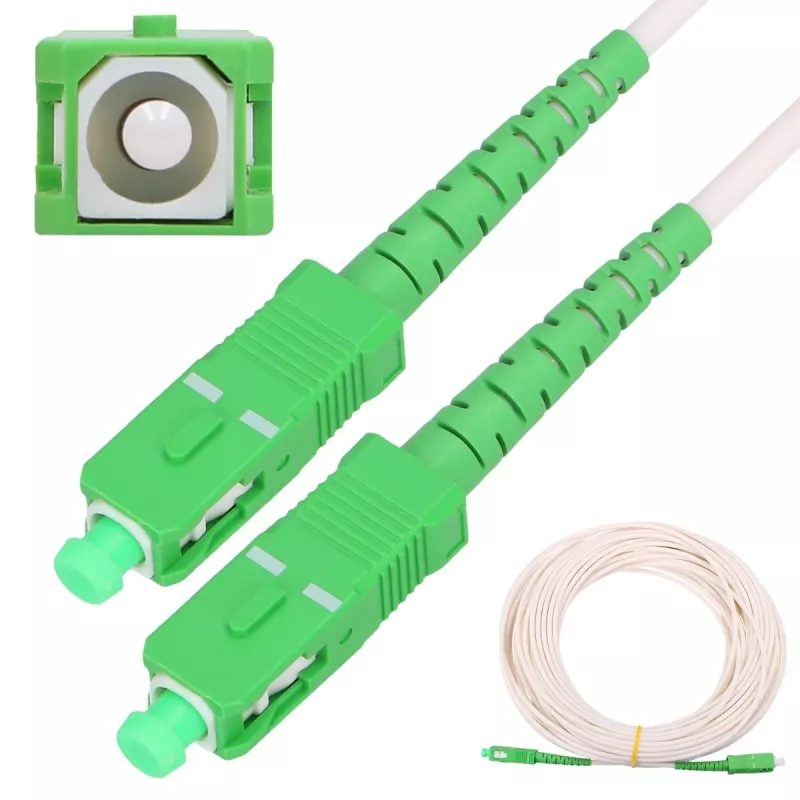

• Connector Type: SC/APC (both ends)
• Fiber Mode: Single Mode
• Fiber Standard: G.657A2
• Cable Structure: Simplex
• Cable Length: 15 m
• Cable Diameter: 3 mm
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Jacket Color: White
• Polishing Type: APC (Angled Physical Contact)
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 7.5 mm
• Durability: > 500 Mating Cycles
• Ferrule Material: Zirconia Ceramic
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. Store in a clean, dry environment within the specified temperature range. This patch cord is ideal for high-speed data transmission in modern networks.
