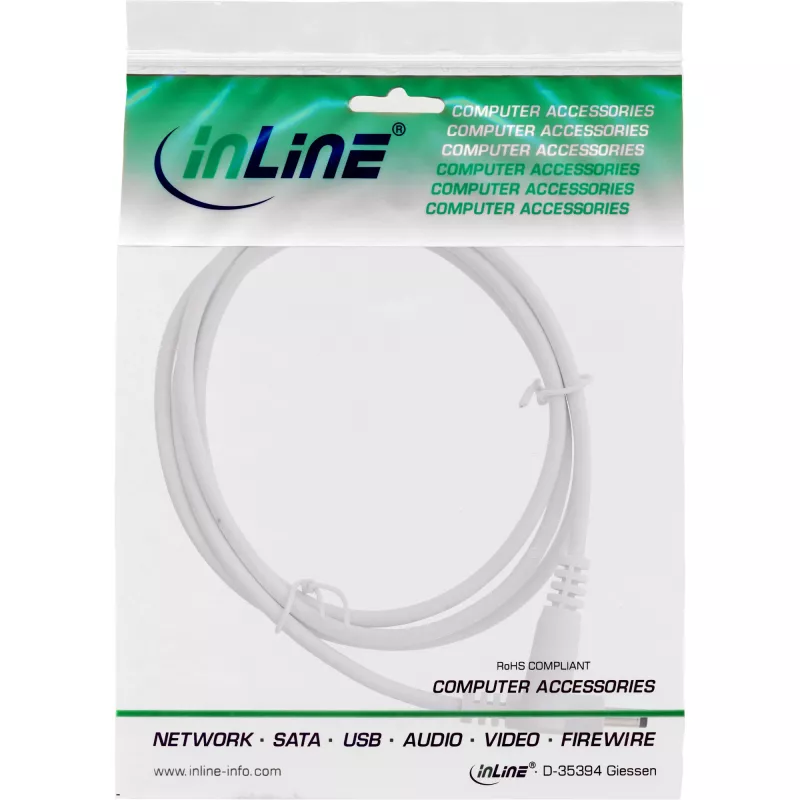

Cable de extensión DC InLine, conector macho/hembra DC 4,0x1,7mm, AWG 18, blanco 2m

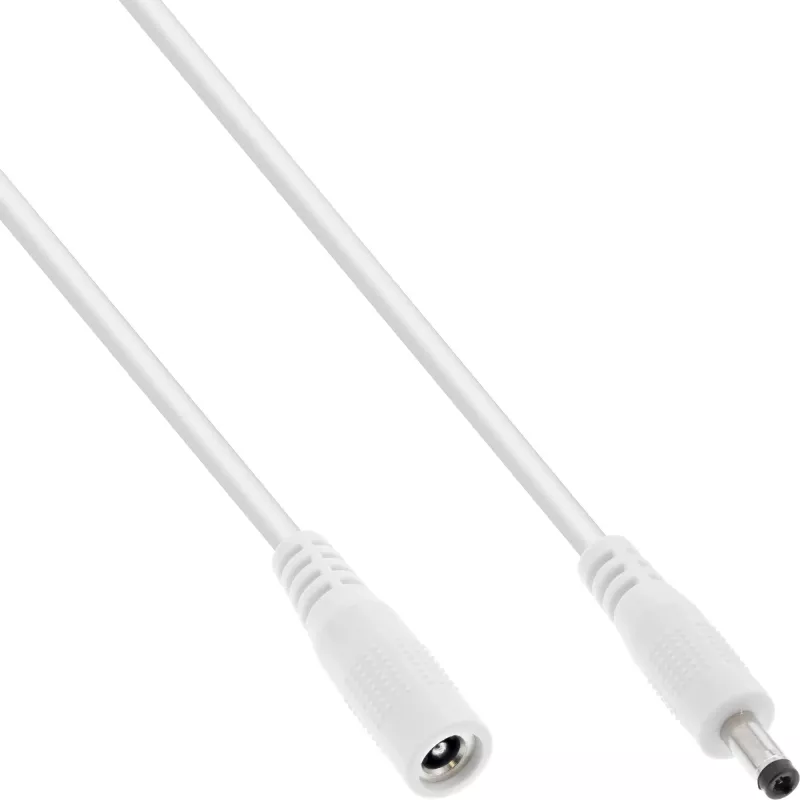

The InLine DC extension cable is a 2 m white cable with matching 4.0 x 1.7 mm DC male and female connectors. It is designed for extending low-voltage DC connections and supports an input voltage of 12 V with a rated current of 11.6 A. The cable uses AWG 18 conductors to provide reliable power transfer for compatible devices.

Advantages

This InLine DC extension cable provides a standardized 4.0 x 1.7 mm connector interface in both male and female ends, a 2 m reach for flexible placement, and AWG 18 wiring for improved durability and low voltage drop. The white jacket offers a neutral appearance suitable for visible installations.

Suitable for

• Extending power to routers, modems and small network appliances
• Connecting LED drivers and low-voltage lighting components
• Powering CCTV cameras and other surveillance equipment
• Temporary or permanent extension of DC adapter cables with 4.0 x 1.7 mm plugs

Key specifications

• Cable length: 2 m
• Connector 1: 4.0 x 1.7 mm (male)
• Connector 2: 4.0 x 1.7 mm (female)
• Rated input voltage: 12 V
• Rated current: 11.6 A
• Wire gauge: AWG 18
• Product colour: White
• Brand: InLine, MPN: 26902D, EAN: 4043718308880

How to use

Ensure both the power source and the device to be powered use compatible 4.0 x 1.7 mm DC connectors. Plug the male 4.0 x 1.7 mm connector of the extension cable into the female output of the power adapter, then connect the female 4.0 x 1.7 mm end to the device's DC input. Verify the adapter voltage is 12 V and the device current draw does not exceed 11.6 A. Route the cable to avoid sharp bends and pinch points.

Recommendations

Use the cable within the specified voltage and current ratings, avoid exposure to excessive heat or moisture, and check connectors for secure fitting. For installations with higher current or longer runs, consider cables with larger conductor gauges to reduce voltage drop.
