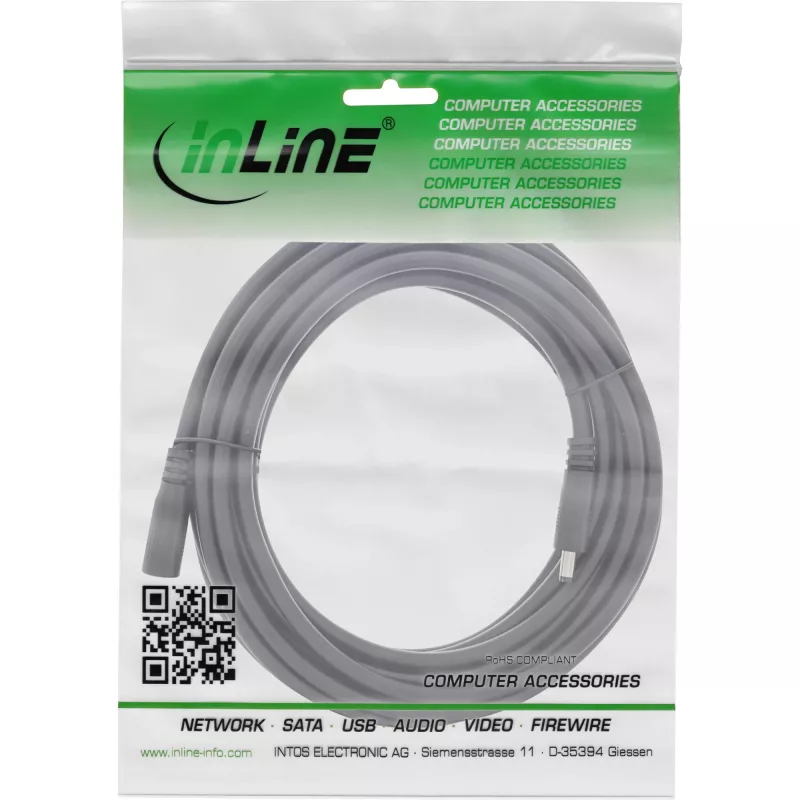

Cable de extensión DC InLine, conector macho/hembra DC 4,0x1,7mm, AWG 18, negro 5m

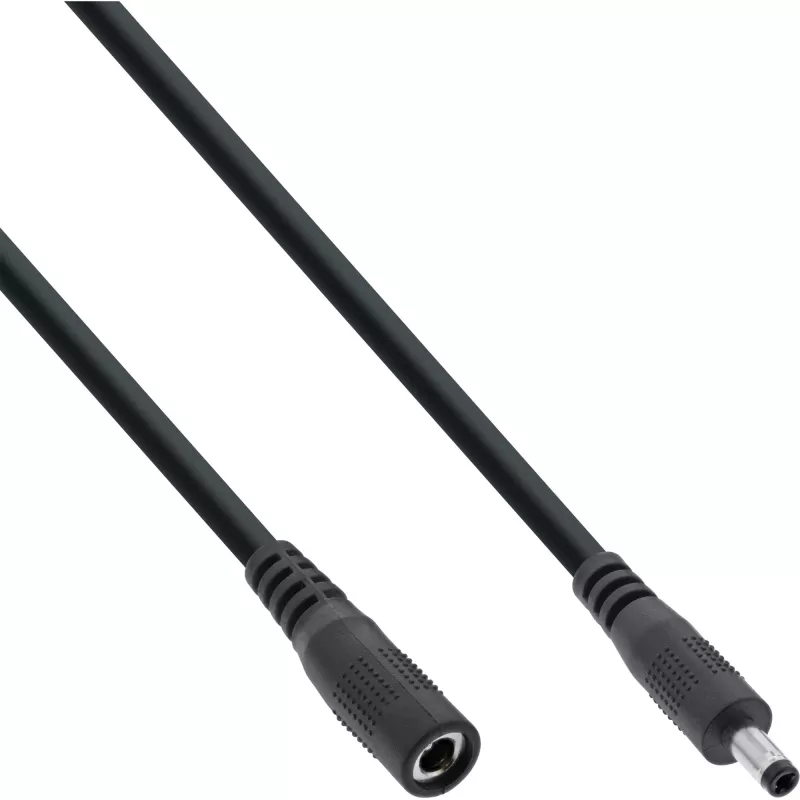

InLine DC extension cable 4.0x1.7mm AWG 18 black 5m is a 5-metre black power extension lead with 4.0 x 1.7 mm DC barrel connectors on both ends. It is designed to extend 12 V DC power lines while maintaining reliable power delivery for compatible devices.

Advantages

The cable uses AWG 18 conductors to support currents up to 11.6 A and minimizes voltage drop over the 5 m length. Both ends feature matching 4.0 x 1.7 mm DC barrel connectors for straightforward connection. The black jacket provides basic mechanical protection and a discreet appearance.

Suitable for

• Extending 12 V DC power to routers, monitors or CCTV cameras with 4.0 x 1.7 mm plugs
• Powering LED drivers and small appliances that accept 4.0 x 1.7 mm DC input
• Temporary or permanent installations where a 5 m extension is required

Key specifications

• Cable length: 5 m
• Connectors: 4.0 x 1.7 mm (both ends)
• Conductor gauge: AWG 18
• Rated input voltage: 12 V
• Rated current: 11.6 A
• Product colour: Black

How to use

Insert the male DC barrel plug into the device's DC input and connect the other end to the power supply or adapter with a matching 4.0 x 1.7 mm socket. Ensure the power supply is switched off while connecting. After making the connections, switch on the power supply and verify that the device receives power. Route the cable to avoid sharp bends or crushing.

Recommendations

Verify compatibility of the 4.0 x 1.7 mm connector and that the device accepts 12 V and up to 11.6 A. For long-term outdoor use, protect the cable and connectors from moisture and UV exposure; use appropriate sealing or conduit where necessary.
