Cable de extensión DC InLine, conector macho/hembra DC 5,5x2,5mm, AWG 18, blanco 3m

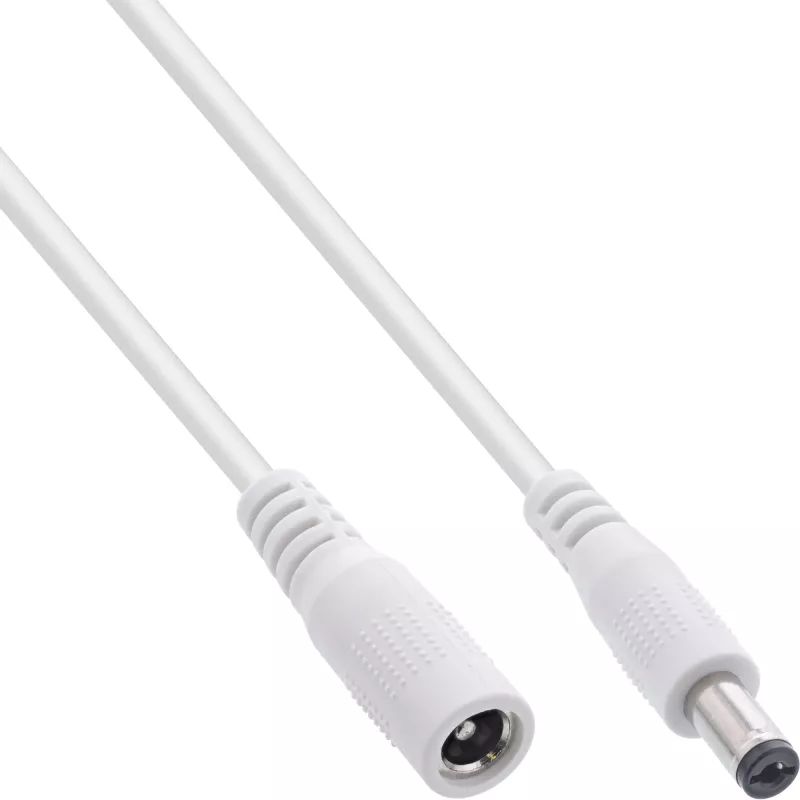

InLine DC extension cable, 5.5x2.5mm, AWG 18, white, 3 m length. The cable has a 5.5 x 2.5 mm male connector on one end and a 5.5 x 2.5 mm female connector on the other, and is designed for 12 V DC applications with a rated current of up to 11.6 A.

Advantages

The cable provides a simple and reliable way to extend DC connections while maintaining standard 5.5 x 2.5 mm polarity and fit. AWG 18 conductor size supports currents up to 11.6 A, and the 3 m length gives additional reach for power connections. The white jacket offers a neutral appearance suitable for many installations.

Suitable for

• Extending power cables for 12 V DC devices
• Connecting CCTV cameras, LED power supplies and routers
• Temporary or permanent routing where a 3 m extension is required

Key specifications

• Cable length: 3 m
• Connector 1: 5.5 x 2.5 mm (male)
• Connector 2: 5.5 x 2.5 mm (female)
• Conductor size: AWG 18
• Rated input voltage: 12 V DC
• Rated current: 11.6 A
• Product colour: White
• Brand: InLine
• MPN: 26903F
• EAN: 4043718308972

How to use

Connect the male 5.5 x 2.5 mm plug into the power output of the adapter or power supply, and connect the female 5.5 x 2.5 mm socket to the device’s DC input. Ensure correct polarity and that the combined current draw does not exceed the cable’s rated 11.6 A. Route the cable to avoid sharp bends and mechanical strain.

Recommendations

Use this InLine DC extension cable for low-voltage 12 V DC applications within the rated current. Avoid exposure to excessive heat, moisture, or mechanical damage; inspect connectors periodically for secure contact.
