Cable de fibra óptica DeLOCK conector CS a LC Duplex OS2 Uniboot 5 m

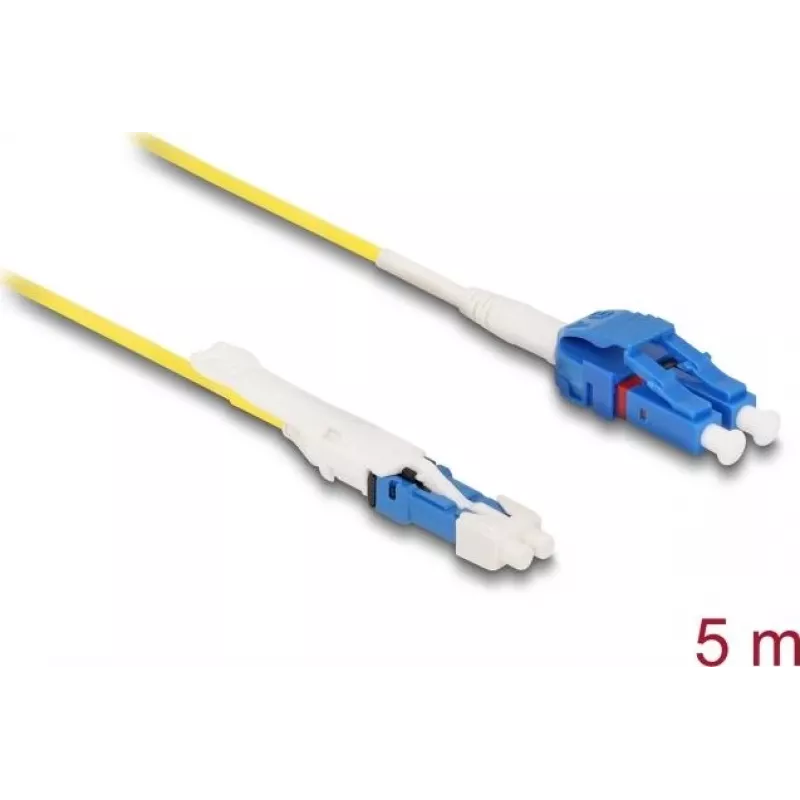

Optical Fiber Cable DeLOCK CS male to LC Duplex OS2 Uniboot 5m is a 5 metre singlemode patch cable designed for data centre and high-density networking environments. It features a CS male connector on one end and an LC duplex connector on the other, uses OS2 singlemode fiber with a 9 µm core and supports full duplex transmission. The cable is supplied in industry-standard colours for easy identification.

Advantages

The CS connector offers a very small form factor (VSFF) that enables higher packing density than comparable LC duplex connectors, making the cable suitable for densely populated racks and transceiver ports. The Uniboot design reduces cable bulk and simplifies routing, while the push-pull tab on the CS connector permits easy insertion and removal.

Suitable for

Key specifications

How to use

Route the 5 m Uniboot cable between the CS-equipped transceiver and the LC duplex port of the target device or patch panel. Align the CS male connector with the transceiver port and press until the push-pull tab seats the connector; remove by pulling the tab. Connect the LC duplex end to the corresponding LC duplex receptacle, ensuring correct polarity for transmit and receive pairs. Avoid sharp bends and secure the cable to prevent stress on connectors.

Recommendations

The cable is intended for indoor installation in structured cabling environments; handle the fiber carefully, maintain minimum bend radius recommended for singlemode OS2 fiber, and follow equipment manufacturer guidelines when mating CS and LC connectors.
