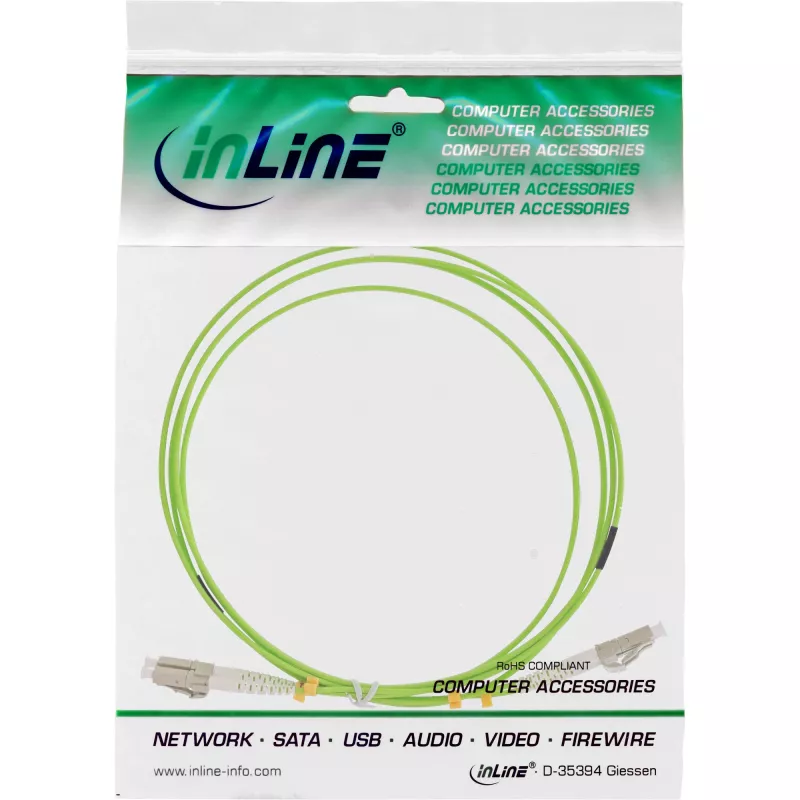

Cable de fibra óptica dúplex InLine LC/LC 50/125µm OM5 7,5 m

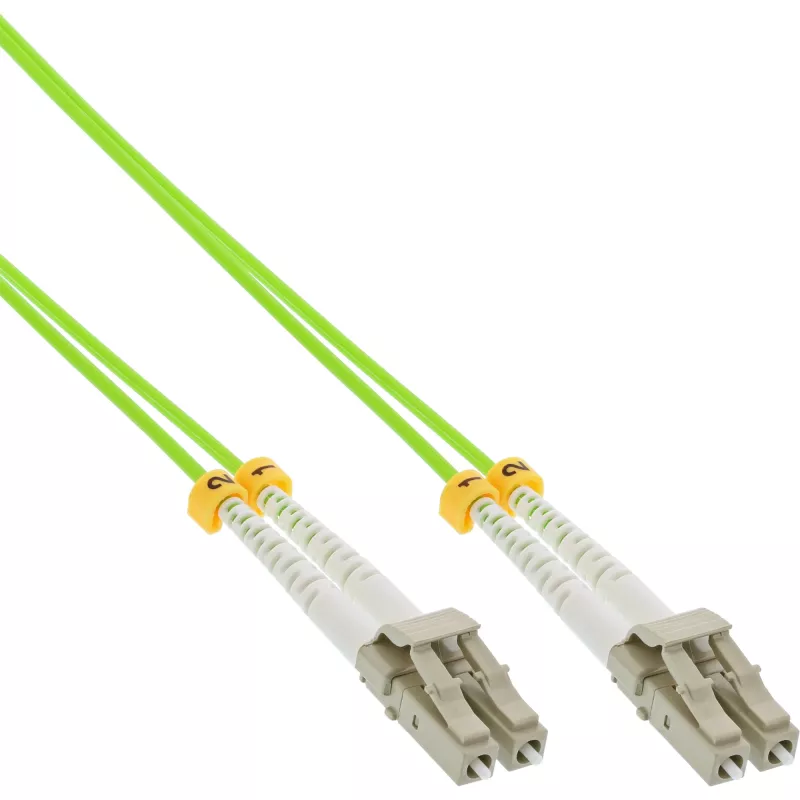

The InLine Fiber Optical Duplex Cable LC/LC 50/125µm OM5 7.5m is a multimode duplex fiber cable engineered for full-duplex data transmission over short to medium distances. It uses a 50/125 µm core/cladding geometry with OM5 graded-index multimode fiber optimized for wideband and shortwave wavelength division multiplexing (SWDM). Both ends are terminated with LC duplex connectors, providing compact, reliable connections for switches, transceivers, patch panels and network equipment in data centers and enterprise installations.

Advantages

This LC/LC duplex cable offers low insertion loss and consistent optical performance across multiple wavelengths, supporting higher bandwidth density compared with legacy multimode variants. The OM5 fiber design improves performance for SWDM-enabled transceivers and reduces the need for multiple single-mode links for some multi-wavelength applications. A 7.5 metre length provides flexibility for rack-to-rack or equipment-to-patch panel connections while maintaining signal integrity in typical structured cabling environments.

Suitable for

• Data center patching between switches, servers and transceivers
• High-bandwidth enterprise LANs and campus networks
• Shortwave wavelength division multiplexing (SWDM) applications
• Fiber patch panels and pre-terminated assemblies

Key specifications

• Fiber type: Multimode OM5 (graded-index)
• Core/cladding diameter: 50/125 µm
• Connector type: LC duplex on both ends
• Length: 7.5 metres
• Polishing: Factory-terminated polished endfaces for low return loss
• Duplex configuration for full-duplex links
• Typical applications: Short to medium distance high-bandwidth multimode links

How to use

Inspect connectors and fiber endfaces for dust or contamination before installing; clean with appropriate fiber-cleaning tools if necessary. Route the cable within cable management trays or through patching channels, ensuring bend radius is not exceeded and that the cable is secured to prevent strain on connectors. Insert LC duplex connectors into compatible LC ports on equipment, observing proper polarity for transmit/receive alignment. Verify link performance using an optical power meter or transceiver diagnostics after installation.

Recommendations

Handle connectors by their boot or housing, avoid touching the endfaces, and store protective dust caps until final connection. Maintain a minimum bend radius as specified for multimode fiber, avoid excessive pulling force, and perform end-to-end testing after installation to confirm optical budget and link integrity.
