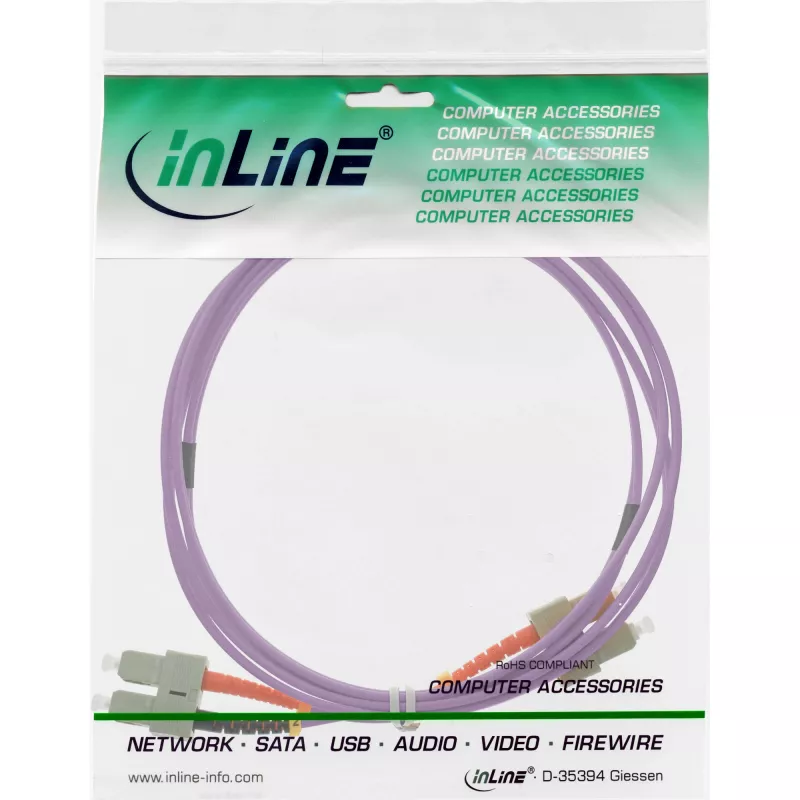

Cable de fibra óptica dúplex SC/SC InLine 83575P 50/125µm OM4 7,5m

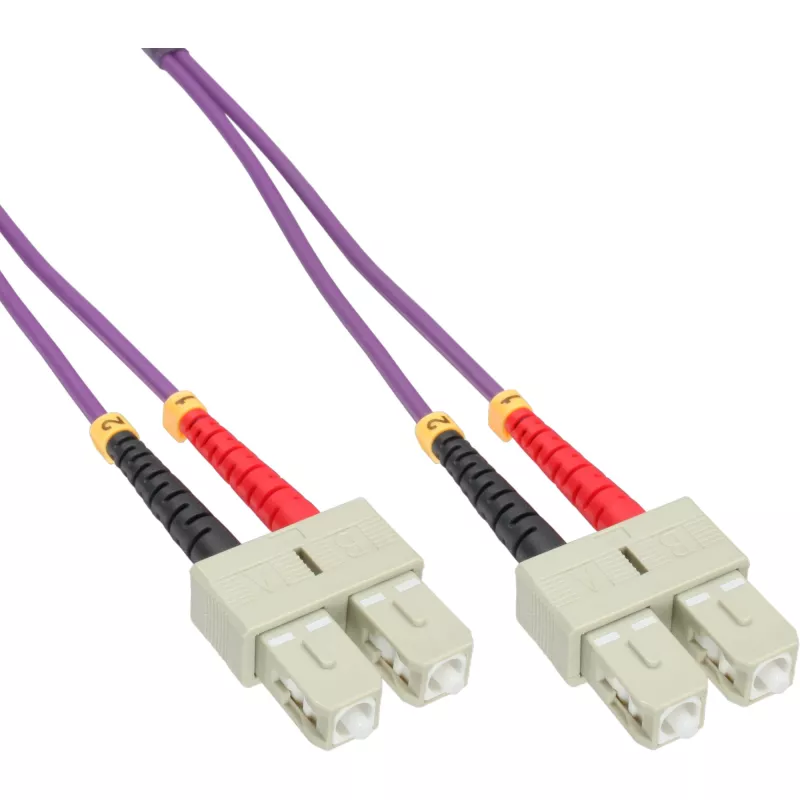

The InLine Fiber Optical Duplex Cable SC/SC 50/125µm OM4 7.5m is a multimode duplex patch cable designed for high-speed data transmission in local area networks and data center interconnects. The cable uses a 50 µm core with OM4 grading to support higher bandwidth and extended reach for multimode applications. Both ends are fitted with SC connectors in a duplex configuration, providing reliable full-duplex optical links over a 7.5 meter length. The cable construction emphasizes signal integrity and consistent performance for structured cabling systems and point-to-point connections.

Advantages

The OM4 50/125µm multimode fiber offers improved modal bandwidth and lower attenuation compared with lower-grade multimode fibers, enabling higher data rates and longer distances for multimode links. SC duplex connectors provide a stable mechanical connection with simple push-pull mating and good repeatability for frequent plugging cycles. A 7.5 m length gives flexible placement options between racks, equipment cabinets, or wall panels while keeping insertion loss minimal. The duplex format supports simultaneous transmit and receive channels for full-duplex operation.

Suitable for

• Short- to medium-range high-speed network links in data centers and server rooms
• Multimode backbone and horizontal structured cabling
• Connecting switches, transceivers, patch panels and optical equipment with SC interfaces
• Applications requiring full-duplex multimode fiber connections

Key specifications

• Fiber type: Multimode, OM4
• Core/cladding diameter: 50/125 µm
• Connector type: SC to SC, duplex
• Length: 7.5 m
• Polish/type: factory-terminated duplex patch cord
• Typical usage: indoor/structured cabling environments

How to use

Inspect connector endfaces for cleanliness before installation and clean with appropriate fiber cleaning tools if required. Route the duplex cable avoiding sharp bends and excessive tensile stress; observe the manufacturer's minimum bend radius for multimode fiber. Insert the SC connectors into matching SC receptacles until they click to ensure a secure connection. Use the duplex clip or keyed housings to maintain correct polarity and alignment of transmit/receive channels. Verify optical connectivity and link quality with suitable test equipment after installation.

Recommendations

Store and handle the cable in a dust-free environment and protect connector endfaces with dust caps when not connected. For best performance, keep bend radius greater than the minimum recommended for 50/125 µm multimode fiber and avoid repeated flexing near the connector area. Use this cable with compatible OM4-certified transceivers and patch panels to achieve optimal throughput and link stability.
