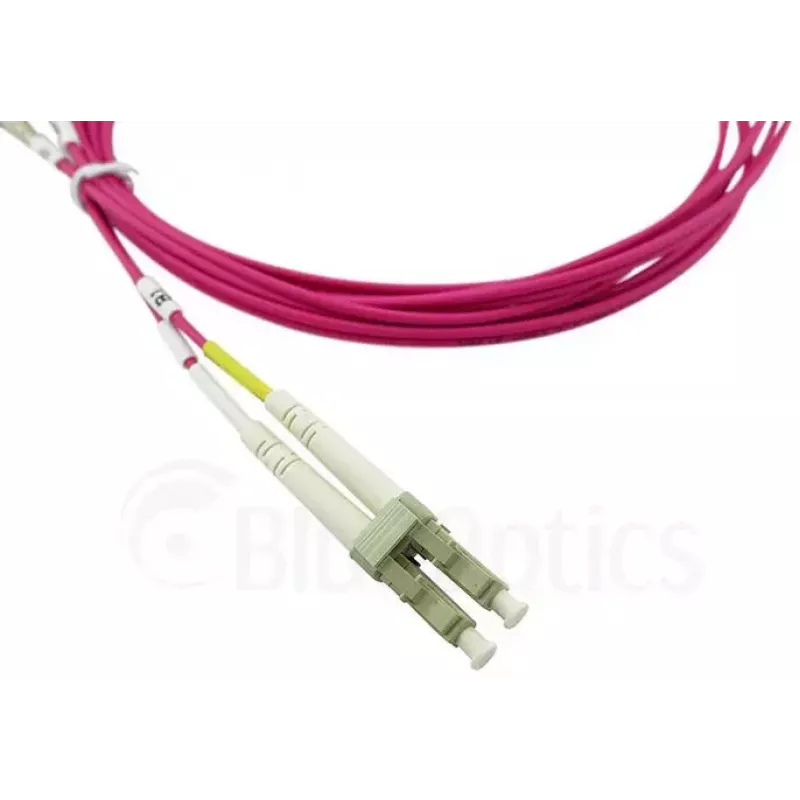

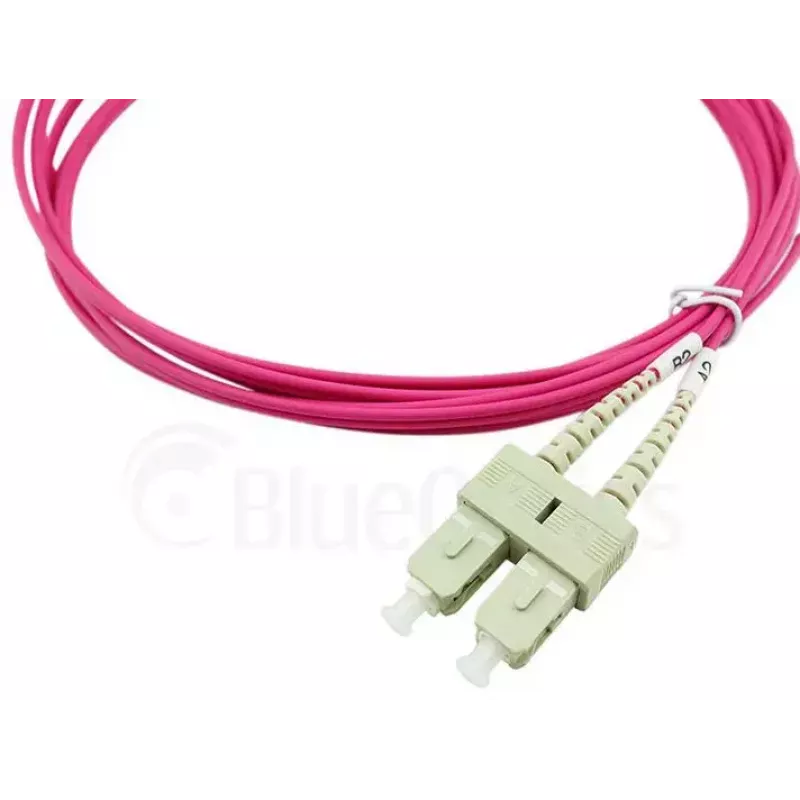

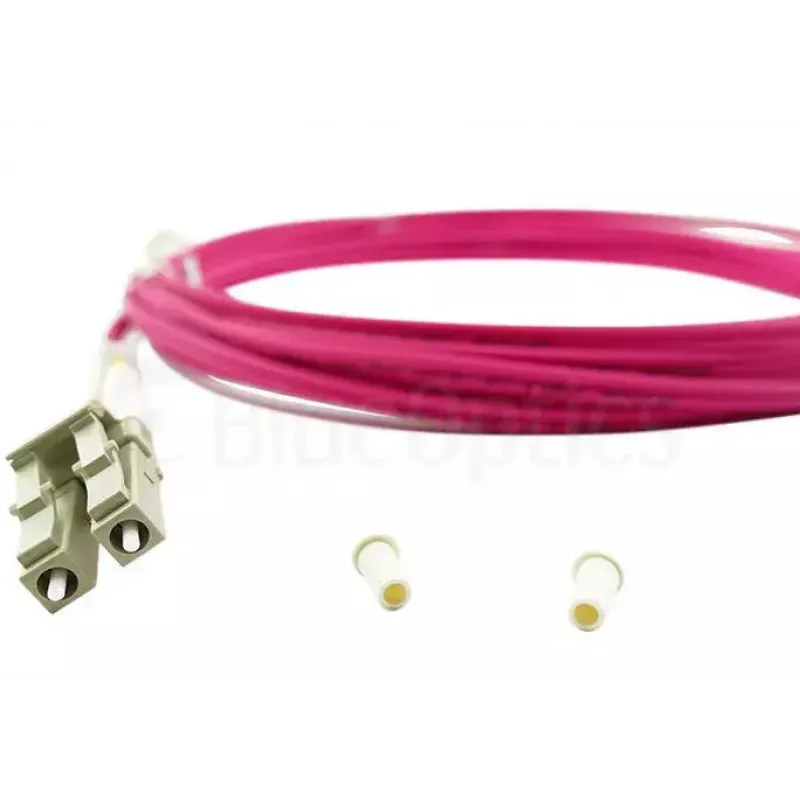

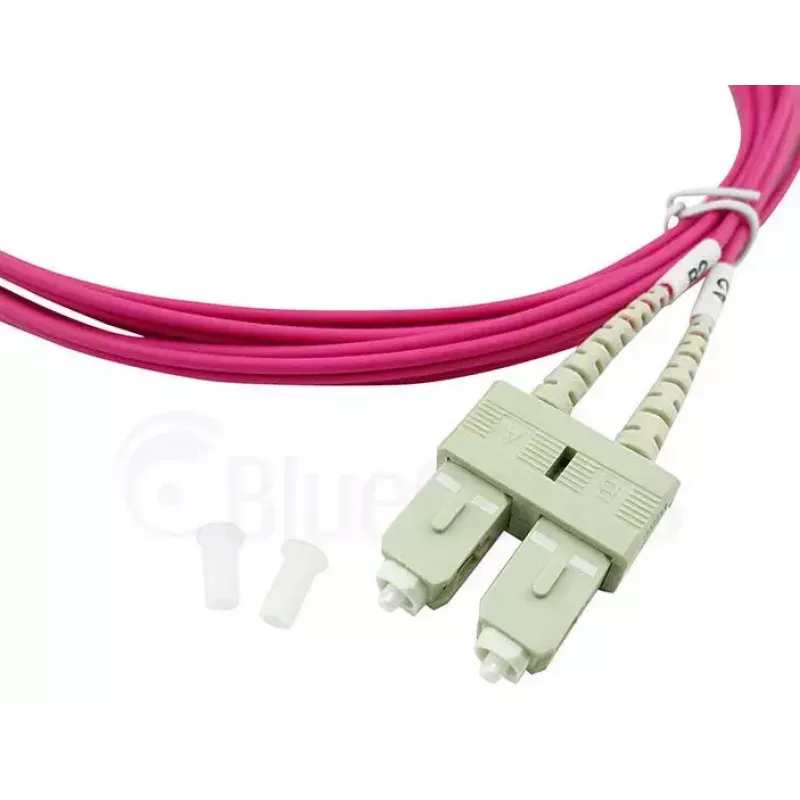

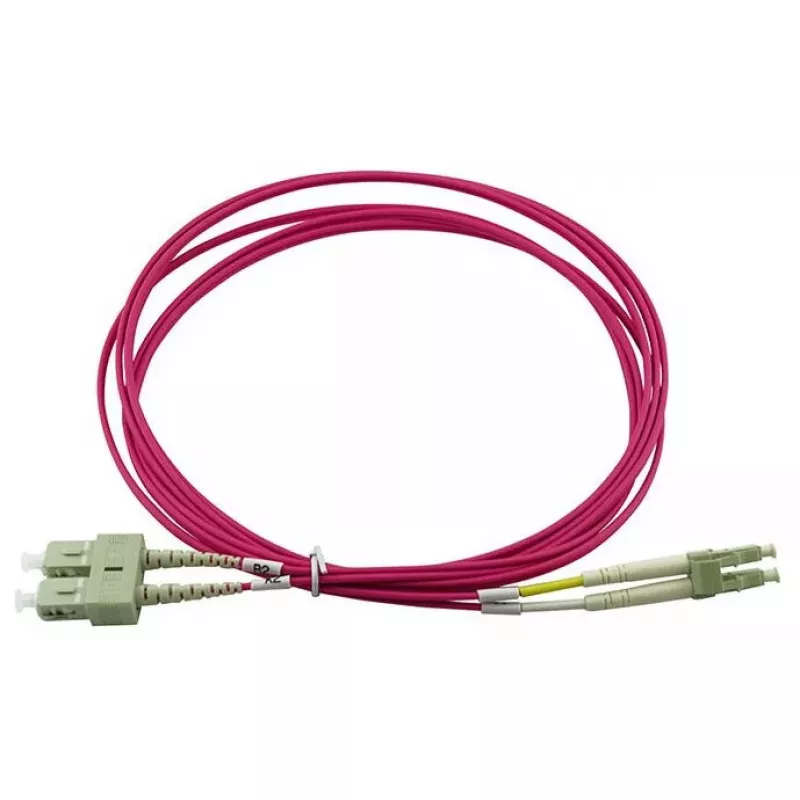

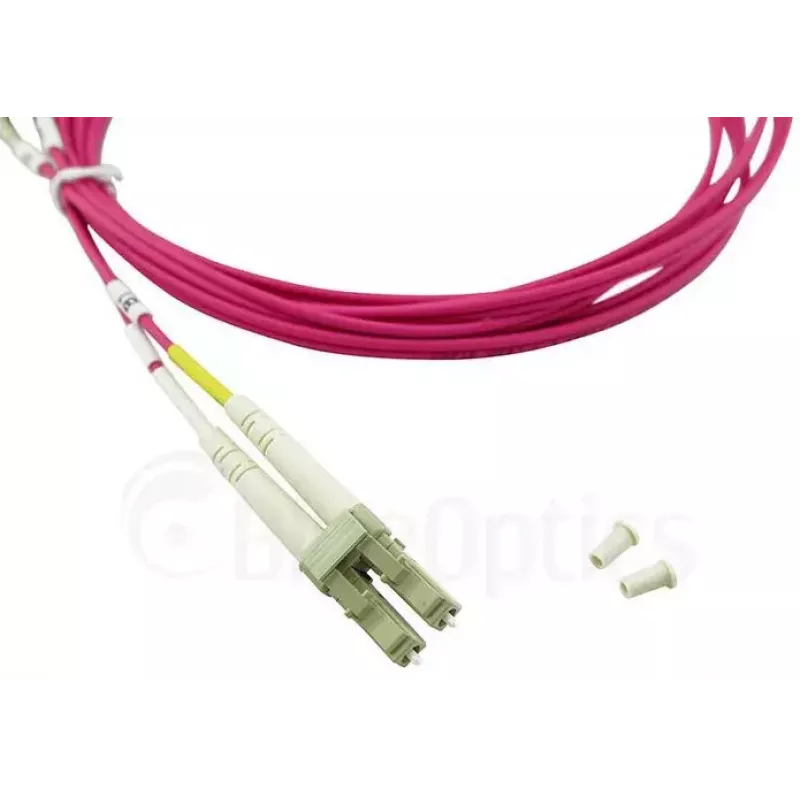

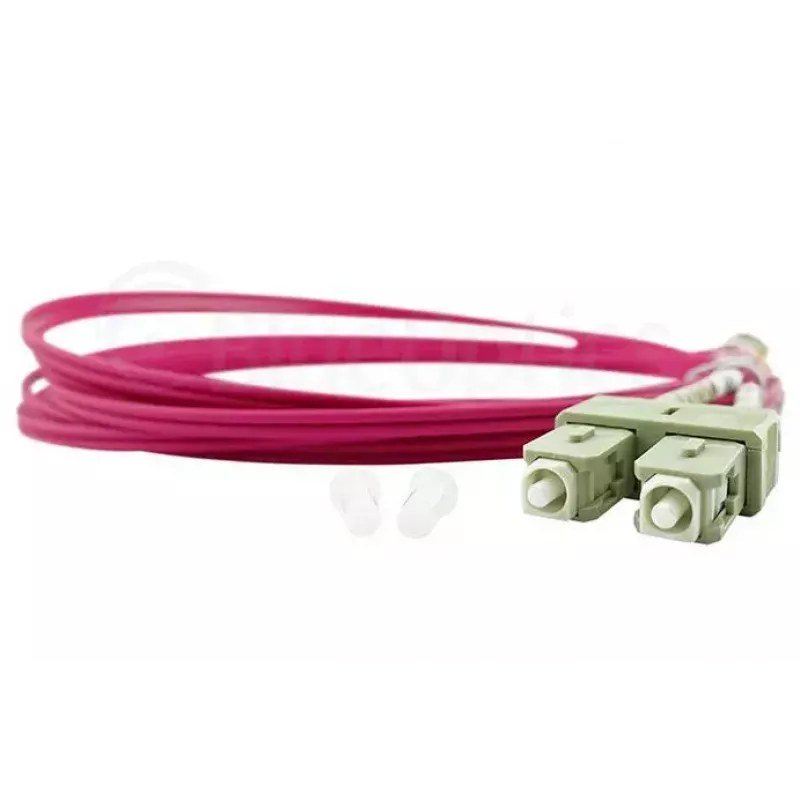

Cable de fibra óptica InfiniBand BlueOptics SFP3132FU3MK 3 m LC SC

BlueOptics SFP3132FU3MK is a 3 m duplex fibre optic patch cord with LC/UPC to SC/UPC connectors, laser-optimized multi-mode OM4 fibre (G50/125 µm) and a magenta LSZH jacket. The cable is designed for 850 nm transmission and for connecting patch panels, optical transceivers and other network equipment in InfiniBand and data centre environments.

Advantages

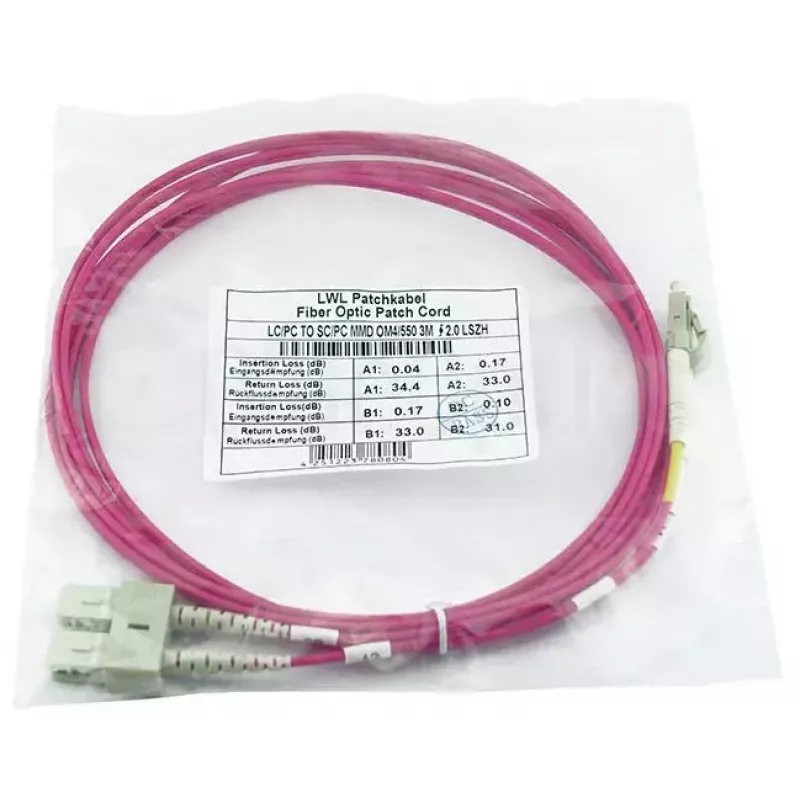

The OM4 multimode fibre provides low attenuation (2.5 dB/km) and high return loss; connector end-face polishing can be optimized (UPC or 8° APC) to further improve return loss. High-quality branded fibres and precision connectors with zirconia ceramic ferrules ensure reliable, low-loss connections and a mating durability of up to 1500 cycles. Each cable is tested with interferometer and OTDR and shipped with a measurement protocol for insertion loss and return loss. The LSZH jacket reduces smoke and avoids halogen release in case of fire, meeting common industry safety standards.

Suitable for

Key specifications

How to use

Inspect connectors and cable for visible damage before installation. Plug the LC connector into the LC port and the SC connector into the SC port, ensuring correct duplex orientation. Route the cable without tight bends and secure it to avoid strain on connectors. Use the supplied measurement protocol to verify insertion loss and return loss after installation and perform OTDR testing if additional verification is required.

Recommendations

For best performance, avoid bending the fibre beyond its minimum bend radius, keep connector end-faces clean using appropriate cleaning tools, and choose UPC or APC polishing according to the system requirements. Order custom lengths if standard lengths do not match your installation.
