Cable de fibra óptica InfiniBand BlueOptics SFP3133FU1MK 1 m LC ST

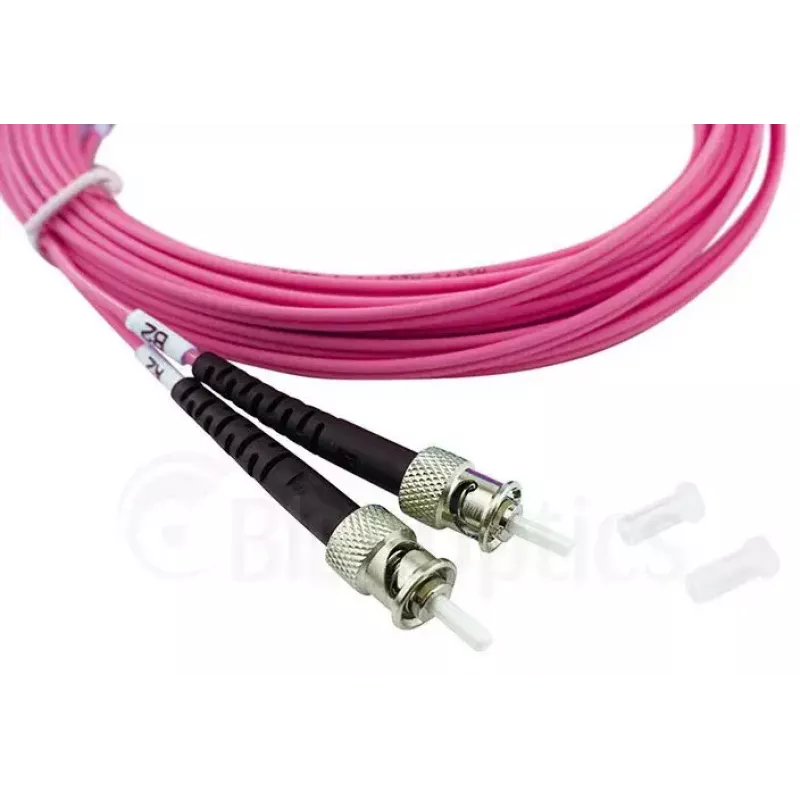

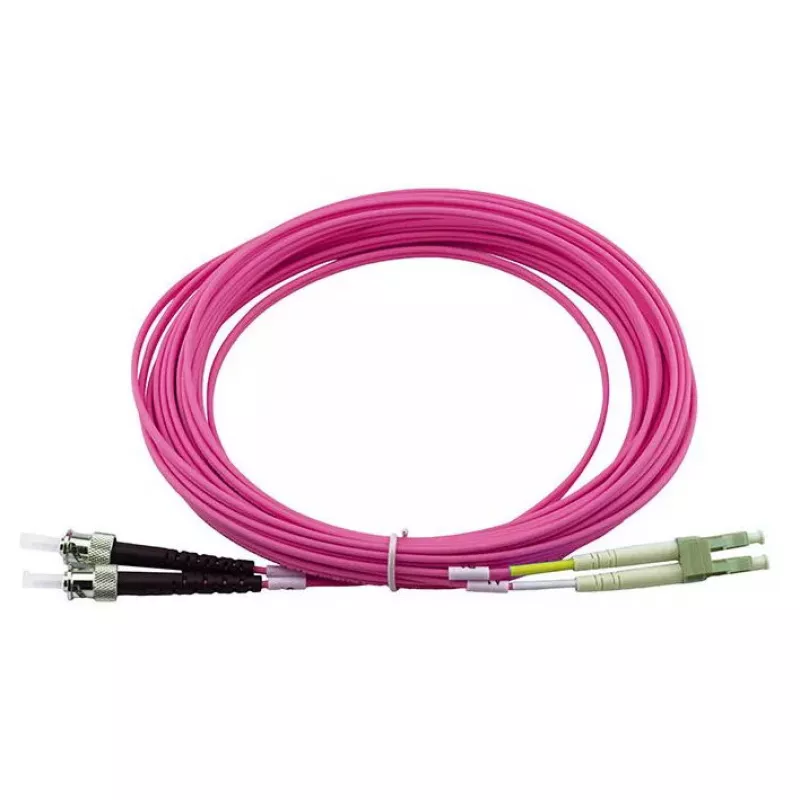

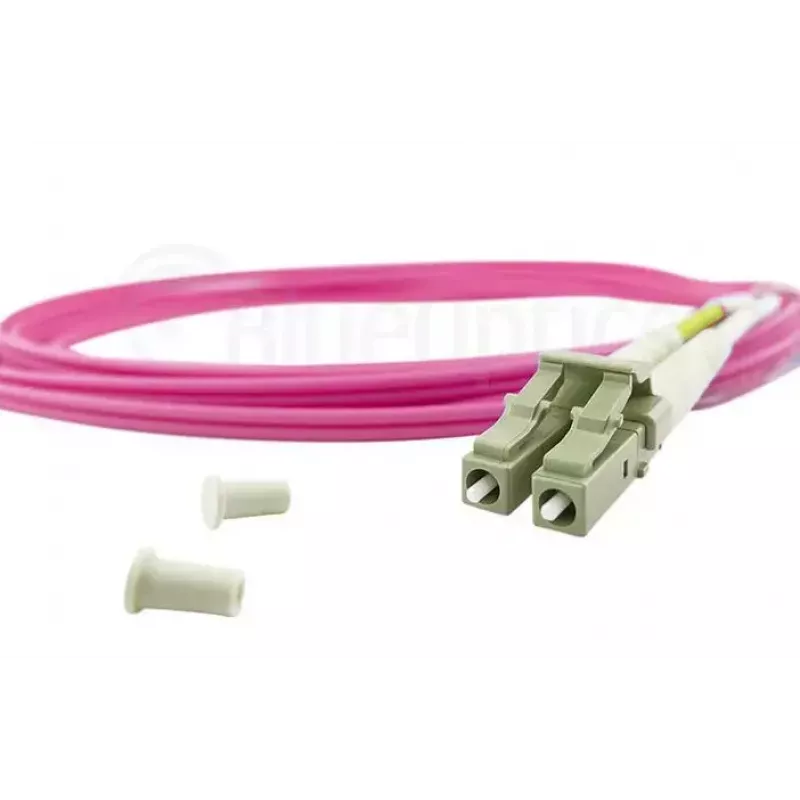

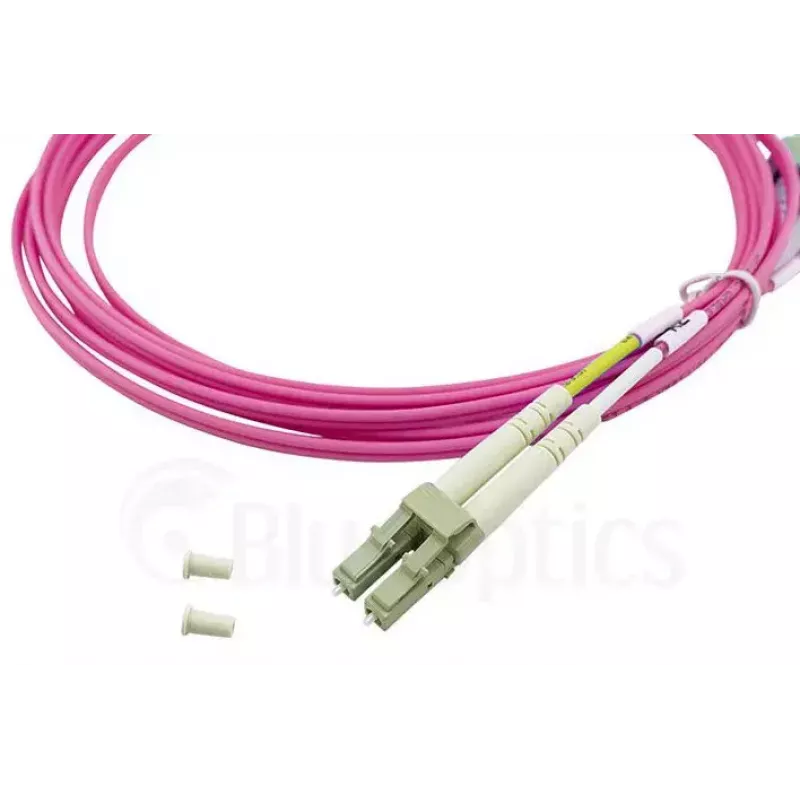

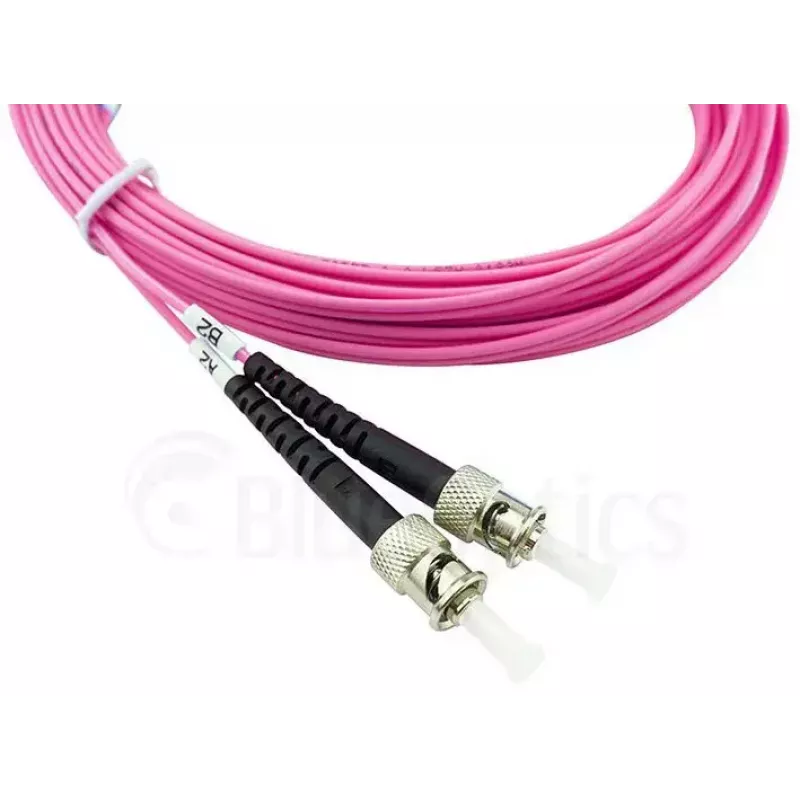

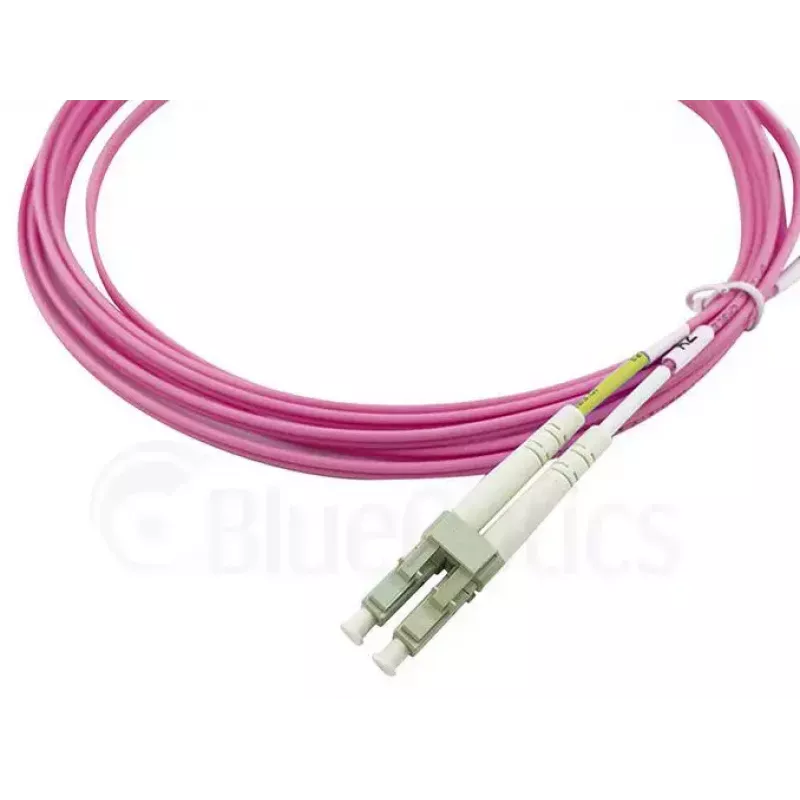

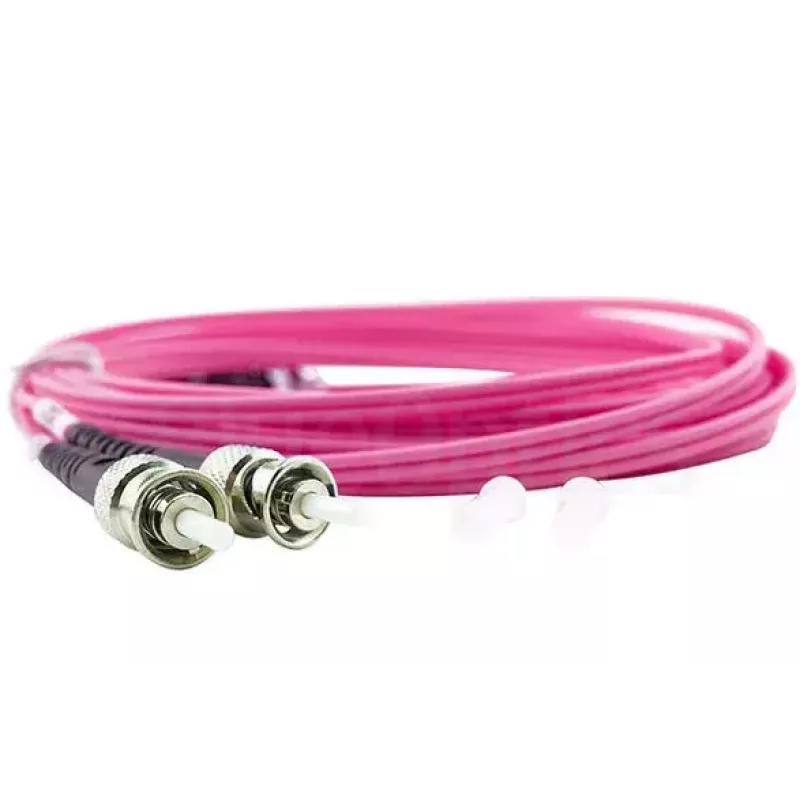

BlueOptics SFP3133FU1MK is a 1 meter duplex fiber optic patch cord with LC/UPC to ST/PC connectors and laser-optimized multimode OM4 fiber (50/125 µm core). The magenta-jacketed cable is designed for 850 nm transmission and supports full-duplex connections between patch panels, optical transceivers and other network equipment. The jacket material is LSZH for reduced smoke and no halogen emission in case of fire.

Advantages

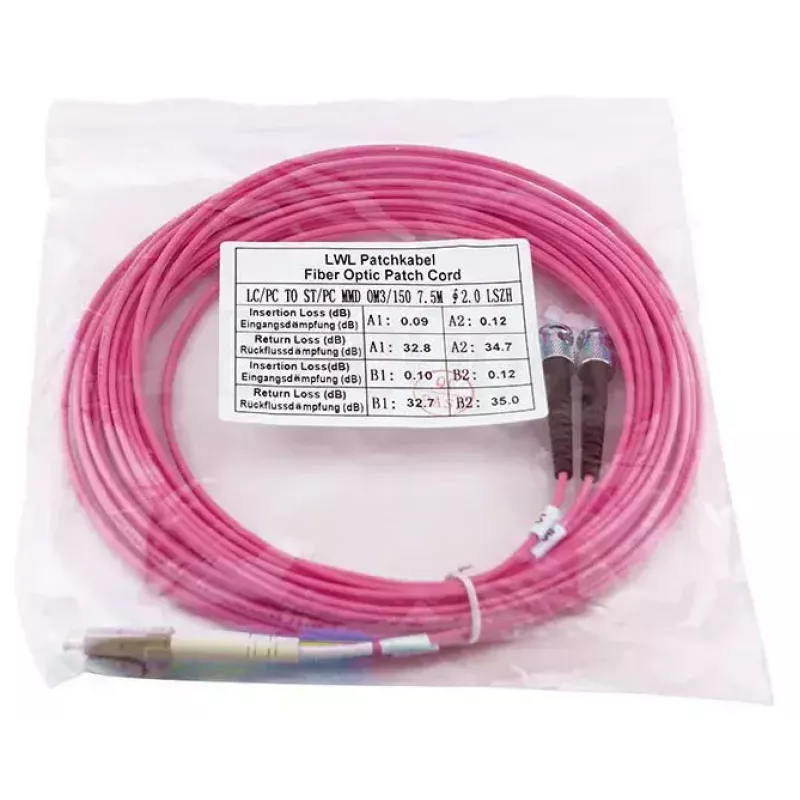

This OM4 LC–ST duplex cable offers low attenuation (2.5 dB/km), low insertion loss and high return loss. Connectors use zirconia ceramic ferrules from established manufacturers and are rated for up to 1500 mating cycles. Each cable is factory tested with interferometer and OTDR and shipped with a measurement protocol of insertion loss and return loss. The product is manufactured to meet Telcordia GR-326-Core requirements and multiple IEC safety norms.

Suitable for

Key specifications

How to use

Inspect connectors and cable for visible damage before installation. Insert the LC connector into the LC port and the ST connector into the ST port until each connector is secure. Route the cable avoiding tight bends (observe minimum bend radius) and secure it with appropriate cable management to prevent strain. Use the supplied measurement protocol to verify insertion loss and return loss after installation.

Recommendations

For optimal performance, keep optical endfaces clean using approved fiber cleaning tools and avoid repeated mating beyond specified cycles. Select cable lengths appropriate for the installation to minimise excess slack and maintain the minimum bend radius to preserve attenuation and return loss characteristics.
