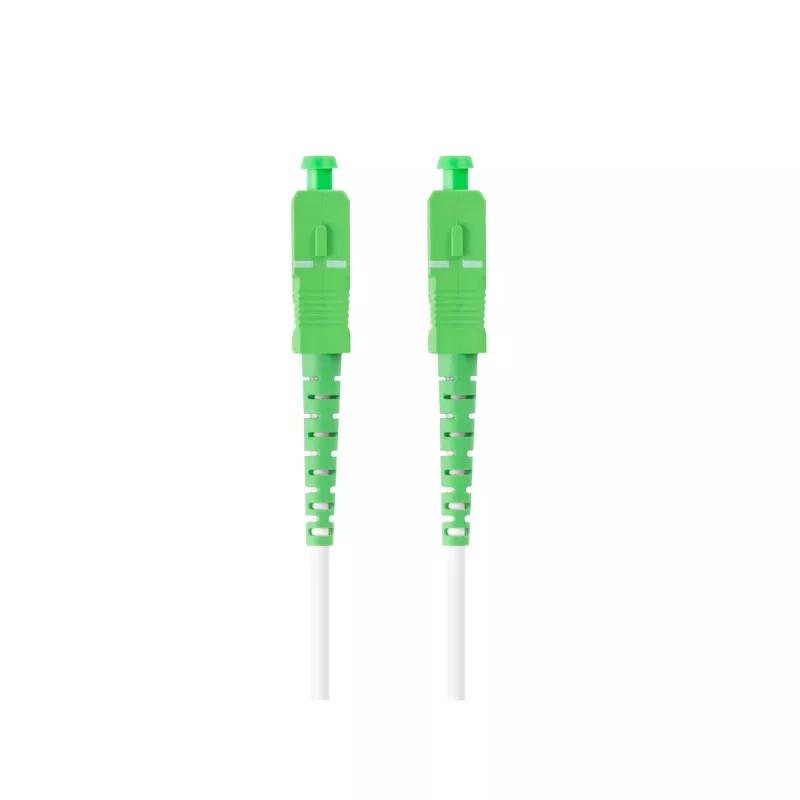

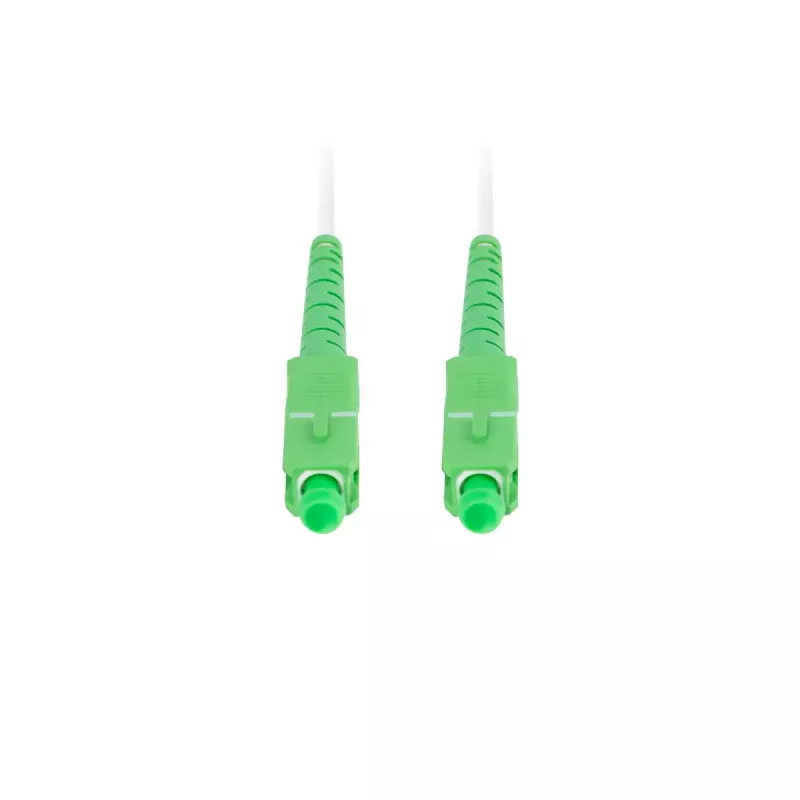

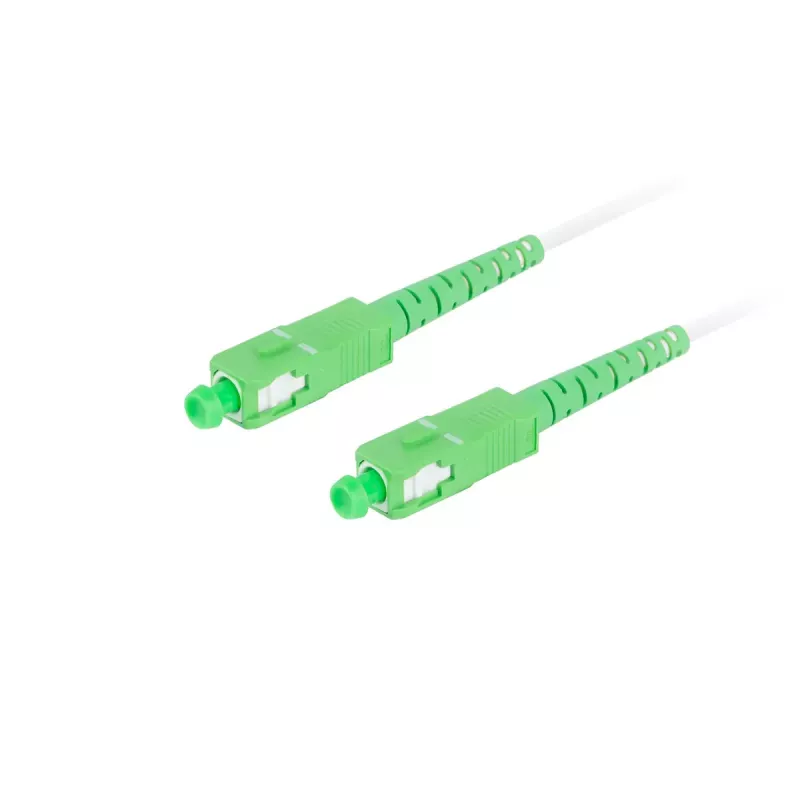

Cable de fibra óptica LANBERG FO-SASA-SS21-0100-WH 10 m, G.657.A2, SC–SC, 125 µm, blanco

LANBERG FO-SASA-SS21-0100-WH is a 10 m single-mode fibre optic patch cable with G.657.A2 bend-insensitive fibre and SC–SC APC connectors. The cable has a 9/125 µm core/cladding diameter, LSZH white jacket and a 3.0 mm simplex construction, suitable for network patching, telecom and data‑centre links that require flexible routing and low bend loss.

Advantages

The cable features bend-insensitive G.657.A2 fibre to reduce attenuation at tight radii, SC APC connectors for low back reflection (return loss > 60 dB) and low insertion loss (< 0.25 dB). The LSZH coating lowers toxic fume emission in confined spaces while the 3.0 mm simplex design provides a compact, easy-to-handle patch lead.

Suitable for

• Server rooms and data centres
• Telecommunications patch panels and cross-connects
• Indoor floor and wall routing with tight bends
• Optical equipment testing and temporary links

Key specifications

• Connector type: SC–SC (APC)
• Fiber standard: G.657.A2 (bend-insensitive)
• Fiber type: single-mode (SM), 9/125 µm
• Cable construction: SIMPLEX, diameter 3.0 mm, LSZH jacket
• Cable length: 10 m
• Insertion loss: < 0.25 dB
• Return loss: > 60 dB
• Operating temperature: -40 to 85 °C
• Minimum bend radius: 8 mm
• Color: White

How to use

Connect the SC APC connector ends to corresponding SC APC ports on transceivers or patch panels, ensuring proper alignment and gentle insertion until the connector latches. Route the cable with attention to the minimum bend radius (8 mm) and secure it using cable management accessories to avoid strain. For best optical performance, keep end-faces clean and inspect or clean connectors before mating.

Recommendations

The cable is intended for indoor use in structured cabling, telecom and data‑centre environments; avoid outdoor exposure and repeated tight bending beyond the specified minimum radius to maintain insertion and return loss performance.
