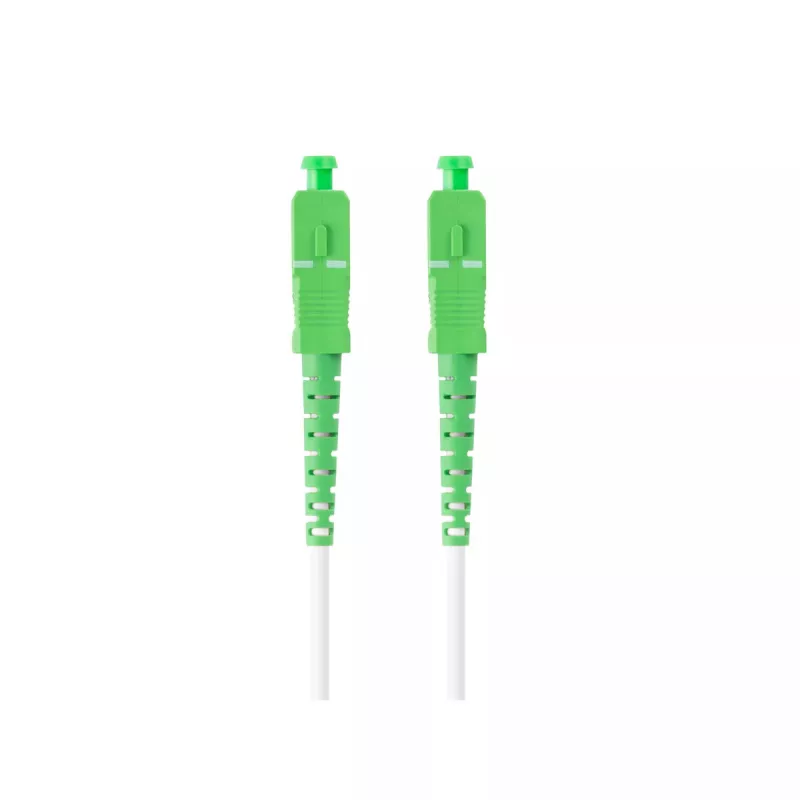

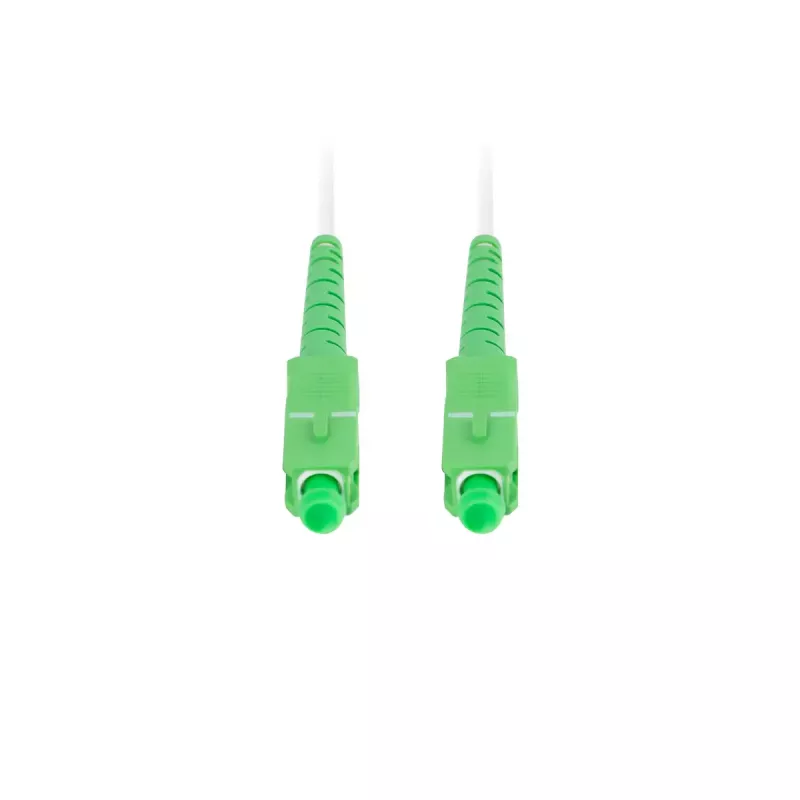

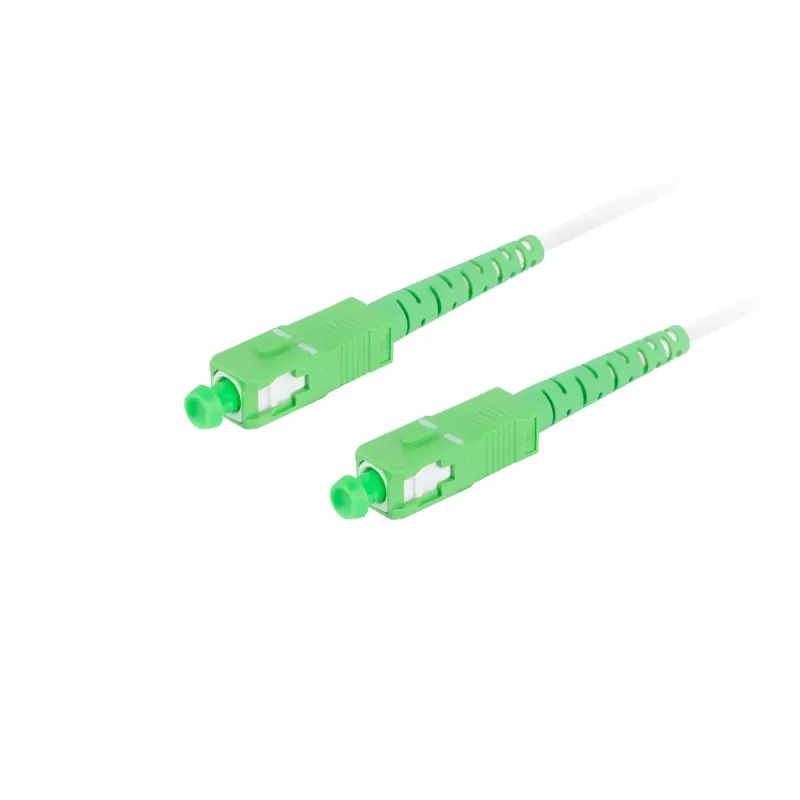

Cable de fibra óptica LANBERG FO-SASA-SS21-0300-WH — 30 m, G.657.A2, SC–SC, 125 µm, blanco

LANBERG FO-SASA-SS21-0300-WH is a 30 m single-mode fibre optic patch cable with G.657.A2 fibre and SC connectors on both ends. The cable has a 9/125 µm fibre diameter, LSZH coating and a 3.0 mm simplex construction, offering low-bend-loss performance suitable for data centres, server rooms and longer patch runs.

Advantages

This single-mode SC–SC cable with G.657.A2 fibre provides low insertion loss (< 0.25 dB) and high return loss (> 60 dB). Its LSZH jacket reduces smoke and toxic gas emission in case of fire, and the small minimum bend radius (8 mm) ensures stable transmission in tight routing paths. The 30 m length allows flexible connection between racks and equipment.

Suitable for

• Interconnects in data centres and server rooms
• Long-distance patching between network equipment
• Environments requiring low-smoke, halogen-free cabling
• Installations with limited cable routing space or tight bends

Key specifications

• Connector type: SC–SC simplex
• Polishing standard: APC
• Fiber type: G.657.A2 single-mode
• Core/cladding diameter: 9/125 µm
• Cable construction: Simplex, diameter 3.0 mm
• Coating: LSZH (Low Smoke Zero Halogen)
• Insertion loss: < 0.25 dB
• Return loss: > 60 dB
• Operating temperature range: -40 to 85 °C
• Minimum bend radius: 8 mm
• Color: White
• Cable length: 30 m

How to use

Route the cable between SC ports ensuring connectors align with device adapters. Avoid sharp bends and secure the cable along its path, keeping bends above the 8 mm minimum radius. Clean connector endfaces before insertion and inspect APC-polished ferrules for contamination to maintain the specified insertion and return loss values.

Recommendations

For reliable performance, use this G.657.A2 SC–SC cable in indoor installations where low-bend-loss and LSZH properties are required; store and handle the cable on reels or looped supports to prevent kinks and protect connector endfaces with dust caps when not connected.
