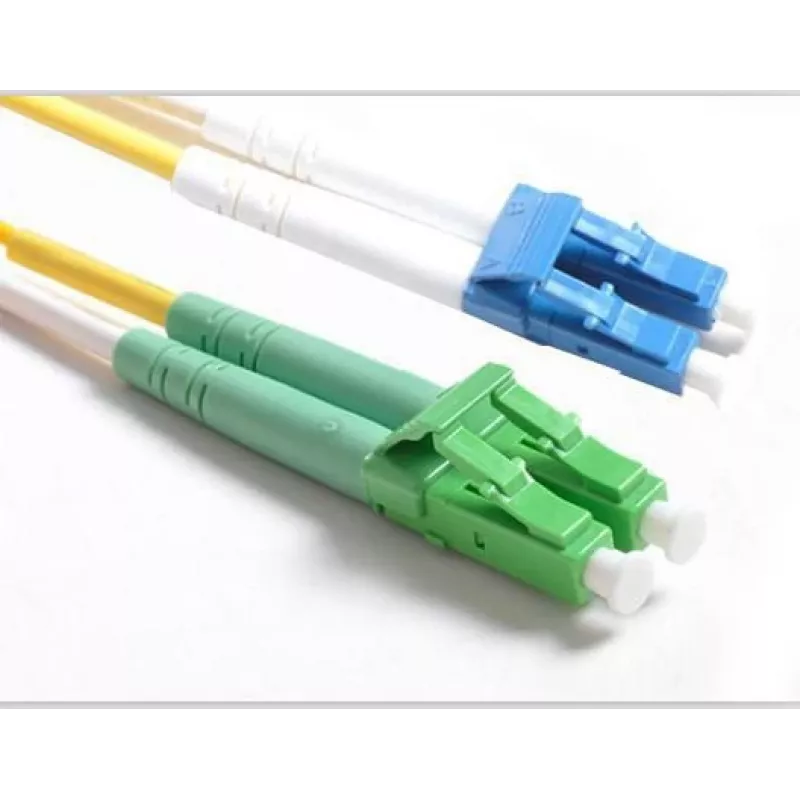

Cable de fibra óptica Microconnect FIB447001 InfiniBand 1 m amarillo OS2

Microconnect FIB447001 InfiniBand fibre optic cable, 1 m, Yellow OS2 is a single-mode patch cord designed for high-speed data transmission in enterprise networks, telecom rooms, server farms and cloud storage networks. The OS2 fibre type and LSZH jacket ensure low attenuation and compliance with common industry standards, making the cable suitable for connecting 1G/10G/40G/100G Ethernet and InfiniBand links over long distances.

Advantages

The cable provides low signal loss typical of OS2 single-mode fibre and supports long-distance transmission (up to 10 km at 1310 nm and up to 40 km at 1550 nm). The LSZH (low-smoke zero-halogen) jacket improves safety in enclosed spaces and the 1 m length and yellow colour make the cable easy to identify and route within racks and patch panels.

Suitable for

• Data centres and server farms
• Telecom rooms and rack interconnects
• Cloud storage and high-performance computing networks
• Connections requiring 1G/10G/40G/100G Ethernet or InfiniBand links

Key specifications

• Brand: MicroConnect
• MPN: FIB447001
• EAN: 5704174021544
• Length: 1 m
• Fibre type: OS2 (single-mode)
• Jacket: LSZH
• Colour: Yellow
• Transmission distance: up to 10 km at 1310 nm, up to 40 km at 1550 nm

How to use

Connect the InfiniBand fibre optic cable between compatible transceivers or ports on network equipment, ensuring the connectors are clean and properly aligned before insertion. Route the cable through cable management systems to avoid excessive bending; adhere to minimum bend radius specifications for single-mode fibre. Verify link status on network devices after installation and test the connection with appropriate diagnostic tools.

Recommendations

Store and handle the cable in a clean environment, protect connector endfaces from dust and scratches with dust caps when not in use, and avoid tight bends or kinks. For critical links, perform optical loss testing after installation to confirm performance.
