Cable de fibra óptica monomodo LSZH 9/125 OS2 de 10 m con protección antipellizcos corta, dúplex LC ACT

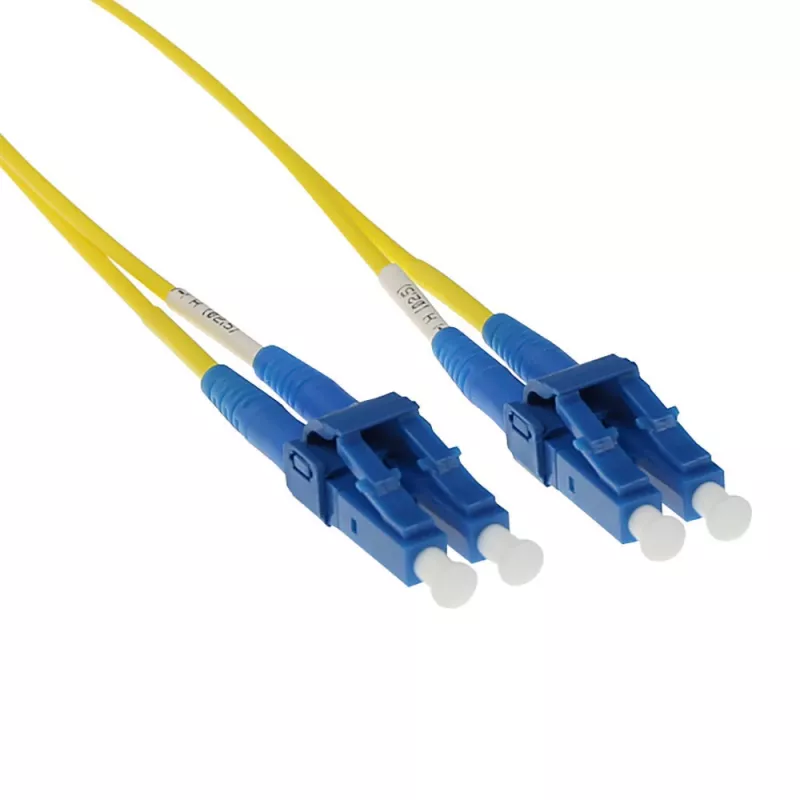

The ACT Fiber Patch Cable LSZH Singlemode 9/125 OS2 10m Duplex LC (model RL1710, EAN 8716065322057) is a 10‑metre indoor singlemode fiber cable with duplex LC connectors and an LSZH jacket. It is designed for low-loss, high-speed links in data centers and telecom installations where fire-safe, low-smoke materials are required. Each cable is provided with a full test report (IL and RL) and 100% end-face inspection.

Advantages

This singlemode 9/125 OS2 patch cable uses Grade A fiber and UPC polish on LC connectors to ensure consistent optical performance. Laser-precision cleaving improves connector end-face quality, while individual insertion loss (IL) and return loss (RL) testing plus full end-face inspection guarantee reliable link verification for critical network deployments.

Suitable for

• Data center fibre links between equipment and patch panels
• Telecommunications backbone and access networks
• Indoor installations requiring low smoke zero halogen (LSZH) cabling
• High-speed singlemode connections with duplex LC interfaces

Key specifications

• Length: 10 m
• Connector type: Duplex LC (UPC)
• Fiber type: Singlemode 9/125 µm, OS2
• Jacket: LSZH (Low Smoke Zero Halogen)
• Fiber grade: Grade A
• Quality control: Individual IL and RL test report; 100% end-face inspection
• Cleaving method: Laser precision cleaving
• Brand / MPN / EAN: ACT / RL1710 / 8716065322057

How to use

Connect each LC duplex connector to the corresponding LC ports on your transceivers, patch panel or network equipment, observing transmit/receive orientation. Avoid tight bends and maintain the minimum bend radius specified by the equipment manufacturer. Ensure connectors and ports are clean before mating; use the supplied test report to verify insertion loss values against your network requirements.

Recommendations

Store and handle the cable in a clean environment, keep connector end caps in place when not in use, and perform visual inspection or cleaning of end-faces before installation to maintain optimal optical performance.
