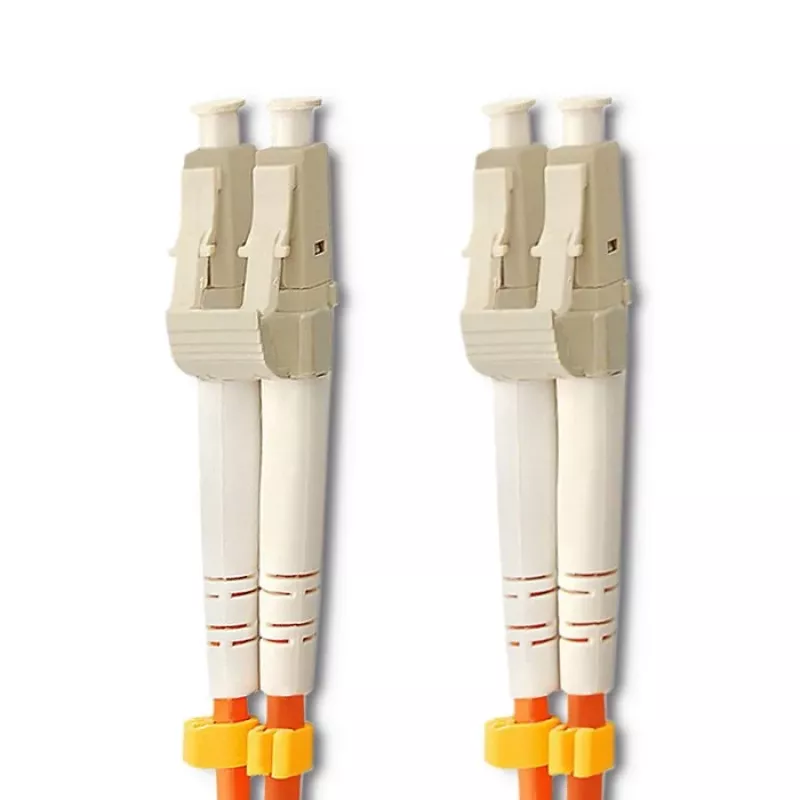

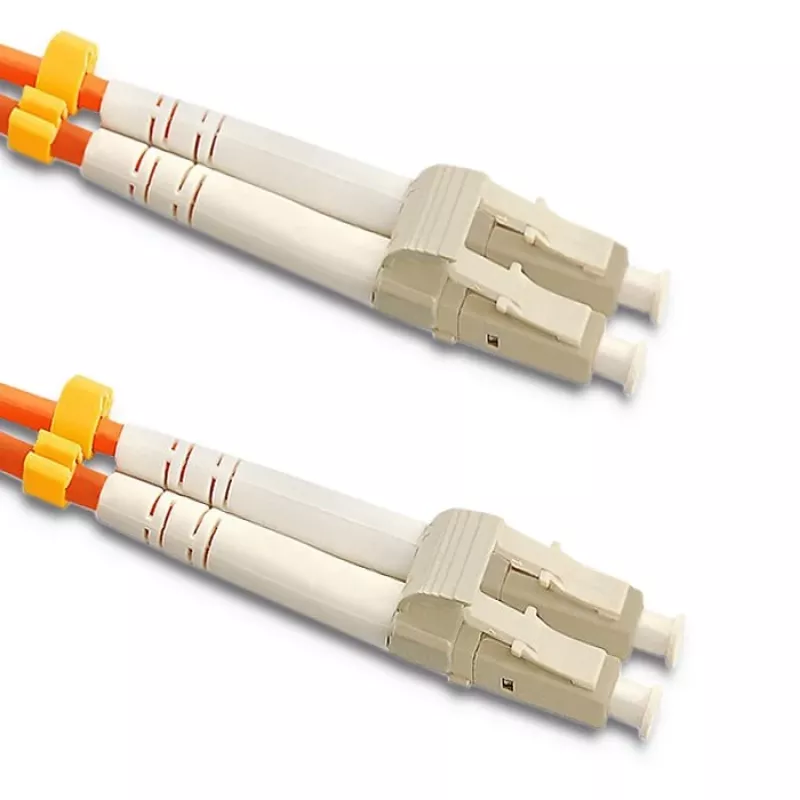

Cable de fibra óptica Qoltec LC/UPC a LC/UPC multimodo OM2 dúplex 20m

The Qoltec Fiber Optic Patch Cable is a high-performance duplex multimode patch cord designed for reliable data transmission in data centers, local area networks (LAN), storage area networks (SAN), and telecommunications. Featuring LC/UPC connectors on both ends, OM2 fiber type, and a 50/125 µm core/cladding diameter, this 20-meter cable ensures low insertion loss and high return loss for optimal signal integrity. The cable is constructed with a durable LSZH (Low Smoke Zero Halogen) jacket, making it suitable for environments where fire safety is a priority. Its orange color and 3.0 mm diameter facilitate easy identification and installation.

Advantages

This patch cable offers several benefits: low insertion loss (≤0.3 dB) and high return loss (≥30 dB) for excellent signal quality; LSZH jacket reduces toxic smoke in case of fire; duplex design supports bidirectional communication; robust construction withstands up to 500 mating cycles; and compliance with international standards ensures interoperability.

Suitable for

• Data centers requiring high-speed fiber connections
• Local area networks (LAN) and storage area networks (SAN)
• Telecommunications infrastructure
• Fiber optic patch panels and network equipment

Key specifications

• Connector Type: LC/UPC to LC/UPC
• Fiber Mode: Multimode
• Fiber Type: OM2
• Core/Cladding Diameter: 50/125 µm
• Cable Configuration: Duplex
• Cable Length: 20 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 3.0 mm
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius (Installation): 30 mm
• Minimum Bend Radius (Long Term): 10 mm
• Cable Color: Orange
• Standards Compliance: IEC 61754-20, TIA/EIA-604-10
• Durability: 500 Mating Cycles

Recommendations

For optimal performance, ensure connectors are clean before mating. Avoid exceeding the minimum bend radius during installation. This cable is ideal for short to medium distance multimode fiber links.
