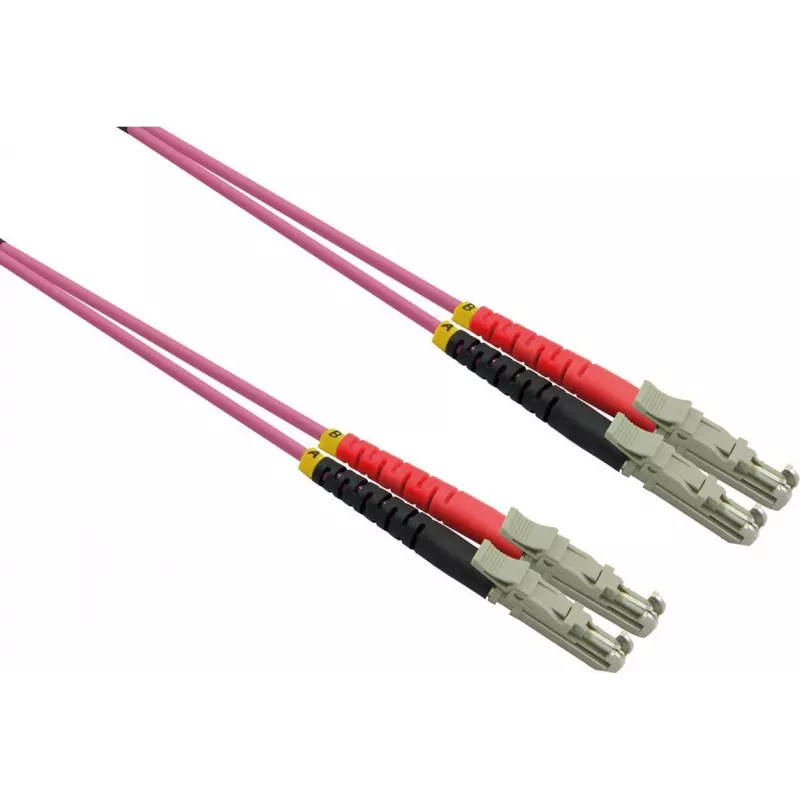

Cable de fibra óptica ROLINE 21.15.9497 10 m E-2000 (LSH)

The ROLINE 21.15.9497 is a 10 m OM4 fibre optic cable fitted with E-2000 (LSH) connectors on both ends, each polished to UPC standard. With a 50 µm core and full-duplex configuration, this cable is designed for high-speed data transmission and reliable interconnection in data centers and high-performance network environments.

Advantages

Both ends feature E-2000 (LSH) connectors polished to UPC, providing low back reflection and stable optical contact. The OM4 multimode specification and 50 µm core diameter support higher bandwidth over short to medium distances. The full-duplex design enables simultaneous bidirectional data flow, suitable for modern network equipment.

Suitable for

• Interconnecting switches, servers and storage in data centers
• High-speed multimode network links (10GbE and higher where OM4 is applicable)
• Patch panels and fibre distribution frames

Key specifications

• Length: 10 m
• Fiber type: OM4 multimode
• Core diameter: 50 µm
• Connector type: E-2000 (LSH) — both ends
• Polish: UPC on both connectors
• Mode: Full duplex

How to use

Align each E-2000 connector with the corresponding port and push until the latch engages; ensure connectors are clean before insertion to avoid signal loss. Use the cable for direct device-to-device connections or to patch between panels. Avoid sharp bends, excessive pulling force and exposure to contaminants to maintain optical performance.

Recommendations

Clean connector endfaces before use with appropriate fibre cleaning tools, route the cable with proper bend radius for OM4 multimode fibres, and store unused connectors with protective caps to preserve UPC polish quality and minimize insertion loss.
