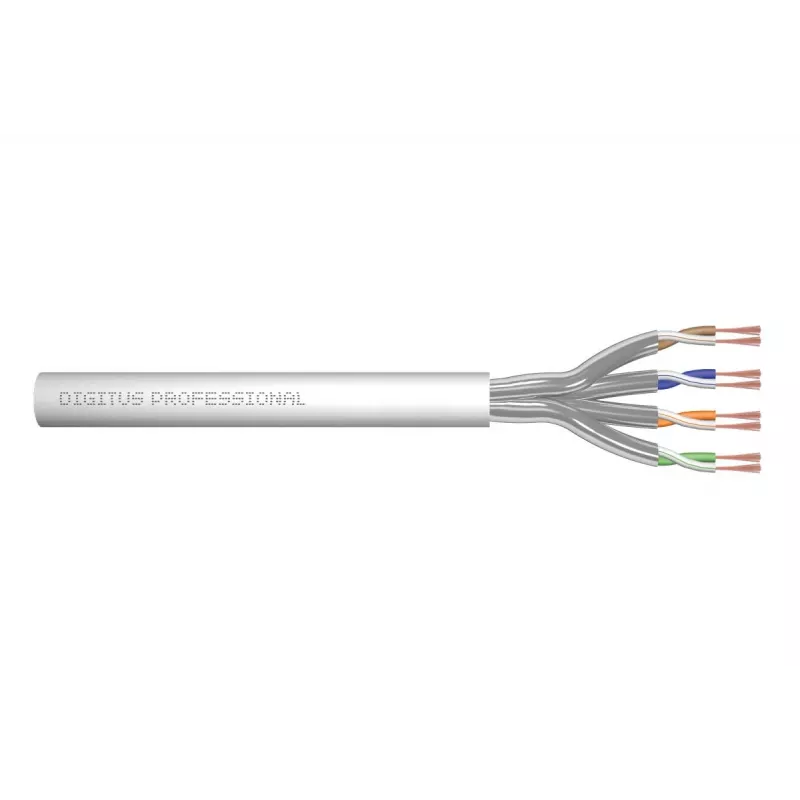

Cable de instalación DIGITUS - CAT6a - U/FTP - AWG 27/7 - 100m - gris

Future-oriented standards and high-end quality for your network. These raw patch cords are designed for the direct assembly of RJ45 connectors to produce patch cords and are suitable for class EA cable installations up to 500 MHz. Manufactured from copper conductors, the cables comply with ANSI/TIA-568-C, ISO/IEC 11801 2nd Ed., EN 50173-1 and EN 50288-10-1 and are PoE+ ready.

Advantages

The cables are produced and tested according to ISO/IEC 11801 and DIN EN 50173 specifications, ensuring compatibility with ISO & EN channel requirements and delivering stable performance for structured cabling systems. Their construction with copper conductors supports reliable signal transmission and makes them suitable for creating custom patch cords by crimping RJ45 connectors.

Key specifications

• Standards: ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1; EN 50288-10-1
• Category: Class EA (500 MHz)
• Conductor material: Copper (Cu)
• Application: Direct assembly of RJ45 connectors for patch cords
• PoE support: PoE+ ready
• Manufacturing/tests: According to ISO/IEC 11801 and DIN EN 50173

How to use

Strip the cable jacket and prepare the twisted pairs according to the RJ45 connector manufacturer's instructions, align and insert the conductors into the connector, then crimp to secure the connection. After assembly, test the finished patch cord to verify continuity and performance according to relevant channel test standards.

Recommendations

For reliable network performance, use certified RJ45 connectors compatible with class EA cables and perform certification tests after assembly to confirm compliance with ISO/EN channel requirements. Store unused cable reels in a dry, dust-free environment.
