Cable de instalación para exterior InLine S/FTP PiMF Cat.7a AWG 23 cobre 1200 MHz PE, 500 m

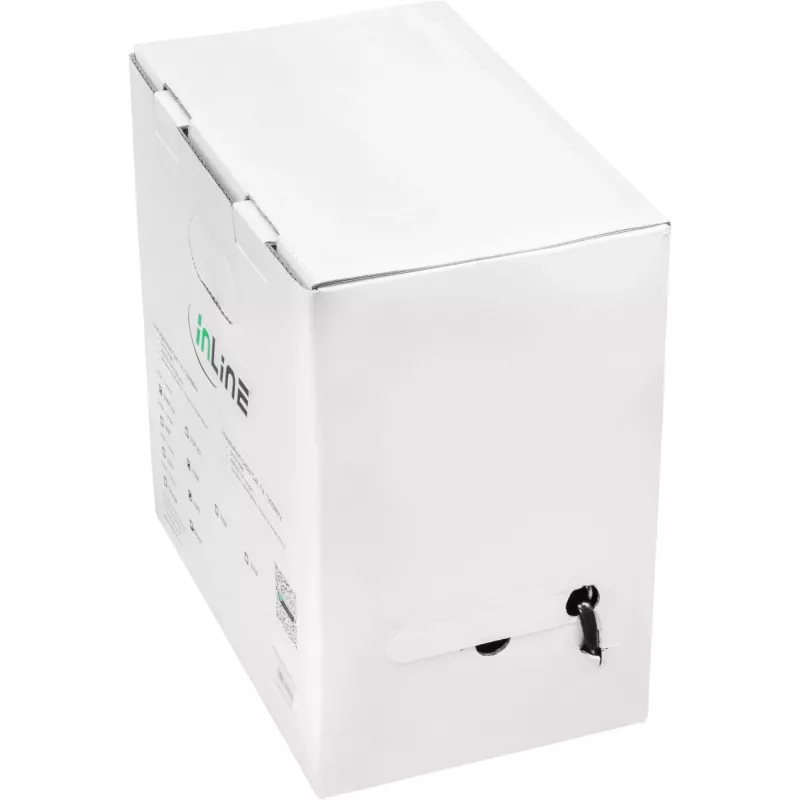

The InLine Outdoor Install. Cable S/FTP PiMF Cat.7a AWG 23 Copper 1200 MHz PE 500m is supplied in a drum box that holds a plastic roller fixed inside a reinforced cardboard carton. This packaging enables easy dispensing of the required cable length, protects the cable from dirt and mechanical damage during transport and storage, and is light enough for standard parcel shipping.

Advantages

The drum-box reduces handling time on site by allowing the cable to be pulled off the reel without additional tools and lowers costs for small cable runs. The packaging is stackable and lightweight, preventing pollution and damage thanks to the protective cardboard and reducing average costs for small pieces of cable.

Suitable for

• Outdoor and indoor structured cabling installations
• High-speed network backbones supporting up to 10 Gbit/s
• Environments requiring strong shielding against electromagnetic interference
• Long runs where a 500 m drum and printed remaining meters simplify installation

Key specifications

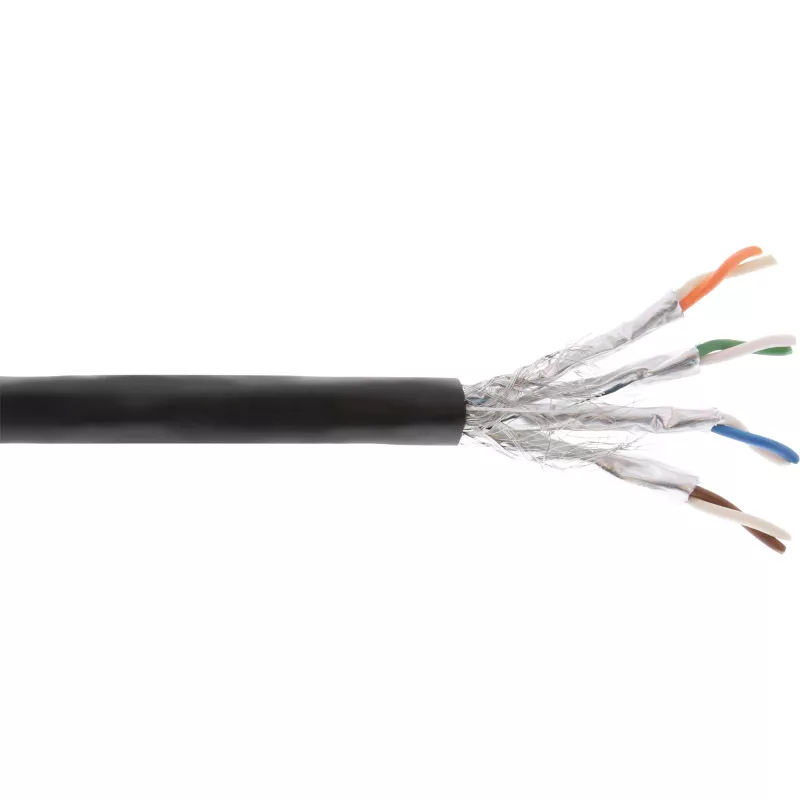

• Cable type: S/FTP (overall braid + pairs in metal foil) PiMF Cat.7a installation cable
• Conductor: full copper, 4x2x AWG23/1
• Frequency: up to 1200 MHz
• Data rate: suitable for up to 10 GBit/s
• Impedance: 100 Ω; DC resistance: max 87 Ω/km
• Sheath: LDPE, UV resistant, color: black
• Cable diameter: approx. 8.2 mm
• Length: 500 m (drum box) with printed remaining meters
• Standards: ISO/IEC 11801, IEC 61156-5
• Installation temperature: 0 to 50 °C; Operating temperature: -20 to 60 °C

How to use

Place the drum box on a stable surface or dispenser and pull the cable from the plastic roller to the required length. Cut the cable and terminate according to the chosen connector and installation standard. The printed remaining meter markings on the cable help measure and manage leftover length. Observe recommended installation temperature ranges and avoid excessive bending or tensile force during pulling.

Recommendations

For outdoor runs, ensure proper UV-protected routing and secure the cable to avoid prolonged mechanical stress. When installing in mixed indoor/outdoor conduits, confirm compatibility with local building codes and use appropriate termination accessories rated for Cat.7a.
