Cable de montaje en panel USB 2.0 Type-C conector hembra a conector hembra Delock, negro, 0,3 m, 480 Mbps, doble apantallado 91926

With a 480 Mbps data transfer rate and a reversible USB Type-C connector on both ends, this Delock panel mount cable brings USB 2.0 connectivity right to the edge of your enclosure or desk. The 0.3 m cable is double shielded and built with copper conductors to keep signal interference at bay, while the black housing and panel mount design blend into professional setups.

Overview

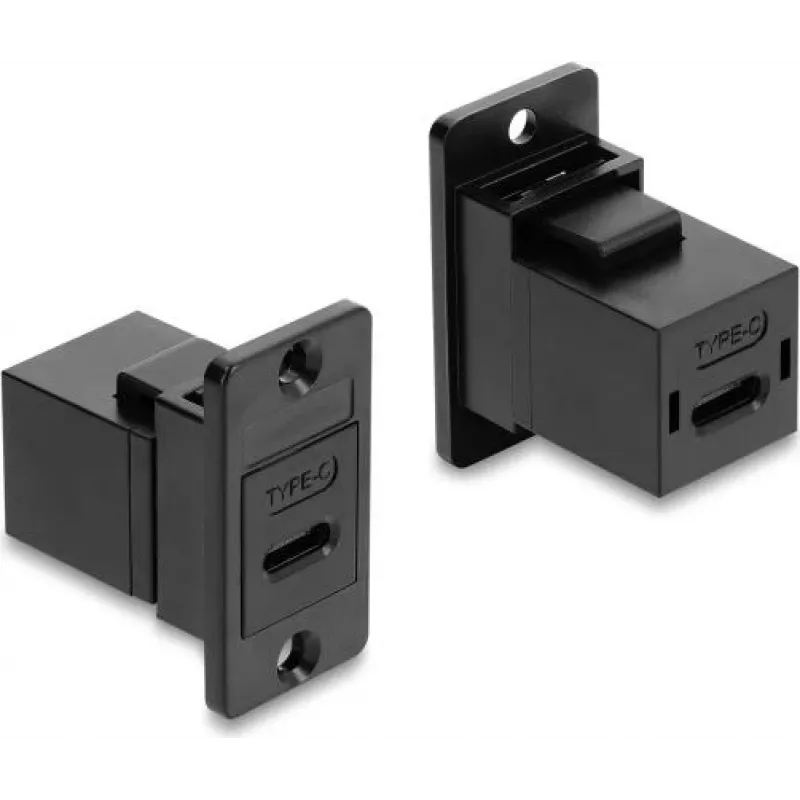

The Delock 91926 is a panel mount USB 2.0 Type-C female to female cable. It allows you to extend a USB-C connection through a panel, wall, or enclosure. The cable is 0.3 m long and features a double shielded design with copper conductors for reliable data transfer up to 480 Mbps. The panel mount connector has a cutout of 10.0 x 2.5 mm and mounting holes spaced 27.5 mm apart, with a hole diameter of 3.0 mm. Two M3 screws are included for installation.

What stands out

• Reversible USB Type-C connectors on both ends – no more fumbling with orientation
• Double shielded cable with copper conductors for stable signal integrity
• Panel mount design with included M3 screws for secure installation
• USB 2.0 speed up to 480 Mbps – perfect for keyboards, mice, and other peripherals
• Compact 0.3 m length ideal for panel-to-device connections

Technical details

• Connector 1: USB Type-C female (panel mount)
• Connector 2: USB Type-C female
• USB Standard: USB 2.0
• Data Transfer Rate: up to 480 Mbps
• Cable Length: 0.3 m
• Colour: Black
• Mounting Type: Panel Mount
• Mounting Hole Distance: 27.5 mm
• Mounting Hole Diameter: 3.0 mm
• Panel Cutout Dimensions: 10.0 x 2.5 mm
• Included Screws: 2 x M3
• Conductor Material: Copper
• Cable Shielding: Double shielded
• Cable Diameter: approx. 4.5 mm
• Power Delivery Support: No (USB 2.0 data only)

Our verdict

A solid choice for anyone needing to route USB-C through a panel. The double shielding and copper conductors ensure dependable USB 2.0 performance, and the included screws make installation straightforward.
