Cable de parcheo de fibra óptica ACT 1 m LSZH multimodo 62,5/125 OM1 dúplex con conectores LC

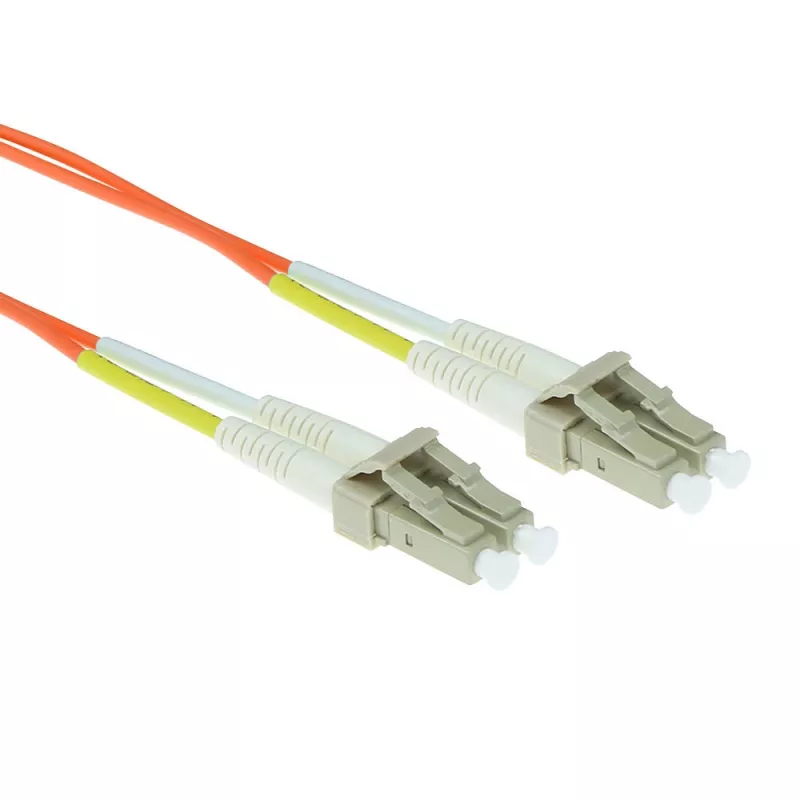

The ACT Fiber Patch Cable Duplex LC 1m LSZH Multimode 62.5/125 OM1 is a 1‑meter duplex multimode optical patch cable with LC‑to‑LC connectors, designed for indoor network connections. The cable uses OM1 62.5/125 µm multimode fiber and an LSZH jacket to reduce smoke and toxic gas emission in case of fire, making it suitable for installations where low smoke and halogen‑free material is required.

Advantages

This duplex LC patch cable provides reliable multimode transmission with 62.5/125 OM1 fiber and standardized LC connectors for compact, keyed connections. The LSZH jacket improves safety in enclosed spaces, while the 1 m length offers tidy connections between equipment located close to each other. The cable supports typical multimode networking requirements with minimal insertion loss when properly installed.

Suitable for

• Short‑range multimode connections in data centers and server rooms
• Patch panels and fiber optic switches with LC ports
• Indoor installations where LSZH material is required

Key specifications

• Connector type: LC–LC duplex
• Fiber type: Multimode OM1 (62.5/125 µm)
• Length: 1 m
• Jacket: LSZH (Low Smoke Zero Halogen)
• Brand: ACT
• MPN: RL9001
• EAN: 8716065171075

How to use

Ensure both endpoints (patch panel, transceiver or switch) have LC ports and are powered down if recommended by the equipment manufacturer. Align the LC connectors and insert them until they click into place; avoid bending the fiber beyond its minimum bend radius. Route the cable to avoid tight bends, sharp edges and mechanical stress. For removal, press the LC latch and pull straight out.

Recommendations

Store and install the cable in clean environments to prevent contamination of connector endfaces; inspect and clean connectors with appropriate fiber cleaning tools before mating. Do not exceed the specified bend radius and avoid tensile stress to maintain optimal optical performance.
