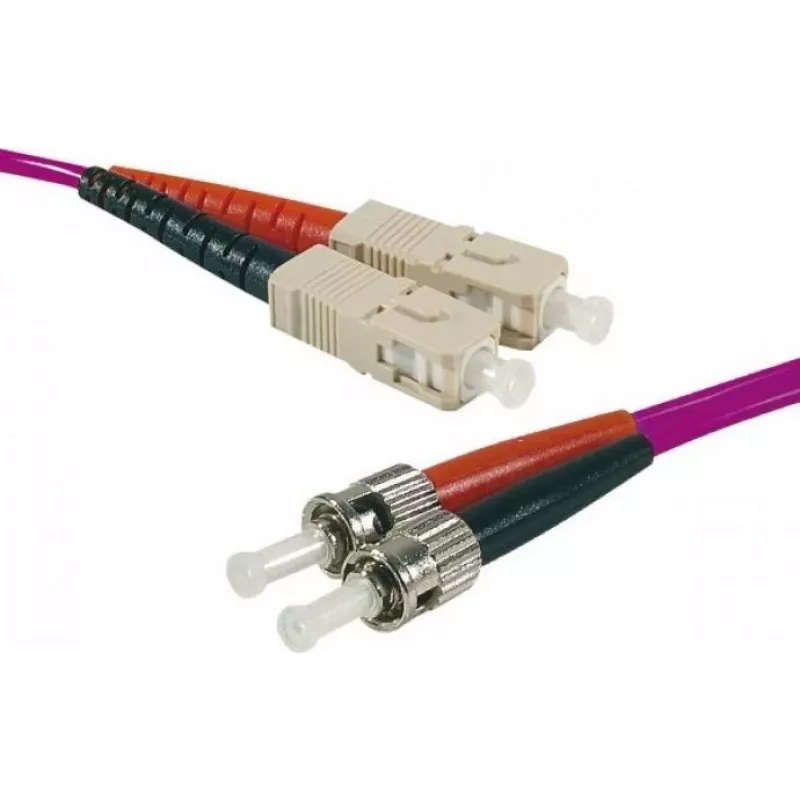

Cable de parcheo de fibra óptica EXERTIS CONNECT OM4, 50/125 µm, 2x ST a SC dúplex, violeta erika, 1 m, UPC 392821

High-speed data networks demand reliable, low-loss connections. This OM4 multimode fibre patch cable delivers exactly that, linking equipment with ST and SC Duplex interfaces over a 1-metre span. Its erika-violet jacket makes identification quick in dense patching fields, while UPC polishing on both ends ensures a stable physical contact for consistent performance.

Who is it for

Network technicians and data centre managers who need a dependable, standards-compliant patch lead for 10G, 40G and 100G Ethernet over short distances. It suits installations where ST-to-SC Duplex conversion is required without adapters.

Main features

• OM4 laser-optimised multimode fibre, 50/125 µm core/cladding
• Duplex configuration: two ST connectors on one end, one SC Duplex connector on the other
• UPC (Ultra Physical Contact) polish on all connectors for low back reflection
• Erika-violet LSZH jacket for easy identification and safety
• 1.0 m length, ideal for patching between adjacent panels or devices
• Meets TIA/EIA-568-C.3 performance requirements

Specifications

• Cable type: Fibre optic patch cable
• Fibre type: OM4 multimode
• Core/cladding diameter: 50/125 µm
• Connector 1: 2x ST
• Connector 2: SC Duplex
• Connector polish: UPC
• Cable length: 1.0 m
• Jacket colour: Erika-violet
• Jacket material: LSZH
• Attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/km @ 1300 nm
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm

Tips

For best results, keep bend radius above 30 mm and avoid pulling on connectors. Clean both ends before mating to maintain insertion loss within budget.
