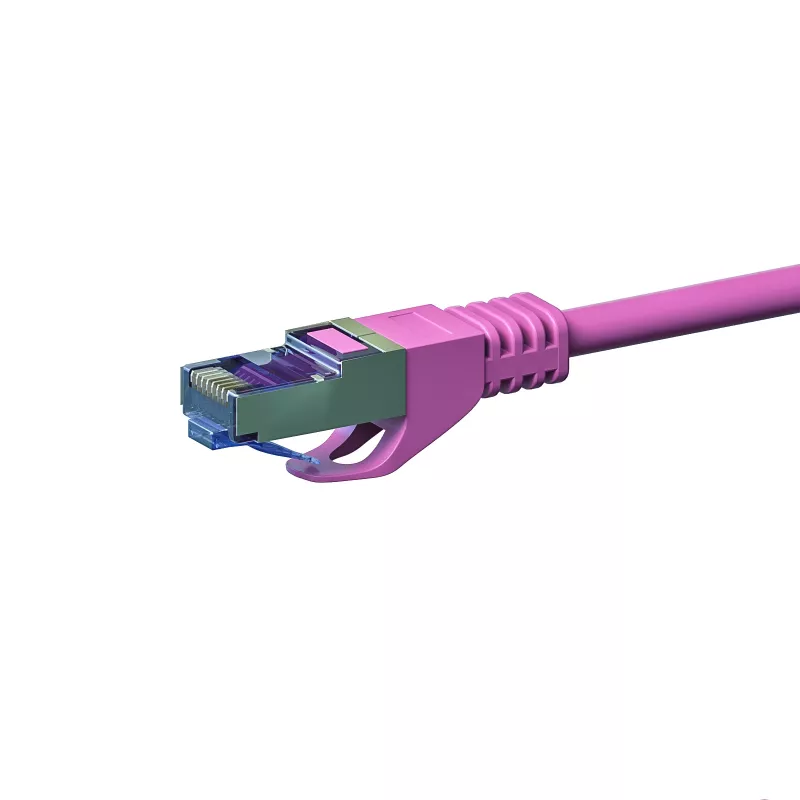

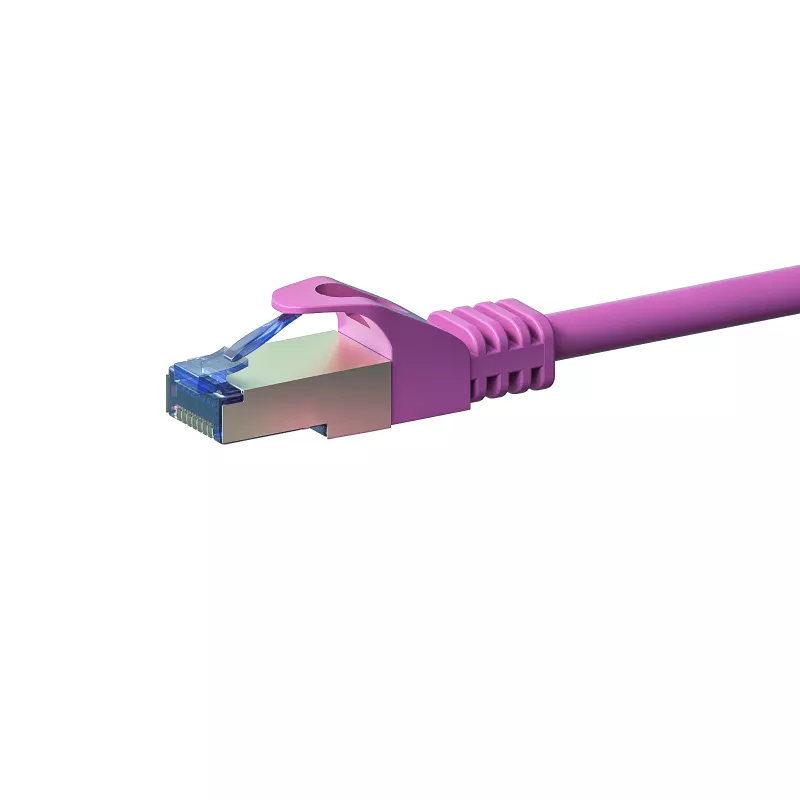

Cable de parcheo de red DSIT CAT 6a S/FTP LSOH, 15 m, rosa

High-performance CAT 6a network patch cable engineered for 10 Gigabit Ethernet over 15 meters. Its S/FTP shielding and LSOH jacket ensure reliable, low-smoke, halogen-free operation in demanding indoor environments.

Advantages

Supports 10GBASE-T up to 500 MHz bandwidth, with each twisted pair individually foil-shielded and an overall braid to virtually eliminate crosstalk and EMI. The stranded 26 AWG copper conductors provide flexibility for easy routing, while PoE/PoE+/UPoE compatibility allows simultaneous data and power delivery. The pink LSOH jacket is flame-retardant and emits low smoke and zero halogens, enhancing safety in confined spaces.

Suitable for

• 10 Gigabit Ethernet links in data centers and server rooms
• High-density office cabling where PoE devices (IP cameras, access points) are used
• Installations requiring LSOH compliance (public buildings, transport, industrial)
• Color-coded network segmentation in structured cabling systems

Key specifications

• Category: CAT 6a (TIA/EIA-568B)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 15 m
• Colour: Pink
• Jacket: LSOH (Low Smoke Zero Halogen)
• Data rate: 10 Gbps
• Bandwidth: 500 MHz
• Connectors: RJ45 male to RJ45 male
• Conductor: 26 AWG stranded copper, 4 pairs
• PoE support: PoE, PoE+, UPoE
• Outer diameter: approx. 6.0–6.5 mm
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For best performance, avoid sharp bends and maintain the minimum bend radius. Pair with CAT 6a shielded patch panels and keystone jacks to preserve end-to-end shielding. Use in well-ventilated areas to keep within operating temperature limits.
