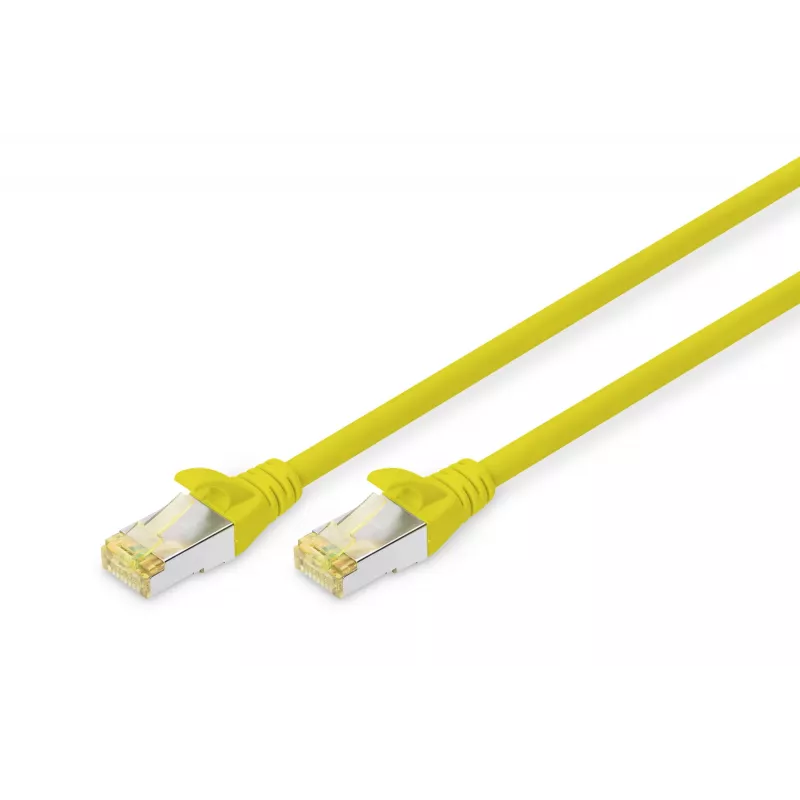

Cable de parcheo Digitus CAT 6A S/FTP DK-1644-A-0025/Y 0,25 m Amarillo

Future-oriented standards and high-end quality for your network: DIGITUS Category 6A Class EA patch cords provide performance tested up to 500 MHz and are designed to meet ISO/IEC 11801 and DIN EN 50173 Category 6A specifications. The cable uses copper conductors and a transparent yellow plug with metal shielding for easy identification of Category 6A. The sheath is LSZH (Low Smoke Zero Halogen), offering improved fire behaviour and low smoke emissions, and the cords are PoE+ ready.

Advantages

The patch cords guarantee compliance with ISO & EN channel specifications and deliver optimized performance including NEXT characteristics. Molded boots include kink protection, strain relief and latch protection to reduce risk of connector damage. Transparent yellow connectors with metal shielding enable quick visual identification of Category 6A cables.

Key specifications

• Standard: ISO/IEC 11801, DIN EN 50173 Category 6A (Class EA)
• Frequency range: up to 500 MHz
• Conductor material: Copper (Cu)
• Sheath: LSZH (Low Smoke Zero Halogen)
• Connector: transparent yellow plug with metal shielding
• PoE: PoE+ ready

How to use

Insert the RJ45 plug into the network device socket until the latch clicks. Ensure the cable is routed without tight bends and the molded boot with kink protection is positioned near the connector to prevent strain. Use the latch protection to avoid damage when unplugging. Verify network connection and PoE+ power delivery as required.

Recommendations

Store and install the cables away from heat sources and sharp edges, maintain bend radii recommended by the manufacturer, and verify channel compliance by testing after installation to ensure the full 500 MHz performance.
