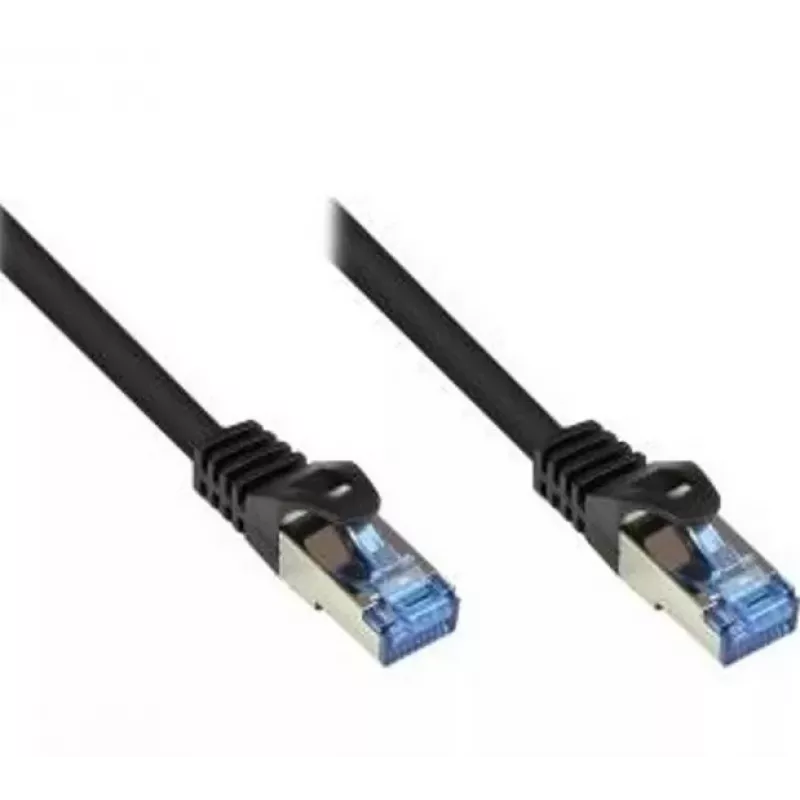

Cable de parcheo ESTARS Dätwyler Uninet 7702 FRNC Cat 6A S/STP con Hirose TM31 RJ45, negro, 1,5 m (ES1.7.0150BK)

This patch cable pairs Dätwyler's Uninet 7702 FRNC Cat 6A cable with Hirose TM31 RJ45 connectors, delivering a robust 10 Gigabit link in a compact 1.5 m length. The black FRNC jacket is halogen-free, making it suitable for areas where low smoke and non-corrosive emissions are required.

Highlights

• S/STP shielding: each pair is foil-wrapped and the overall cable is braided, providing excellent protection against alien crosstalk.
• Cat 6A performance: supports 10GBASE-T up to 500 MHz bandwidth.
• Hirose TM31 connectors: precision RJ45 plugs designed for secure and durable connections.
• FRNC jacket: flame retardant, non-corrosive, and halogen-free for enhanced safety.
• PoE ready: supports PoE, PoE+, and 4PPoE up to Type 4.

In daily use

The 1.5 m length is ideal for patching between switches and patch panels or connecting devices in close proximity. Stranded copper conductors provide flexibility for frequent re-routing without performance loss. The cable meets TIA/EIA-568-B.2-10 wiring standards, ensuring compatibility with standard RJ45 equipment.

Full specifications

• Cable category: Cat 6A
• Shielding: S/STP (screened/foiled twisted pair)
• Length: 1.5 m
• Colour: black
• Connector type: RJ45 (Hirose TM31) on both ends
• Jacket material: FRNC (flame retardant non-corrosive, halogen-free)
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: 500 MHz
• Conductor material: copper
• Wiring standard: TIA/EIA-568-B.2-10
• PoE support: PoE, PoE+, 4PPoE (Type 4)
• Number of pairs: 4
• Impedance: 100 Ohm
• Cable construction: stranded

Final note

For high-density 10G environments where halogen-free cabling is required, this Dätwyler patch cable offers reliable performance in a short, flexible length.
